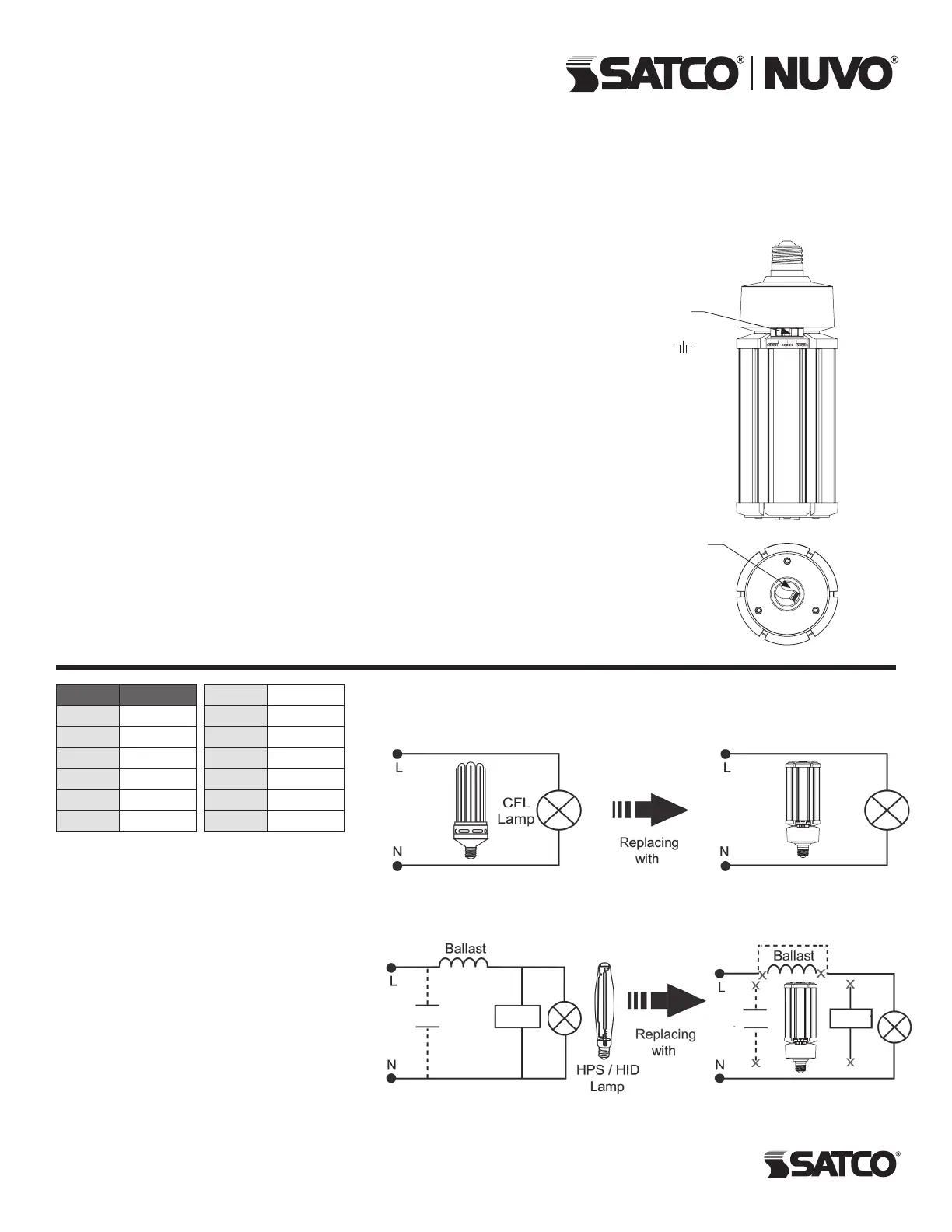

HI-PRO LED CCT & WATTAGE

SELECTABLE LAMPS

Satco Products, Inc.

Bre nt wo o d, NY 11717

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

Wattage

selection

switch

Fig. A

Color

temperature

selection

switch

WARNING: Risk of Fire or Electric Shock

• Luminaire wiring and electrical parts may be damaged when drilling for

installation of LED retrot. Check for enclosed wiring and components.

• LED Retrot installation requires knowledge of luminaires electrical systems.

If not qualied, do not attempt installation. Contact a qualied electrician.

• Install this lamp only in luminaires that have the construction features and

dimensions shown in the photographs and/or drawings and where the input

rating of the retrot does not exceed the input rating of the luminaire.

• Do not make or alter any open holes in an enclosure of wiring or electrical

components during kit installation.

• To prevent wiring damage or abrasion, do not expose wiring to edges of

sheet metal or other sharp objects.

• Disable all power to the Luminaire. The lamp holder must be disconnected

from the wiring to the ballast, capacitor, or ignitor. Verify that voltage does

not exceed 277V AC. Please see “Wiring Diagram”.

• Failure to follow instructions can result in a damaged product

and will void warranty. It could also result in an electric shock or re.

IMPORTANT:

• Added weight of the device may cause instability of a free-standing portable

luminaire.

• Installers should not disconnect existing wires from lampholder terminals to

make new connections at lampholder terminals. Instead installers should cut

existing lampholder leads away from the lampholder and make new electrical

connections to lampholder lead wires by employing applicable connectors.

INSTALLATION

STEP 1: Turn off the power before installation.

STEP 2: Remove the old Ballast, Capacitor

and Ignitor (if existing).

STEP 3: Make sure Alternating Current Wires

connect to the socket directly. Reattach or

replace ground lead (if necessary).

STEP 4: Select color temperature and

wattage on lamp (Figure A). NOTE: The

lamp is preset to the highest wattage and

color temperature.

STEP 5: Screw the LED lamp into the

corresponding socket. Attach retrot label

to luminaire.

NOTE: For 100-277 Volts Applications with

two hot leads, connect the second hot lead

to terminal N (L).

Models: S23140, S23141, S23142, S23143, S23144, S23145,

S23146, S23147, S23148, S23149, S23150, S23151, S23152

4000K

3000K 5000K

Color Temperature

Replacing CFL Lamp

WIRING DIAGRAM

HPS/HID Wiring Diagram Hi–Pro Wiring Diagram

Replacing HPS/HID Lamp

(L1) (L1)

100-277V

CFL Wiring Diagram Hi–Pro Wiring Diagram

100-277V

(L1) (L1)

100-277V

Capacitor

Capacitor Ignitor

Ignitor

100-277V

45W

36W

27W

Item # Watts

S23140 45/36/27

S23141 45/36/27

S23142 54/45/36

S23143 80/63/54

S23144 100/80/63

S23145 120/100/80

S23146 18/16/12

S2314 7 22/18/16

S23148 27/22 /18

S23149 36/27/18

S23150 63/54/45

S23151 27/22 /18

S23152 36/27/18
