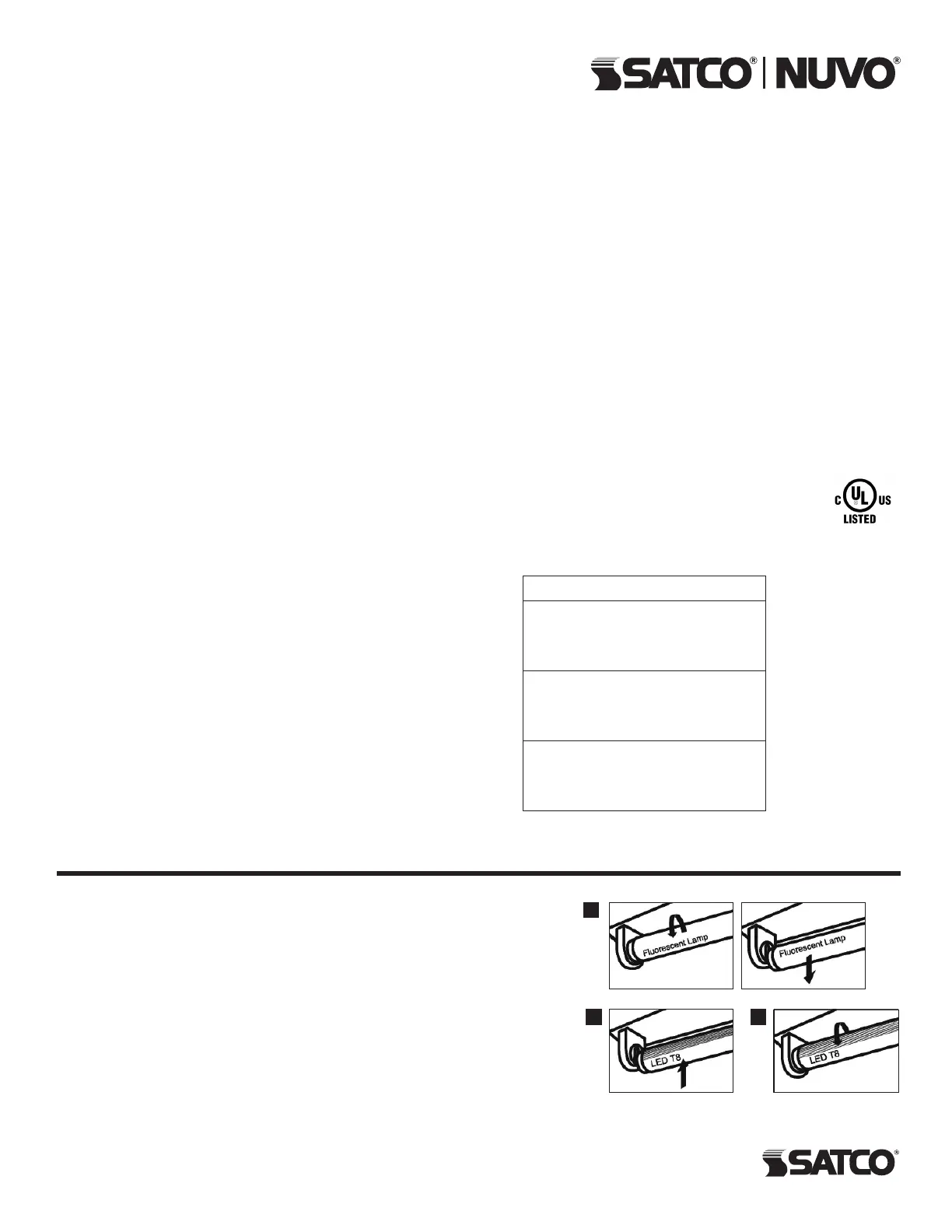

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

4' T8 LED TYPE A

DIRECT REPLACEMENT

Models: S11740R1, S11741R1, S11742R1, S11743R1, S49934R1, S49935R1,

S49936R1, S49937R1, S49975R1, S49976R1, S49977R1, S49978R1

Satco Products, Inc.

WARNING: Risk of re or electric shock.

Disconnect power before installation.

• Product must be installed in accordance with the national

electrical code or your local electrical code. If you are not

familiar with these codes and requirements, contact a

qualied electrician.

• Check the lamp before installation. If there is any damage

DO NOT INSTALL.

• LED T8 lamp to be operated with qualied electronic ballast,

emergency ballast and dimming ballast. Dimmable only with

compatible dimmable ballasts Check the compatibility list

before installation. Visit www.Satco.com for compatibility list.

• Use only in place of uorescent lamps specied on label.

• Suitable for damp locations.

• DO NOT INSTALL this lamp in a pre-heat luminaire.

• This lamp only operates on electronic ballasts. If lamp does

not light when the luminaire is energized, remove lamp

from luminaire and contract lamp manufacturer or qualied

electrician.

• If the lamp or luminaire exhibits undesirable operation

(buzzing, ickering etc.), immediately turn off power, remove

lamp from luminaire and contact manufacturer.

• To prevent wiring damage or abrasion, do not expose wiring

to edges of sheet metal or other sharp objects.

• Do not make or alter any open holes in an enclosure

of wiring or electrical components during installation.

• Installers should not disconnect the existing wire from lamp

holder terminals to make new connections at lamp holder

terminals. Instead installers should cut existing lamp holder

leads away from the lamp holder and make new electrical

connections to lamp holder lead wires by employing

applicable connectors.

• Check the existing wiring for damage before installing.

DO NOT INSTALL if existing wires are damaged.

• Suitable for use in enclosed luminaries, not vapor tight.

• Disconnect lamp from power supply before any maintenance.

• Clean luminaire with dry cloth.

• Do not clean the lamp with corrosive chemicals.

• To ensure proper lamp performance, temperature of the

Tc point should not exceed ensure 131ºF after a min. of

2 hours of use.

• This device complies with part 18 of the FCC Rules.This

product may cause interference to radio equipment and

should not be installed near maritime safety communications

equipment or other critical navigation or communication

equipment operating between 0.45-30 MHZ.

• TYPE A LAMP - Intended for direct substitution of a

uorescent lamp and operating from the integral ballast

without any modications to the uorescent luminaire.

The units covered by this report were

intended to retrot surface mount, Type IC

or non-IC recessed mount Listed uorescent

luminaires that use maximum 4 tubular

lamps, the minimum lamp compartment

dimensions are tabulated below.

INSTALLATION INSTRUCTIONS

STEP 1: Turn power OFF.

STEP 2: Remove lens or diffuser (if applicable).

STEP 3: Remove existing uorescent lamps from the luminaire. See Figure A.

STEP 4: Bring LED lamp to luminaire and insert lamp pins into luminaire lamp

holders. See Figure B.

STEP 5: Rotate LED lamp until lamp locks in place. Ensure that the LED lamp

front points away from the back of the luminaire.

See Figure C.

NOTE: Install LED T8 replacement lamp one for each uorescent lamp removed.

STEP 6: Place lens or diffuser back in place (if applicable).

STEP 7: Turn power ON.

B C

Item Number–Description

S11740R1 9.5/T8/LED/48-830/DR

S11741R1 9.5/T8/LED/48-835/DR

S11742R1 9.5/T8/LED/48-840/DR

S11743R1 9.5/T8/LED/48-850/DR

S49934R1 11/T8/LED/48-830/DR

S49935R1 11/T8/LED/48-835/DR

S49936R1 11/T8/LED/48-840/DR

S49937R1 11/T8/LED/48-850/DR

S49975R1 14/T8/LED/48-830/DR

S49976R1 14/T8/LED/48-835/DR

S49977R1 14/T8/LED/48-840/DR

S49978R1 14/T8/LED/48-850/DR
