MAGENTA

DIGITAL GLASS-BREAK DETECTOR

magenta_en 03/18

The MAGENTA detector enables detection of plate, tempered or laminated glass breaking.

This manual applies to the detector with electronics version 1.1 (or newer).

1. Features

 Advanced two-path sound analysis.

 Adjustable detection sensitivity.

 Supply voltage supervision.

 LED indicator.

 Tamper protection against cover removal and tearing enclosure from the wall.

2. Description

Glass-break detection

The detector will report an alarm when it detects a low frequency sound (impact) followed by

a high frequency sound (glass break) in less than 4 seconds. The alarm is signaled by the

alarm output for 2 seconds.

Supply voltage supervision

The detector will report a trouble when the supply voltage drops

below 9 V (±5%) for more than 2 seconds. The trouble results in

turning on the alarm output. The alarm output remains on as

long as the trouble exists.

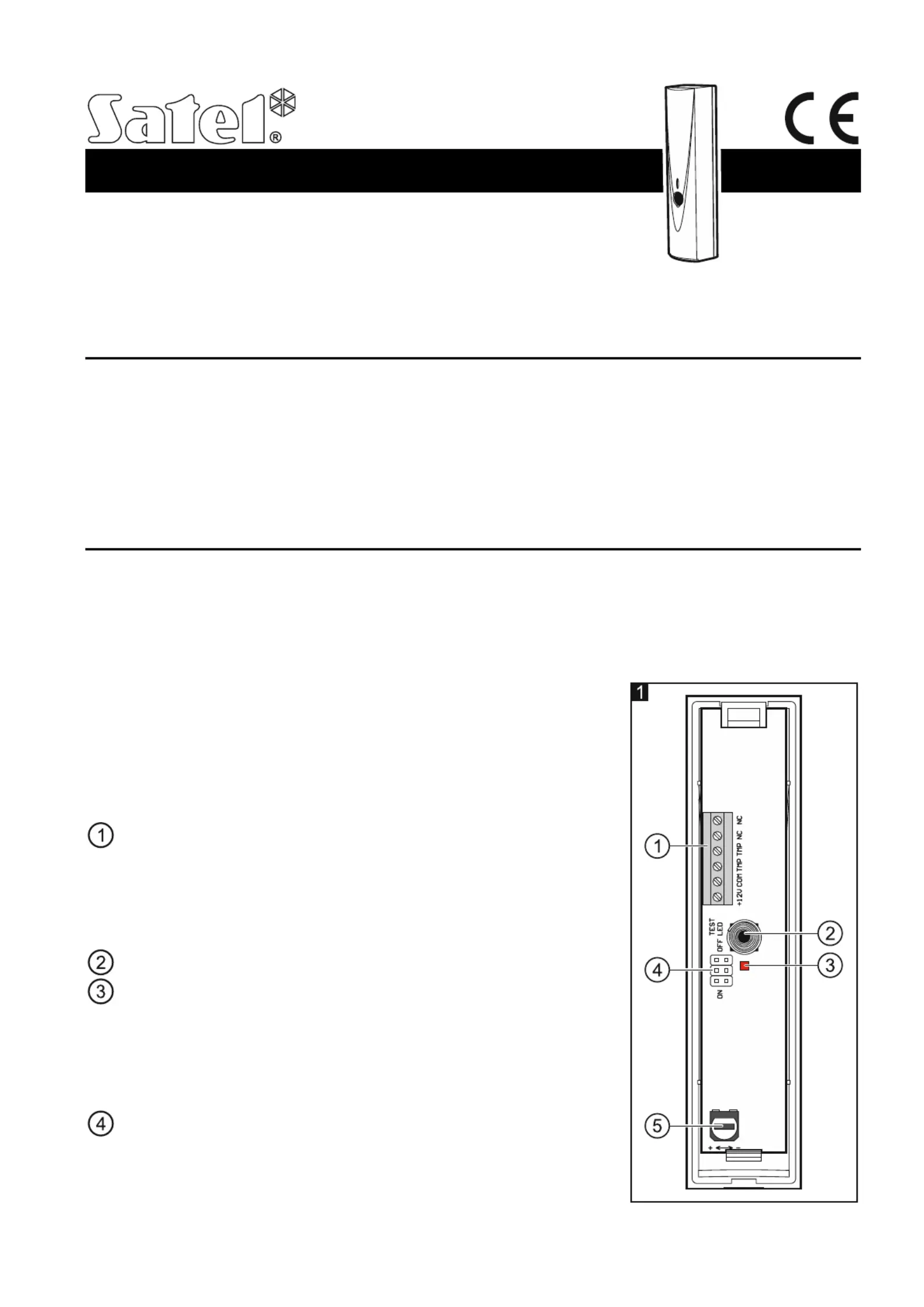

Electronics board

terminal block:

+12V - power input,

COM - common ground,

TMP - tamper output (NC),

NC - alarm output (NC relay).

tamper contact.

red color LED to indicate:

 detection of low-frequency sound – ON for 0.5 seconds,

 alarm – ON for 2 seconds,

 test mode – short flash every 3 seconds,

 low supply voltage – ON.

detector configuration pins:

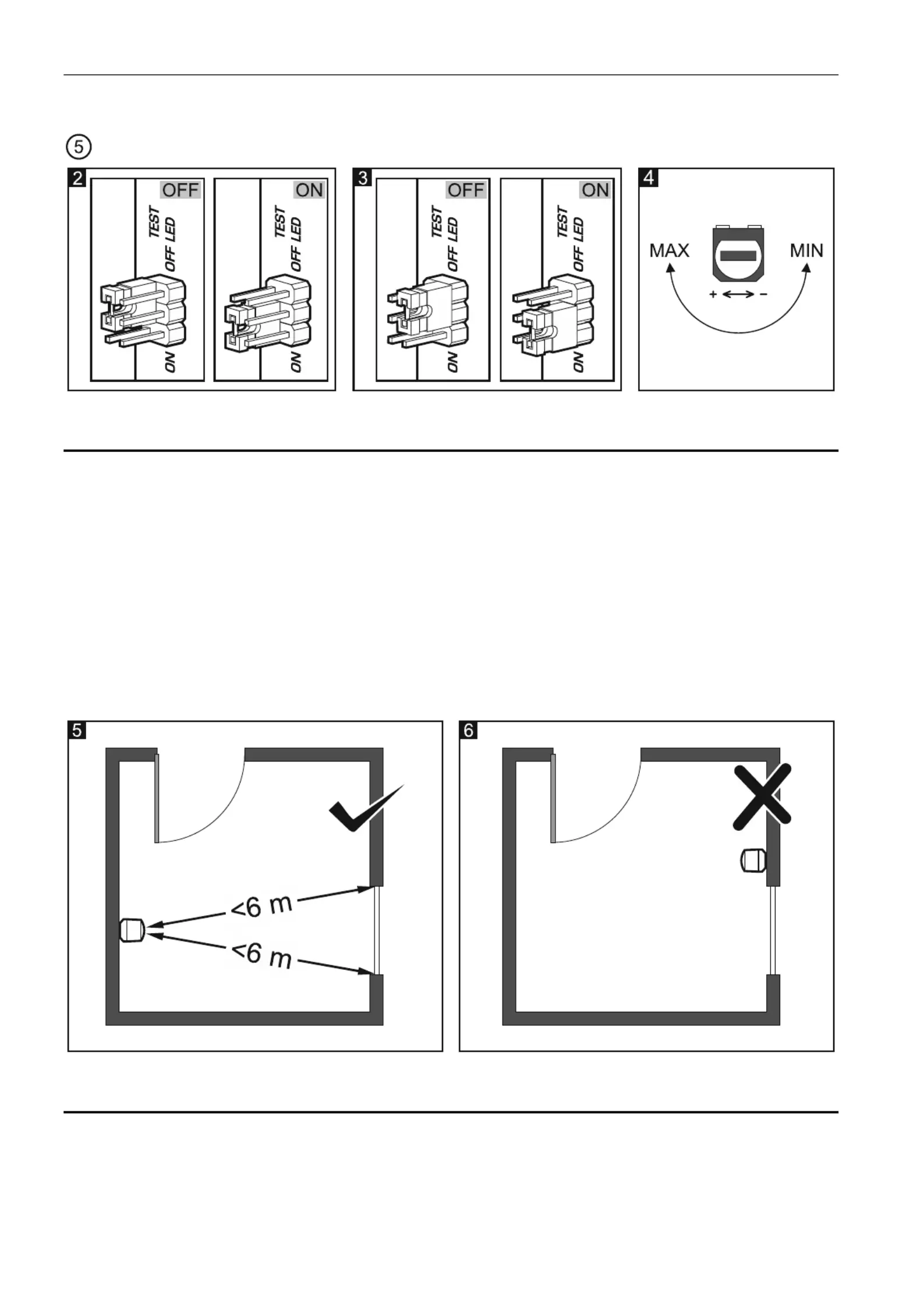

TEST – enabling/disabling the test mode. In the test mode,

the detector reports an alarm when it detects a high

frequency sound (glass break sound). The test mode is

enabled when the jumper is set in ON position (Fig. 2).

2 MAGENTA SATEL

LED – enabling/disabling the LED indicator. The LED indicator is enabled when the

jumper is set in ON position (Fig. 3).

potentiometer for the adjustment of detection sensitivity (Fig. 4).

3. Selecting a mounting location

 The detector is designed for indoor installation.

 The detector microphone should be directed towards the protected glass, so the best

place to mount the detector is the wall opposite the protected glass.

 The distance between the detector and the protected glass must not exceed the detection

range (6 m).

 There must be no objects between the detector and the glass.

 The detection range depends on the room acoustics. The shades, curtains, furniture

upholstery, acoustic tiles, etc. absorb the sound and adversely affect the detector

operating range.

 Do not mount the detector on the same wall as the protected glass.

4. Range test

Check that the detector located in the selected installation location can detect the glass-

break. A temporary 12 V DC power supply will be needed for the test.

1. Open the detector enclosure (Fig. 7).

2. Make an opening for the wires in the enclosure base.
