G Quick Start Manual 88

SD- -014 EN V01

Note

1. Do not fix the device to any surface which is a heat source to avoid over heating

2. Do not cover the surface or ventilation grills of the device to avoid over heating

1. Verify the package contents

Please verify the package contents against the List Below

1. G88 Controller x1

2. Power Cable x1

3. Software Disk x1

4. Serial Cable x1

5. Network Cable x1

6. Remote Contr ol x1

2. Set up the G88

I. Connect the power cable to the unit and power it up

II. Connect the outputs to the screens of the video wall

III. Connect all the video sources to the inputs of the devices

Note: G88 remembers the settings used on the device before power off. The default setting for the new unit is 2x4

video wall with across the 8 screens. All outputs are set at resolution of 1920 x 1080@60. input 1

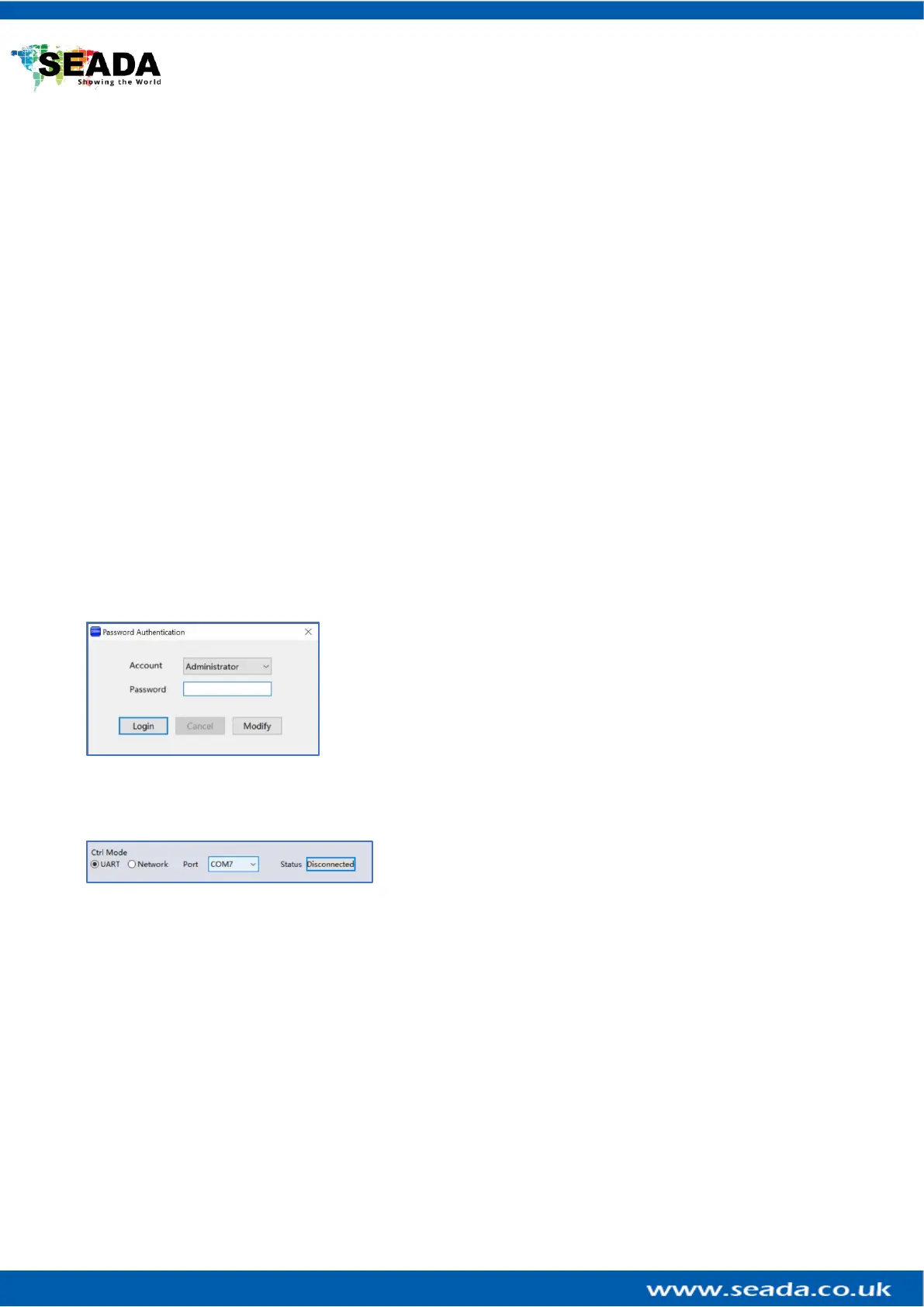

3. Run the software on control PC

Users can run the G88H.exe software directly without installation. Software is on the disk in the package or you can

download it from the SEADA website. Double click the G88H software to get the Dialog box as below

Default password for Administrator:111111

Default password for User: 000000

Type in the password and log in

4. Connect through Serial Port

Connect the G88 with a serial cable to the control PC (cable included in

the package)

If the software was connected via UART (RS232) last time, software will connect to the G88 automatically vis RS232. If

it was used at Network last time error message will be shown on screen and users need to set up , a ‘Network Timeout’

as below for RS232 connection in the software

• Choose ‘ ’ instead of ‘ ’UART Network

• Select the from the dropdown menu COM port Port

• Press button to connect ‘Disconnected’

5. Connect through Network

The default IP address for G88 controller is Users need to change the IP address of the control PC to 192.168.0.247,

static TCP/IPv4 Ethernet Properties IP address and the same network segment as the G88 at in

 IP address: any address between and except the address which has been taken by the 192.168.0.2 192.168.0.254

G88

 Subnet mask: Default Gateway: 255.255.255.0, 192.168.0.1

G Quick Start Manual 88

SD- -014 EN V01

Connect the G88 with a CAT cable to the control PC

(cable included in the package)

If the software was connected via Network last time,

software will connect to the G88 automatically via

network. If it was used at serial port Please last time, a ‘

select COM port’ error message will be shown on screen

and users need to set up as below for Network connection in the software

• Choose ‘ ’ instead of ‘ ’Network UART

• Press button to find the G88 on the network ‘Search Device’

• Highlight the device Press button to connect ‘Disconnected’

6. Set up the video wall

Once connected, G88 will load the settings used from last

time. The default setting for the new unit out of package

is 2x4 video wall with input 1 across the 8 screens. All

outputs are set at resolution of 1920 x 1080@60.

Select the and users can set up the video ‘Video Wall’ tab

wall layout in , Bezel correction in ‘VideoWall Setting’

‘Bezel Setting’ and Save/Load preset video wall layouts in

‘Layout Save/Load’

Right click on the video wall, users can use the tools in

‘Dropdown menu’ to set up the video walls.

• Screen Splicing - This combines the selected screens into

one and displays the selected input across all the splicing

screens. For example, in the setup 2x4 at left, if all of them

are spliced, then the input selected by the user will be

displayed across all the 8 screens.

(Users can create more than one video wall on G88. e.g. they

can create two 2x2 video walls instead of one 2x4 video wall

or 3, 4 independent video walls)

• Cancel Splicing –This will cancel the video wall and revert

to the matrix switching mode

• Screen Cancel Splicing – – This will cancel the very screen

and revert only that screen to the matrix switching mode to

form a Picture in Picture effect

• Input Select –This allows the user to control which input is

displayed on video wall

• Output Select –The user can control which screen should

be mapped to which output (only available in matrix mode)

• Output Type –Allows the user to adjust the type of the output (only available in matrix mode)

• Output Format – Controls the resolution of the output (only available in matrix mode)

• Sync lock –to form sync between different screens in the same video wall

This quick start manual provides basic instructions for setting up SEADA G video wall controllers. For additional 88

information about how to use the controllers, please refer to the G User Guide ( - - ), which is available 88 SD EN 015

on the CD included in this package.
