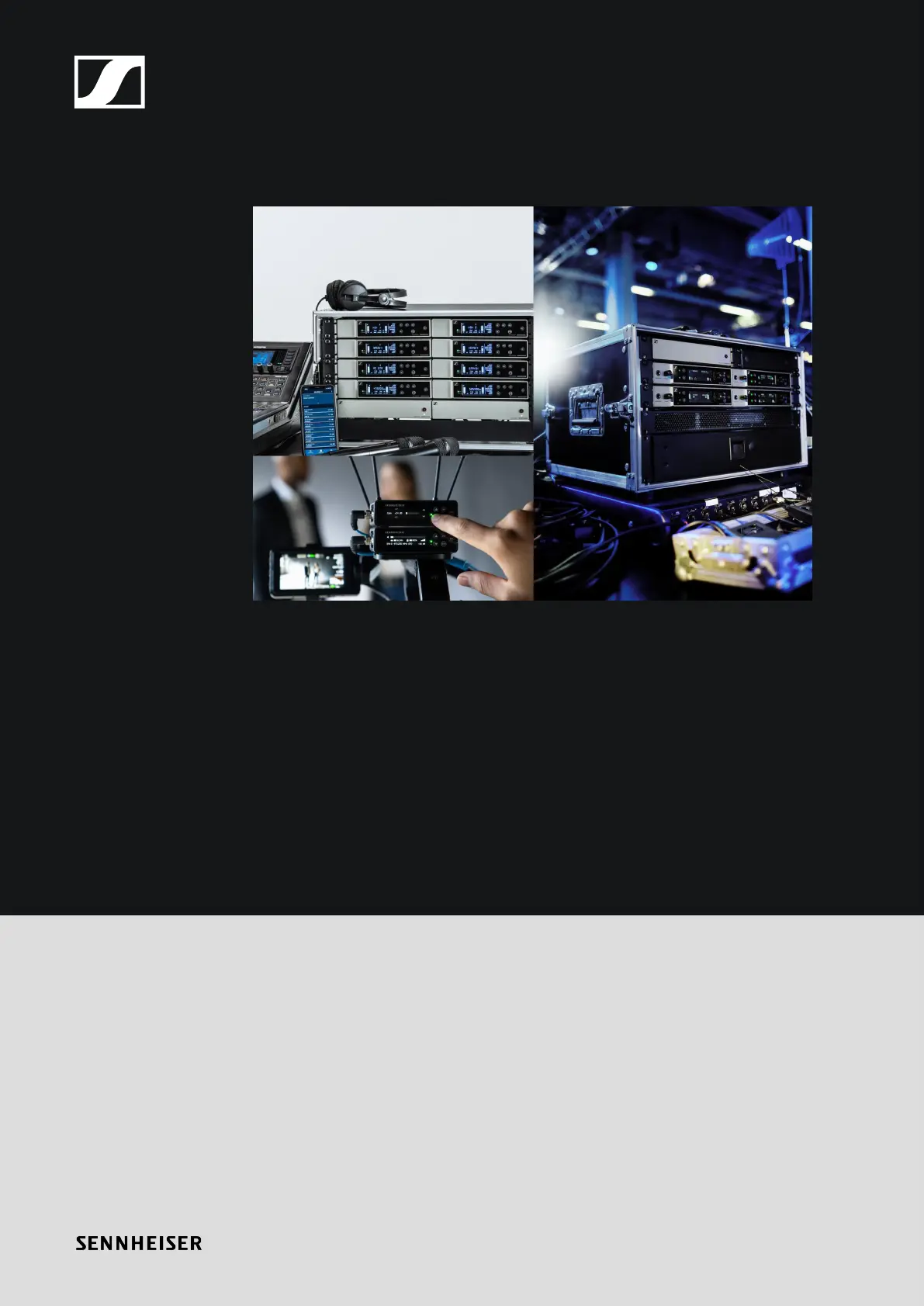

Evolution Wireless Digital

Evolution Wireless Digital v5.0 | 05/2024 | 587457

Contents

1. Preface...........................................................................................................................................10

2. Product information..................................................................................................................... 11

Products of the EW-D series.................................................................................................. 11

EW-D EM rack receiver................................................................................................... 12

EW-D SKM-S handheld transmitter............................................................................... 13

EW-D SK bodypack transmitter..................................................................................... 14

Sets available for the EW-D series........................................................................................16

EW-D ME2 SET | Lavalier Set.........................................................................................16

EW-D ME3 SET | Headmic Set.......................................................................................18

EW-D ME4 SET | Lavalier Set........................................................................................20

EW-D Cl1 SET | Instrument Set...................................................................................... 21

EW-D SK BASE SET | Base Set..................................................................................... 22

EW-D 835-S SET | Handheld Set.................................................................................. 24

EW-D SKM-S BASE SET | Base Set.............................................................................. 26

EW-D ME2/835-S SET | Combo Set............................................................................. 28

Products of the EW-DX series...............................................................................................30

EW-DX EM 2 rack receiver.............................................................................................30

EW-DX EM 2 Dante rack receiver..................................................................................32

EW-DX EM 4 Dante rack receiver................................................................................. 33

EW-DX SKM | EW-DX SKM-S handheld transmitter...................................................34

EW-DX SK | EW-DX SK 3-PIN bodypack transmitter.................................................. 36

Table stand EW-DX TS 3-pin | EW-DX TS 5-pin..........................................................38

Sets available for the EW-DX series.................................................................................... 40

EW-DX 835-S SET | Handheld Set................................................................................40

EW-DX MKE 2 SET | Lavalier Set.................................................................................. 42

EW-DX MKE 2-835-S SET | Combo Set........................................................................44

EW-DX SK-SKM-S BASE SET | Base Set......................................................................46

Products of the EW-DP series...............................................................................................48

EW-DP EK portable receiver.......................................................................................... 49

EW-DP SKP plug-on transmitter....................................................................................50

Sets available for the EW-DP series..................................................................................... 51

EW-DP ME-2 | Lavalier Set............................................................................................. 51

EW-DP ME-4 | Lavalier Set............................................................................................ 53

EW-DP 835 | Handheld Set............................................................................................ 55

Smart Assist app..................................................................................................................... 57

Produkt Specifikationer

Mærke:	Sennheiser
Kategori:	Mikrofon
Model:	EW-D ME4
Batterispænding:	1.5 V
Pakkevægt:	2800 g
Pakkedybde:	350 mm
Pakkebredde:	405 mm
Pakkehøjde:	73 mm
Batteriteknologi:	Alkaline
Driftstemperatur (T-T):	-10 - 55 °C
Lydtryksniveau (maks.):	120 dB
Harmoniseret systemkode (HS):	85181000
Mikrofontype:	Lavalier mikrofon
Batteritype:	AA
Antal understøttede batterier:	2
Indgangsspænding:	11 - 13 V
Modtager vægt:	1000 g
Trådløs rækkevidde:	1.6 m
Antenne type:	Aftagelig
Modtagertype:	Rack beslag modtager
Monteringssæt:	Ja
XLR udgående:	1
Modtager dimensioner (BxDxH):	212 x 189 x 44 mm
Tilslutning af mikrofon:	3,5 mm
Strømforsyning inkluderet:	Ja
RF-effekt:	10 mW
Antennestik type:	BNC
Mikrofon frekvenssvar:	50 - 18000 Hz
Modtagerskærm:	Ja
Transmitter type:	Kropspakke sender
Radiofrekvens (RF) interval:	1785.2 - 1799.8 MHz
Antal mikrofoner inkluderet:	1
Antal inkluderede modtagere:	1
Antal inkluderede sendere:	1
Senderdimensioner (BxDxH):	63 x 20 x 80 mm
Transmitter vægt:	120 g
Skiftende båndbredde:	56 MHz
Driftsfrekvenstype:	Ultrahøj frekvens (UHF)
6,35 mm (1/4 tommer) udgang:	1
Strømforbrug (modtager) (maks):	300 mA
Modtagere AF-frekvensgang:	20 - 20000 Hz
