Side 1/8

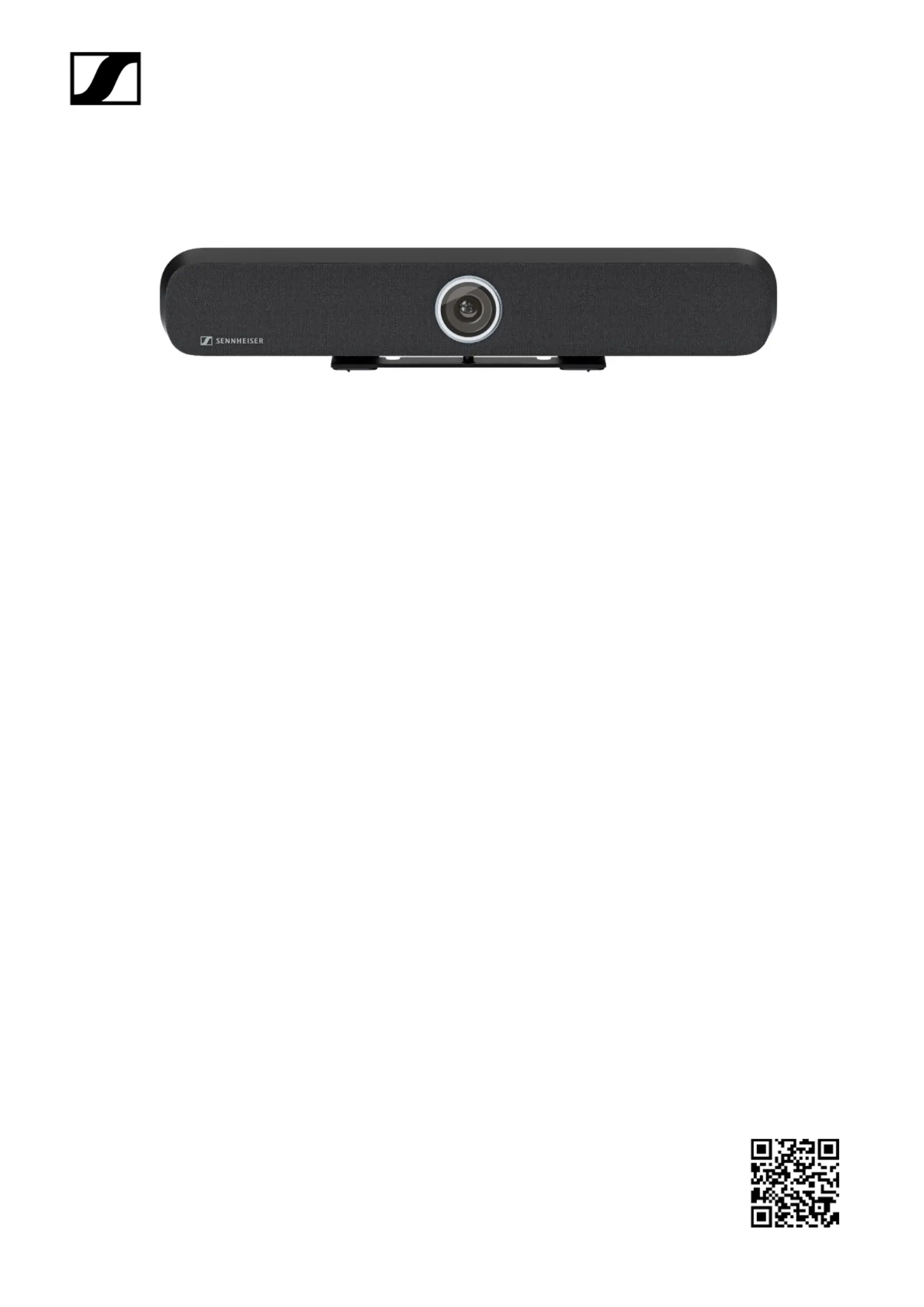

TeamConnect Bar S
All-In-One Device for Small Collaboration Rooms
1/8PRODUCT SPECIFICATION (V1.2)
DELIVERY INCLUDES
• TeamConnect Bar S
• Mounting Bracket
• Drilling Template
• Power Supply Unit + Power Cord
• Magnetic Lens Cap
• HDMI Cable
• USB-C to USB-A Cable
• Screws
• Quick Guide
• Safety Guide with manufacturer‘s declarations
ACCESSORIES
Description Art. No.
Mounting Kit 700116
VESA Mounting Kit 700118
RC TC Bar (Remote Control) 700121
Magnetic Lens Cap 700122
Power Supply 700130
USB-C to USB-A-Cabel (3 m) 700312
HDMI Cable 700120
SYSTEM REQUIREMENTS
• Windows: 7 or later
• macOS: 10.14 or later
• Android: 5.0 or later
• Installed DisplayLink driver on used operating system
FEATURES
• Plug and Play Device
Quick start via USB cable
• Integrated Beamforming Technology
Freedom of movement and seamless transition among
presenters
• Flexible Extensions
Using Dante for adding extension mics and/or a 2nd
external USB camera
• High Video Quality
4K Ultra HD camera equipped with advanced AI fea-
tures
• Full-Range Stereo Speakers
Natural speech and outstanding intelligibility
• Built-In DSP
Automatically optimizes room acoustics
• Multiple Mounting Options
Wall Mount, VESA Mount, Tabletop or Freestanding
• Autoframing and Person Tiling
Features to clearly see everyone in the room
• Control Management
Full remote-control access via Sennheiser Control Cockpit
• Brand Agnostic Integration
Certifications pending for 3rd party media control
systems (Barco, Crestron, Extron, Q-Sys) and platforms
(Microsoft Teams, Zoom, Tencent, etc.)
• Advanced Security Features
Encrypted control communication and password protect-
ed by default for secure content transmission
The TeamConnect Bar S is the most flexible all-in-one device for small meeting rooms and collaboration spaces. It features
4 microphones and 2 speakers to deliver Trusted Sennheiser Audio Quality to every meeting.
The TC Bar S is a true problem solver with benefits like easy setup, brand agnostic integration, easy management & control,
high video quality, security and sustainability.
CONTROL SOFTWARE
Sennheiser Control Cockpit
Kostenloser Download unter:
www.sennheiser.com/control-cockpit-software
TeamConnect Bar S
All-In-One Device for Small Collaboration Rooms
2/8PRODUCT SPECIFICATION (V1.2)
SPECIFICATIONS
General
Dimensions (L x W x H) 450 x 71 x 76 mm
Weight 1.5 kg
Operating temperature range 0 °C to 40 °C
32 °F to 104 °F
Storage temperature range -25 °C to 70 °C
-13 °F to 158 °C
Relative humidity operation 0 to 75 %, non-condensing
Relative humidity storage 0 to 95 %, non-condensing
DC IN 15 V , max. 2 A$
Max. power consumption 30 W
Voltage range PoE (PD) 42.5 – 57.0 V $
(IEEE 802.3at Type 2,
PoE+)
INTERFACES AND CONNECTIONS
1 HDMI HDMI out Connector
2 Reset Factory Reset
3 Ethernet Ethernet PoE (PSE) / RJ45 / Dante
4 DC DC IN
5 USB-C USB-C Connector
6 USB-A USB-A Connector
7 WiFi LED LED for WiFi Connection Status
8 BT Button Bluetooth Pairing Intialization
9 BT LED Bluetooth Pairing LED
1 2 3
6 45
7
8
9
Interfaces
HDMI out HDMI 2.0
USB-C USB 3.1 (Gen 1)
USB-A
power output
USB 3.1 (Gen1)
5 V , max. 900 mA$
Ethernet 1 x 1000/100/10 Mbit/s (RJ45)
Note: Only use network cables
with the standard CAT5e (F/STP)
or better.
DC IN dimension 5.5 x 2.1 x 10.5 mm
Power State Information
Standby Mode
(all ports deactivated)
≤ 0.50 W
(Entered after <2.5
hours with no activity
on any network port)
Networked Standby
(all ports activated)
≤ 2.00 W
(Entered after <20
minutes of inactivity)
Networked Standby
(all ports activated)
≤ 2.00 W
Wi-Fi
Standard IEEE 802.11a /b /g /n /ac
Transmission system SISO (Single-In, Single-Out)
Frequency ranges
(max. RF output power)
2412 MHz – 2472 MHz
(max 20 dBm RF power)
5150 MHz – 5350 MHz
(max. 23 dBm RF power)
5470 MHz – 5725 MHz
(max. 23 dBm RF power)
5725 MHz – 5850 MHz
(max. 14 dBm RF power)
Modulation
64QAM, 16QAM, QPSK,
BPSK, CCK, DQPSK, DBPSK
