Side 1/6

RANDOM*SOURCE

RANDOMSOURCE.NET 1

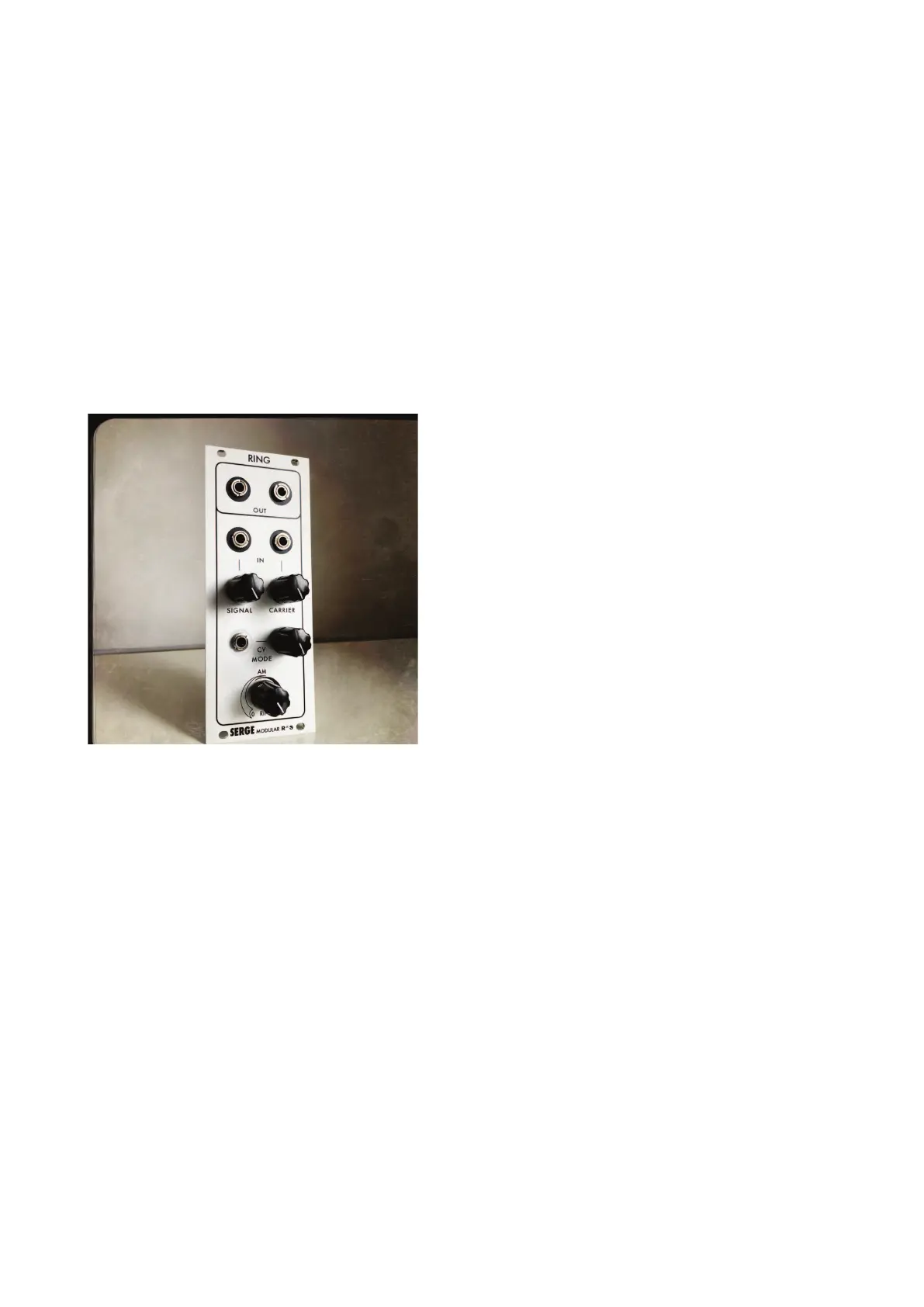

Serge RING

SERGE

Ring Modulator 2017

(RING) for Eurorack

The 2017 RING is an improved version of the late Serge

Ring Modulator (R9), designed by Serge himself for

Random*Source in 2017, more than 40 years after the

launch of the Serge Modular system.

To quote the Serge 1983 catalogue:

“Our new RING MODULATOR (RING) is a brand

new design which incorporates greatly improved

specications . Features include the following:

• A VERY CLEAN SOUND down to very low

signal levels (unlike conventional modulators where distortion increases at low levels) .

• 80 dbs OF CARRIER SIGNAL REJECTION.

• INAUDIBLE NOISE OUTPUT .

• NO SQUELCH CIRCUIT IS REQUIRED due to the low noise therefore annoying signal dropouts

and “pumping” effects are totally absent.

• INTERNAL WAVESHAPING OF CARRIER to add to modulation effects.

• The sum total of these design improvements is a Ring Modulator capable of treating the most subtle

acoustical signals, without the coloration typically associated with even the best previously available

ring modulators.

The versatility of the Serge Ring Modulator is enhanced by the added feature of voltage and manual control

of the entire spectrum of modulation possible: from zero modulation (i.e. the original, un-treated input

signal) through amplitude modulation to full ring modulation. This allows many shadings of effect, manual or

automatic with voltage controls. The ability to control the Carrier level manually and through voltage control

allows the output to be level controlled, as well. -Through the use of an internal signal processor for the

Carrier, additional effects can be produced by waveform modication of the carrier signal. When the module

is set to full Ring Modulation from the lower knob or voltage control, the output signal contains the sum and

RANDOM*SOURCE

RANDOMSOURCE.NET 2

Serge RING

difference frequencies of the Signal Input and the Carrier Input. If both signals are pure sine waves (only

one frequency component), the output will be a composite signal consisting two frequency components:

the sum and the difference frequency of the Signal and Carrier. If the Carrier level is increased beyond the

mid-position, then the carrier waveform will become slightly rounded, and new frequency components will

be produced. Each of these new components will also modulate with the Signal input to produce a sum

and difference frequency, and the output signal will become richer in harmonics. This effect. is unique to the

Serge Ring Modulator, and allows another dimension in timbral modication.

The Random*Source version of the RING for Euro is a licensed and authorized implementation of the new origi-

nal Serge design.

The Random*Source RING kit consists of a front panel and a pcb set with all SMT parts preinstalled. A couple of

through-hole parts (mostly capacitors) have to be installed (1uF caps only if not already installed in SMT!).
