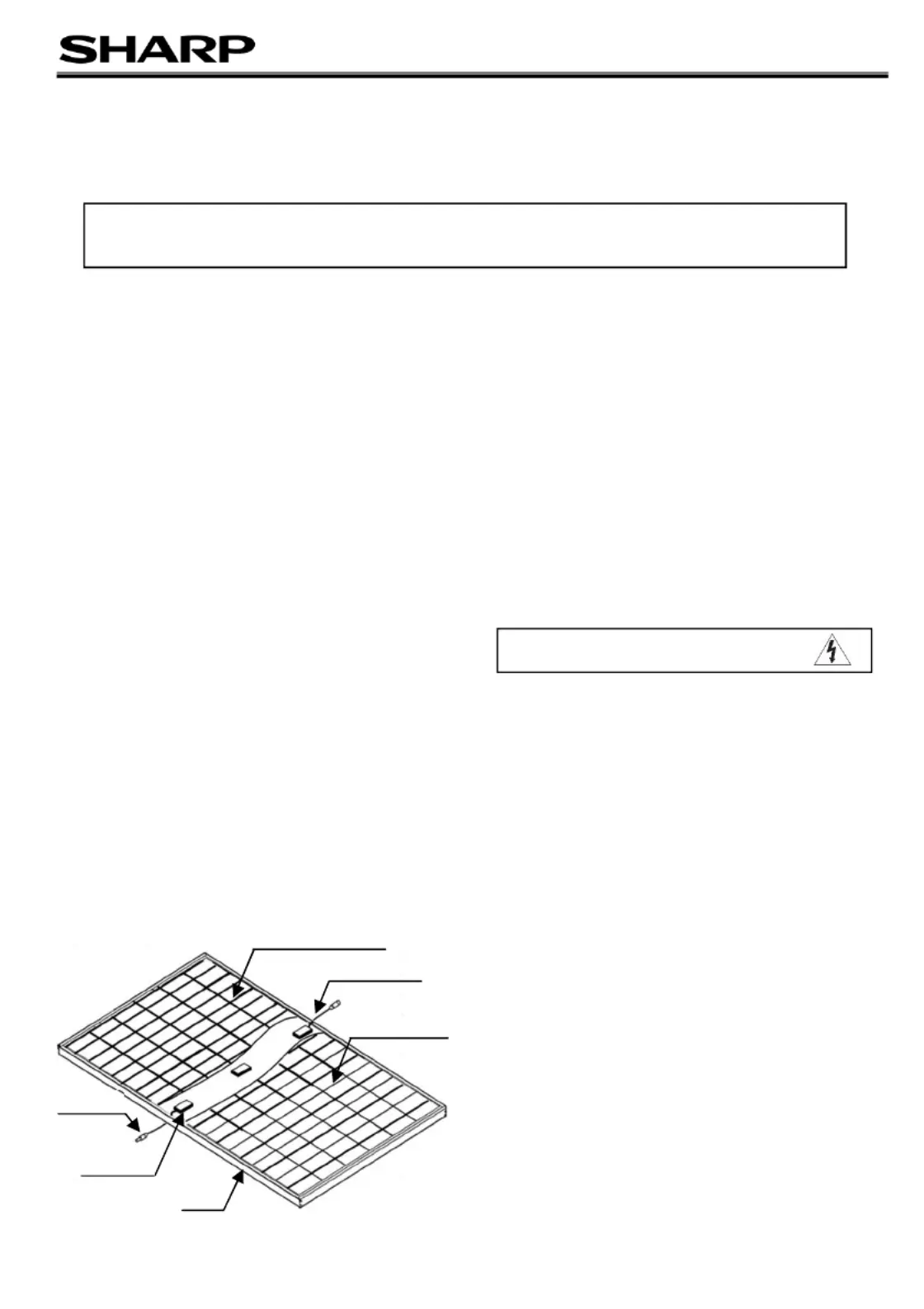

PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE PV MODULES.

PLEASE PASS ALONG THE ATTACHED USER MANUAL TO YOUR CUSTOMER.

INSTALLATION MANUAL

– Crystalline Photovoltaic Module –

# IMPORTANT SAFETY INSTRUCTIONS p.1

# GENERAL INSTRUCTIONS p.1 ~ p.3

# INSTALLATION INSTRUCTIONS -PHOTOVOLTAIC MODULES- p.4

# ELECTRICAL OUTPUT AND THERMAL CHARACTERISTICS p.4

IMPORTANT SAFETY INSTRUCTIONS

This manual contains important safety instructions for the PV module

that must be followed during the maintenance of PV modules.

To reduce the risk of electric shock, do not perform any servicing

unless you are qualied to do so.

1. The installation must be performed by a certied installer

/servicer to ensure system integrity and safety.

2. The installation is only allowed after referring and

understanding of this INSTALLATION MANUAL. If you don’t

have your personal copy, please contact your installer or local

SHARP oce listed in SHARP Solar web site:

URL: https://global.sharp/solar/en/

3. Do not pull the PV cables.

4. Do not touch any surface of PV module.

5. Do not place/drop objects onto the PV modules.

6. Do not disassemble or attempt to repair the PV module by

yourself.

7. Do not drop the PV module.

8. Do not damage, pull, bend, or place heavy material on cables.

9. Upon completion of any service or repairs, ask the

installer/servicer to perform routine checks to determine that

the PV modules are in safe and proper operating condition.

10. When replacement parts are required, be sure the

installer/servicer uses parts specied by the manufacturer with

same characteristics as the original parts. Unauthorized

substitutions may result in re, electric shock, or other hazard.

11. Consult your local building and safety department for required

permits and applicable regulations.

12. As a result of sliding snow, the mechanical load increases when

the number of PV module rows in the matrix of a PV installation

increases. When mounting the PV module in the portrait

orientation for more than 3 rows, the accumulated snow load

may cause the lower edge of the PV module frame to deform.

Take necessary measures (e.g. snow stopper) to avoid

possible damage.

13. Periodically remove any overhanging snow and/or ice from the

PV module framework as it may cause deformation of the PV

module frame.

GENERAL INSTRUCTIONS

1. INTRODUCTION

This INSTALLATION MANUAL contains essential information for the electrical and mechanical installation that you must know

before installing SHARP PV modules. This also contains safety information you need to be familiar with. All the information

described in this manual are the intellectual property of SHARP and based on the technologies and experiences that have been

acquired and accumulated in the long history of SHARP. This document does not constitute a guaranty, expressed or implied.

SHARP does not assume responsibility and expressly disclaims liability for loss, damage, or expense arising out of or in any way

connected with installation, operation, use or maintenance of the PV modules. No responsibility is assumed by SHARP for any

infringement of patents or other rights of third parties that may result from use of PV module. SHARP reserves the right to make

changes to the product, specications or INSTALLATION MANUAL without prior notice.

2. COMPONENTS

3. GENERAL INFORMATION

(INCLUDING WARNING AND SAFETY)

The installation of PV modules requires a great degree of skill

and should only be performed by a qualied licensed

professional, including licensed contractors and licensed

electricians. Please be aware that there is a serious risk of

various types of injury occurring during the installation including

the risk of electric shock. All SHARP PV modules are equipped

with a permanently attached junction box that will accept variety

of wiring applications or with a special cable assembly for ease

of installation, and they do not require special assembly.

GENERAL WARNING

1. PV modules are heavy. Handle with care.

2. Before you attempt to install, wire, operate and maintain

the PV module, please make sure that you completely

understand the information described in this

INSTALLATION MANUAL.

3. Contact with electrically active parts of a PV module such

as terminals can result in burns, sparks and lethal shock

whether the PV modules are connected or not.

4. PV modules produce electricity when the sucient sunlight

or other sources illuminate the PV module surface. When

the PV modules are connected in series, voltage is

cumulative. When the PV modules are connected in

parallel, current is cumulative. As a result, a large-scale PV

MODEL

NU-JBxxx

CAUTION: HIGH VOLTAGE

To reduce the risk of electric shock, do not touch.

Solar Photovoltaic Cell

Junction Box

Superstrate Glass

Frame

Connector

Electrical Cable

Produkt Specifikationer

Mærke:	Sharp
Kategori:	Solpanel
Model:	NU-JB395
Kode for international beskyttelse (IP):	IP68
Bredde:	1002 mm
Dybde:	40 mm
Højde:	2008 mm
Vægt:	23500 g
Produktfarve:	Sort
Strøm:	20 A
Driftstemperatur (T-T):	-40 - 85 °C
Husmateriale:	Aluminium
Vurderet effekt:	395 W
Maksimal systemspænding:	1500 V
Solarcelletype:	Monokrystallinsk silicium
Celleffektivitet:	19.6 %
Spænding ved åben kredsløb (Voc):	49.45 V
Kortslutningsstrøm (Isc):	10.35 A
Strøm ved maksimal effekt (Imp):	9.62 A
Spænding ved maksimal effekt (Vmp):	41.07 V
Antal celler:	144
