SIM02E-012

PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE PV MODULES.

PLEASE PASS ALONG THE ATTACHED USER MANUAL TO YOUR CUSTOMER.

INSTALLATION MANUAL

- Crystalline Photovoltaic Module -

# IMPORTANT SAFETY INSTRUCTIONS p.1

# GENERAL INSTRUCTIONS p.1 ~ p.3

# INSTALLATION INSTRUCTIONS -PHOTOVOLTAIC MODULES- p.4

# ELECTRICAL OUTPUT AND THERMAL CHARACTERISTICS p.5

# Annex (normative) p.6

IMPORTANT SAFETY INSTRUCTIONS

This manual contains important safety instructions for the PV module

that must be followed during the maintenance of PV modules.

To reduce the risk of electric shock, do not perform any servicing

unless you are qualified to do so.

1. The installation must be performed by a certified installer

/servicer to ensure system integrity and safety.

2. The installation is only allowed after referring and

understanding of this INSTALLATION MANUAL. If you don’t

have your personal copy, please contact your installer or local

SHARP office listed in SHARP Solar web site:

https://www.sharp./eu/

3. Do not pull the PV cables.

4. Do not touch any surface of PV module.

5. Do not place/drop objects onto the PV modules.

6. Do not disassemble or attempt to repair the PV module by

yourself.

7. Do not drop the PV module.

8. Do not damage, pull, bend, or place heavy material on cables.

9. Upon completion of any service or repairs, ask the

installer/servicer to perform routine checks to determine that

the PV modules are in safe and proper operating condition.

10. When replacement parts are required, be sure the

installer/servicer uses parts specified by the manufacturer with

same characteristics as the original parts. Unauthorized

substitutions may result in fire, electric shock, or other hazard.

11. Consult your local building and safety department for required

permits and applicable regulations.

12. As a result of sliding snow, the mechanical load increases when

the number of PV module rows in the matrix of a PV installation

increases. When mounting the PV module in the portrait

orientation for more than 3 rows, the accumulated snow load

may cause the lower edge of the PV module frame to deform.

Take necessary measures (e.g. snow stopper) to avoid

possible damage.

13. Periodically remove any overhanging snow and/or ice from the

PV module framework as it may cause deformation of the PV

module frame.

GENERAL INSTRUCTIONS

1. INTRODUCTION

This INSTALLATION MANUAL contains essential information for the electrical and mechanical installation that you must know

before installing SHARP PV modules. This also contains safety information you need to be familiar with. All the information

described in this manual are the intellectual property of SHARP and based on the technologies and experiences that have been

acquired and accumulated in the long history of SHARP. This document does not constitute a guaranty, expressed or implied.

SHARP does not assume responsibility and expressly disclaims liability for loss, damage, or expense arising out of or in any way

connected with installation, operation, use or maintenance of the PV modules. No responsibility is assumed by SHARP for any

infringement of patents or other rights of third parties that may result from use of PV module. SHARP reserves the right to make

changes to the product, specifications or INSTALLATION MANUAL without prior notice.

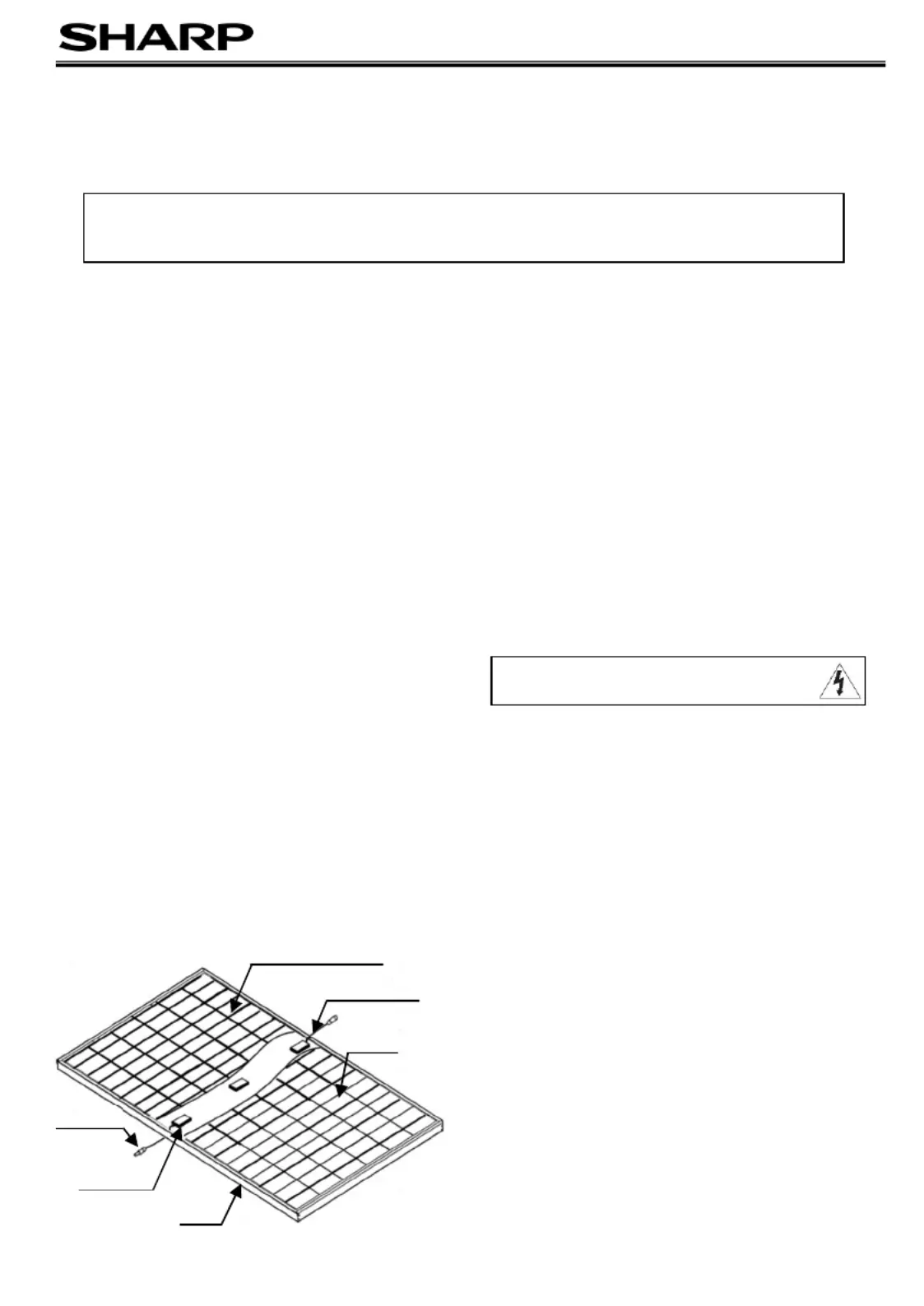

2. COMPONENTS

3. GENERAL INFORMATION

(INCLUDING WARNING AND SAFETY)

The installation of PV modules requires a great degree of skill

and should only be performed by a qualified licensed

professional, including licensed contractors and licensed

electricians. Please be aware that there is a serious risk of

various types of injury occurring during the installation including

the risk of electric shock. All SHARP PV modules are equipped

with permanently attached junction boxes that will accept

variety of wiring applications or with a special cable assembly

for ease of installation, and they do not require special

assembly.

GENERAL WARNING

1. PV modules are heavy. Handle with care.

2. Before you attempt to install, wire, operate and maintain

the PV module, please make sure that you completely

understand the information described in this

INSTALLATION MANUAL.

3. Contact with electrically active parts of a PV module such

as terminals can result in burns, sparks and lethal shock

MODEL

NU-JC410B

CAUTION: HIGH VOLTAGE

To reduce the risk of electric shock, do not touch.

Solar Photovoltaic Cell

Junction Box

Glass

Frame

Connector

Electriclal Cable

SIM02E-012

whether the PV modules are connected or not.

4. PV modules produce electricity when the sufficient sunlight

or other sources illuminate the PV module surface. When

the PV modules are connected in series, voltage is

cumulative. When the PV modules are connected in

parallel, current is cumulative. As a result, a large-scale PV

system can produce high voltage and current which could

present an increased hazard and may cause serious injury

or death.

5. Do not connect the PV modules directly to the loads such

as motor since the variation of the output power depending

on the solar irradiation causes damage for the connected

motor.

1: In the case of a brushless motor, the lock function

becomes active and the hall IC is most likely to be

damaged.

2: In the case of a brush type motor, the coil is most likely

to be damaged.

6. In case of snow build-up, snow would slide easier on the

smooth surface of the PV module than other parts of the

roof. Snow may suddenly slide, fall off the roof and hit

nearby objects/areas. Take preventive measures (e.g.

snow stopper) when there is possible risk such case would

cause an injury or a damage.

GENERAL SAFETY

1. Consult local codes and other applicable laws concerning

required permits on regulations for installation and

inspection requirements.

2. Before installing a PV module, contact appropriate

authorities to determine permit, installation and inspection

requirements that should be followed.

3. Install PV modules and ground frames in accordance with

applicable rules and regulations.

4. PV modules should be installed and maintained by

qualified personnel. Only installer/servicer personnel

should have access to the PV module installation site.

5. No matter where the PV modules are installed, either roof

mounted construction or any other type of structures above

the ground, appropriate safety practices should be

followed and required safety equipment should be used in

order to avoid possible safety hazards. Note that the

installation of some PV modules on roofs may require the

addition of fireproofing, depending on local building/fire

codes.

6. In the case that the PV modules are non-integral type, the

PV module is to be mounted over a fire resistant roof.

7. Use PV modules with the same cell size within series.

8. Follow all safety precautions of other components that are

used in the system.

9. In order to avoid a risk of injury or electrical shock, do not

allow anyone to approach the PV module if the person has

little knowledge on PV module or on the measures that

should be taken when PV modules are damaged.

10. Do not shade portions of the PV module surface from the

sunlight for a long time. The shaded cell may become hot

(hot spot phenomenon) which results in solder joints

peeling off. Shading causes drop in generated power

and/or operation failure of the PV modules.

11. Do not clean the glass surface with chemicals. Do not let

water collect on the glass surface for a long time. This

creates a risk of white efflorescence (glass disease) which

may result in the deterioration of energy generation.

12. Do not install the PV module horizontally. It may cause dirt

or white efflorescence (glass disease) due to water.

13. Do not cover the water drain gap of the frame. There is a

risk of frost damage when the frame is filled with water

cumulation.

14. If there is a risk of sliding snow, an appropriate measure

has to be taken so that PV module frames on lower edge

of PV modules will not be damaged.

15. Do not expose PV module to sunlight concentrated with

mirrors, lenses or similar means.

16. Turn off inverters and circuit breakers immediately, should

a problem occur.

17. In case the glass surface of a PV module is broken, wear

goggles and tape the glass to keep the broken pieces in

place.

18. A defective PV module may generate power even if it is

removed from the system. It may be dangerous to handle

the PV module while exposed to sunlight. Place a defective

PV module in a carton so PV cells are completely shaded.

19. In case of series connection, the maximum open circuit

voltage must not be greater than the specified maximum

system voltage. The voltage is proportional to the number

of modules in series. In case of parallel connection, please

be sure to take proper measure (e.g. fuse for protection of

PV module and cable from over current, and/or blocking

diode for prevention of unbalanced strings voltage) to block

the reverse current flow. The current may easily flow in a

reverse direction.

20. Keep PV modules away from children.

HANDLING SAFETY

1. Do not cause an excessive load on the surface of PV

module or twist the frame. The glass surface or cells in the

PV module can easily break.

2. Do not stand or step on the PV module. The surface glass

of PV module is slippery. Besides, the weight may cause

PV module damage.

3. Do not hit or put excessive load on the glass or back sheet.

The PV cell is very thin and can be easily broken.

4. Do not scratch or hit at the back sheet. The back sheet is

vulnerable.

5. Do not damage the junction boxes or do not pull the cables.

The junction boxes can crack and break.

6. Never touch junction box or the end of output cables with

bare hands when the PV module is irradiated. Cover the

surface of PV module with cloth or other suitable

sufficiently opaque material to isolate the PV module from

incident light and wear rubber gloves when handling the

wires to avoid electric shock.

7. Do not scratch the output cable or bend it with force. The

insulation of output cable can break and may result in

electricity leakage or shock.

8. Do not pull the output cable excessively. The output cable

may unplug and cause electricity leakage or shock.

9. Do not drill holes in the frame. It may compromise the

frame strength and cause corrosion.

10. Do not scratch the insulation coating of the frame (except

for grounding connection). It may cause corrosion of the

frame or compromise the framework strength.

11. Do not touch the PV module with bare hands. The frame

of PV module has sharp edges and may cause injury.

12. Do not drop PV module or allow objects to fall down on the

PV module.

13. Do not concentrate sunlight artificially on the PV module.

14. Do not hold the PV module on one side. The frame may

bend or twist. Hold the PV module at opposite sides.

INSTALLATION SAFETY

1. Always wear protective head gear, insulating gloves and

safety shoes (with rubber soles). Do not wear metallic

jewelry to prevent electric shock during installation.

2. Keep the PV module packed in the carton until installation.

3. Do not touch the PV module unnecessarily during

installation. The glass surface and the frames get hot.

There is a risk of burn, or electric shock.

4. Do not work under rain, snow or windy conditions.

5. Use dry insulated tools.

6. Do not drop tools or hard objects on PV modules

7. When working at heights, wear a safety belt and take care

not to drop any items (e.g., PV module or tools).

8. Make sure flammable gases are not generated near the

installation site.

9. Completely cover the PV module surface with an opaque

material during PV module installation and wiring.

10. Plug in the connector tight and ensure the wiring work.

Make sure that the connectors have been locked by a

snap-in latch. Any treatments over the connectors which

may allow to unlock the snap-in latch shall not be done.

11. Due to the risk of electrical shock, do not perform any work

Produkt Specifikationer

Mærke:	Sharp
Kategori:	Solpanel
Model:	NU-JC410B

Har du brug for hjælp?

Hvis du har brug for hjælp til Sharp NU-JC410B stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Solpanel Sharp Manualer

Sharp NU-JC420B Manual

5 Januar 2025

Sharp NB-JG435B Manual

5 Januar 2025

Sharp NB-JD575 Manual

5 Januar 2025

Sharp NB-JG450R Manual

5 Januar 2025

Sharp NU-JC430B Manual

5 Januar 2025

Sharp NU-JC415B Manual

5 Januar 2025

Sharp NB-JD580 Manual

5 Januar 2025

Sharp NU-JC435 Manual

5 Januar 2025

Sharp NU-JC440 Manual

5 Januar 2025

Sharp NU-JC410B Manual

5 Januar 2025

Solpanel Manualer

Nyeste Solpanel Manualer

Mestic MSBC-250 Manual

8 Juni 2025

Mestic MSMO-140 Manual

8 Juni 2025

Mestic MSBC-110 Manual

7 Juni 2025

Mestic MSMO-100 Manual

7 Juni 2025

Mestic MSMO-180 Manual

7 Juni 2025

Mestic MSMO-120 Manual

6 Juni 2025

Mestic MSBC-300 Manual

6 Juni 2025

Mestic MSMO-200 Manual

6 Juni 2025

Mestic MSBC-220 Manual

6 Juni 2025

Mestic MSMO-160 Manual

6 Juni 2025
