Side 1/6

5. Trimming mechanism adjustment and checking

While turning the crank arm, gently operate lever (b) and check that

the front derailleur moves slightly toward the smallest chainring. If the

front derailleur moves by a large amount and the chain is set onto the

smallest chainring at this time, loosen the top adjustment bolt by 1/8th

of a turn. Then, after returning the

chain to its original position, adjust

and check the trimming mechanism.

In order to realize the best performance, we recommend that the following

combination be used.

Series

Dual control lever

Shifting lever

Brake lever

Outer casing

Gears

Front derailleur

Front chainwheel

Rear derailleur

Freehub

Cassette sprocket

Chain

Bottom bracket cable guide

TIAGRA

ST-4603

SL-4603

BL-4600

OT-SP41

FD-4603

FC-4603

RD-4600-GS

FH-4600

CS-4600

CN-7801 / CN-6600 / CN-5600

SM-SP17

Specifications

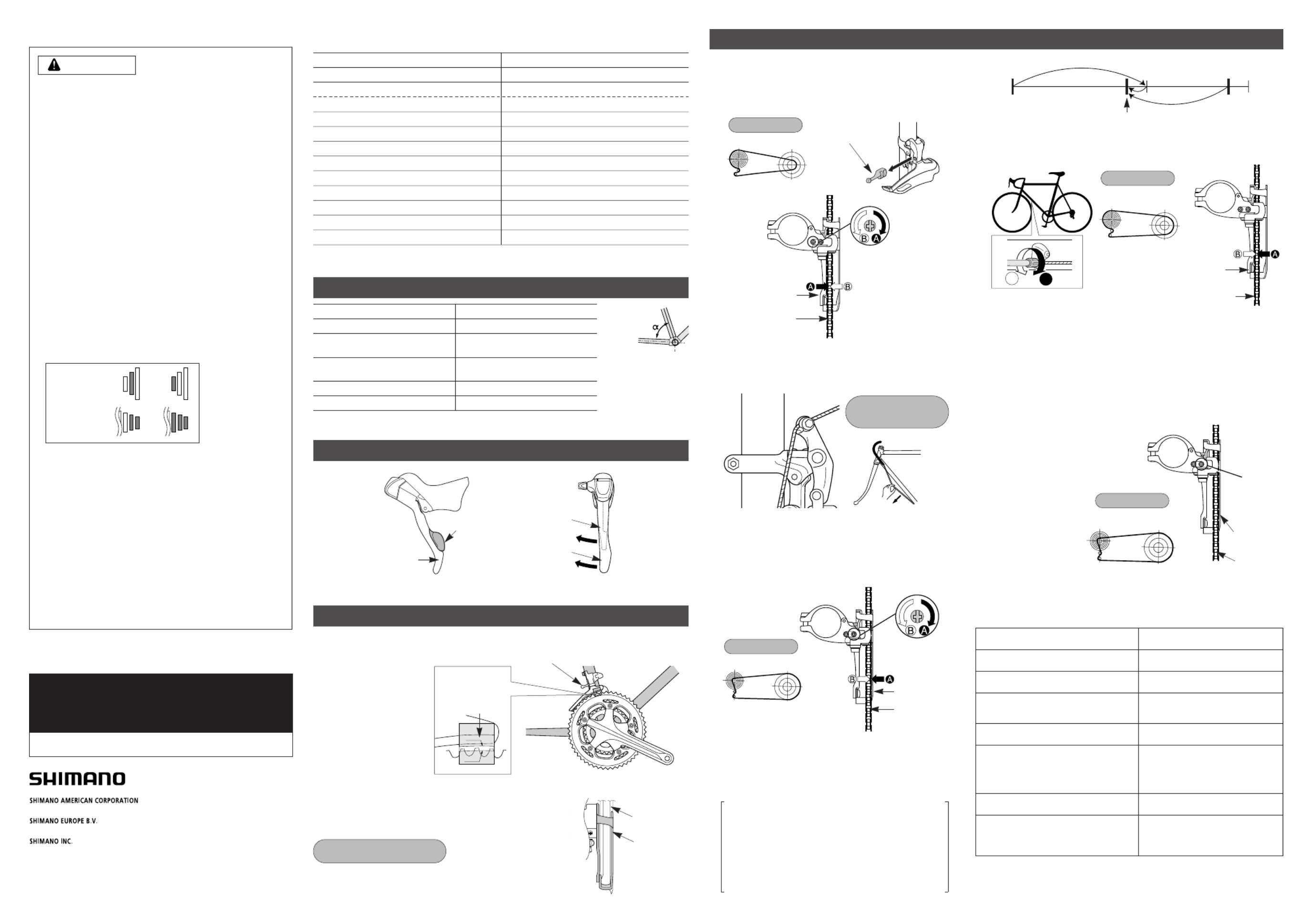

Installation of the front derailleur

Front shifting (ST-4603)

Type Band type / Brazed on type

Front chainwheel tooth difference 20 teeth or less

Min. difference between top and

intermediate 11T

Front derailleur

installation band diameter

S (ø28.6mm),

M (ø31.8mm), L (ø34.9mm)

Chainstay angle (C) 63° - 66°

Chain line 45mm

Chainstay

angle

Adjust and then install the front derailleur as shown in the illustration.

Do not remove the Pro-Set alignment block at this time.

1mm

3mm

Gear teeth should

come within this

range

Pro-Set gauge

The level section of the chain guide outer plate should be

directly above and parallel to the largest chainring.

Secure using a 5mm Allen key. Chainwheel

(largest chainring)

Chain guide

Tightening torque:

5 - 7 N·m {44 - 60 in. lbs.}

SIS adjustment

Be sure to follow the sequence described below.

1. Low adjustment

First remove the Pro-Set alignment block. Next, set so

that the clearance between the chain guide inner plate

and the chain is 0 - 0.5mm.

2. Connection and securing of cable

While pulling the inner cable, tighten the wire fixing

bolt with a 5 mm allen key to secure the cable.

3. Top adjustment

Set so that the clearance between the chain guide

outer plate and the chain is 0 - 0.5 mm.

Largest

sprocket

Smallest

chainring

Chain position

Pro-Set alignment block

Pull

Tightening torque:

5 - 7 N·m

{44 - 60 in. lbs.}

After taking up the initial slack in the cable, re-secure

to the front derailleur as shown in the illustration.

Smallest

sprocket

Largest

chainring

Chain position

4. Cable adjustment using the intermediate

chainring

When making the cable adjustment, place the chain

on the largest sprocket for the rear and the middle

chainring for the front.

Largest

sprocket

Intermediate

chainring

Outer casing adjustment barrel

Chain position

Chain guide

inner plate

Top adjustment

screw

Chain guide

outer plate

Chain

Lever b

From large chainring

to small chainring

Lever a

From small chainring

to large chainring

Lever a

Lever b

Be sure to read these service instructions in conjunction with the service

instructions for the ST-4603 / SL-4603 before use.

Pro-Set alignment block

Smallest

sprocket

Largest

chainring

Chain position

Low adjustment

screw

Chain guide

inner plate

Chain

Top adjustment

screw

Chain guide

outer plate

Chain

6. Troubleshooting chart

After completion of steps 1 - 5, move the shifting lever to check the

shifting. (This also applies if shifting becomes difficult during use.)

If the chain falls to the crank side

If shifting is difficult from the intermediate

chainring to the largest chainring

If shifting is difficult from the intermediate

chainring to the smallest chainring

If there is interference between the chain

and the front derailleur outer plate at the

largest chainring

If the intermediate chainring is skipped

when shifting from the largest chainring

If there is interference between the chain

and front derailleur inner plate when the

rear sprocket is shifted to the largest

sprocket when the chainwheel is at the

intermediate chainring position.

If the chain falls to the bottom bracket

side.

If there is interference between the chain

and the front derailleur inner plate when

the chain is on the smallest chainring and

the largest sprocket

Tighten the top adjustment screw

clockwise (about 1/4 turn).

Loosen the top adjustment screw

counterclockwise (about 1/8 turn).

Loosen the low adjustment screw

counterclockwise (about 1/8 turn).

Loosen the top adjustment screw

counterclockwise (about 1/8 turn).

Loosen the outer casing adjustment

barrel counterclockwise (

1 or 2 turns

Tighten the outer casing adjustment

barrel clockwise (1 or 2 turns).

Tighten the low adjustment screw

clockwise (about 1/8 turn).

Loosen the low adjustment screw

counterclockwise (about 1/8 turn).

Intermediate

chainring

Largest

chainring

Smallest

chainring

Adjustment point

General Safety Information

WARNING

• Obtain and read the service instructions carefully prior

to installing the parts. Loose, worn or damaged parts

may cause the bicycle to fall over and serious injury may

occur as a result. We strongly recommend only using

genuine Shimano replacement parts.

• Obtain and read the service instructions carefully prior

to installing the parts.If adjustments are not carried out

correctly, the chain may come off and this may cause you

to fall off the bicycle which could result in serious injury.

• Be careful not to let the cuffs of your clothes get caught in

the chain while riding, otherwise you may fall off the

bicycle.

• Read these Technical Service Instructions carefully, and

keep them in a safe place for later reference.

Note

• If gear shifting operations cannot be carried out smoothly,

clean the derailleur and lubricate all moving parts.

• If the amount of looseness in the links is so great that

adjustment is not possible, you should replace the

derailleur.

• Use the CN-7801 / CN-6600 / CN-5600 with the FD-4603.

• When the chain is in the position shown in the illustration,

the chain may contact the front chainrings or front

derailleur and generate noise.

If the noise is a problem, shift the chain onto the next-

larger rear sprocket or the one after.

• For smooth operation, use the specified outer casing and

the bottom bracket cable guide.

• Grease the inner cable and the inside of the outer casing

before use to ensure that they slide properly.

• This front derailleur is for triple front chainwheel use only.

It cannot be used with the double front chainwheel, as the

shifting points do not match.

• Parts are not guaranteed against natural wear or

deterioration resulting from normal use.

• For maximum performance we highly recommend

Shimano lubricants and maintenance products.

• For any questions regarding methods of installation,

adjustment, maintenance or operation, please contact a

professional bicycle dealer.

Front

chainrings

Rear

sprockets

* Service Instructions in further languages are available at :

http://techdocs.shimano.com

Please note: specifications are subject to change for improvement without notice. (English)

One Holland, Irvine, California 92618, U.S.A. Phone: +1-949-951-5003

Industrieweg 24, 8071 CT Nunspeet, The Netherlands Phone: +31-341-272222

3-77 Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan

FD-4603

Front derailleur

Technical

Service Instructions SI-5MX0A-001

SI-5MX0A-001-00

Note: There are 2 derailleur positions for the intermediate

chainring. When making the cable adjustment, make

sure that the derailleur is in the inner side (toward

small chainring) of the two positions. Locate the

derailleur to this position by shifting from the largest

to the intermediate chainring (recommended) or by

shifting from the small to the intermediate chainring,

then gently press lever (b) until a small click is felt

(to position the derailleur to the inner side of the

intermediate chainring).

Adjust the cable tension by using the outer casing adjustment barrel

so that the clearance between the chain guide inner plate and the

chain is 0 - 0.5 mm.

Adjustment is possible at the dual control lever (with cable adjuster).

For details on the adjustment method, refer to the Service

Instructions for the ST-4600.
