High performance Small Form Factor CPU cooler

Hydrogon H90 ARGB

www.silverstonetek.com

User manual

AMD

AMD SCREW

AMD

*Please use the AMD backplate comes with mainboard

Bitte verwenden Sie die mit dem

Motherboard gelieferte AMD-Backplate

Veuillez utiliser la plaque arrière AMD

fournie avec la carte mère

Utilice la placa posterior AMD que viene

con la placa base

Utilizzare la piastra posteriore AMD

fornita con la scheda madre

$0'



ࡵࡒ࡚ࡋࡶࡁࡼࡴࡓࡻࡐ࡚ࡤ࠾ࡢ࡜ࡨ࠾࠹ࡤ࠾$0'ࡎ࡬ࡻࡘࡩࡕ࡚ࡼࡤࡘ࠸ࡨࡑ

ࡳࡘࡐࡑࡤ࡚ࡿࡋ

ኻናዙኹዙኦ቎Ⅷ⻭ቑ$0'ክአኌኴዉ

ዙእት∎䞷ሺ቉ሲቃሸሧ

ꍽ鴉ꚩ麑꿵뼝颍뇑險鷍鱉$0'ꗦ

뻁ꆽ넩뱭ꌱꩡ끞뼍겢겑꿙

庆∎䞷㌷⃊㧉㨎ₙ䤓$0'卛㨎扪嫛⸘孔

嵚∎䞷㌷⃊㳮㨎ₙ䤓$0'卛㨎拁嫛⸘孬

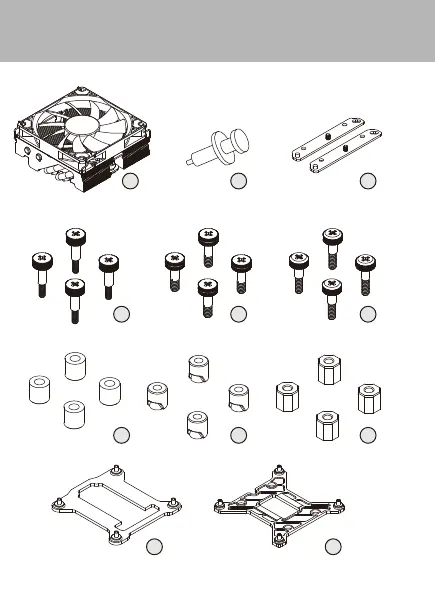

A B C

D E F

G H

J K
