INSTRUCTION MANUAL
The digital pitch gauge is designed for application in model helicopters and serves to measure
the rotor blade pitch value.
The built in digital gyroscopic sensor is capable of detecting pitch angle, with result displayed
through LCD screen, providing a simple and precise way of measuring pitch angle.
- -1
DPG-010 DIGITAL PITCH GAUGE
Large LCD for easy reading
Up to 700 mm blades (Suitable for 250 to 700 size helicopters)
Fast and accurate measurement
Zero function
Auto rotating display
Auto power-off (Power shuts down after 20 minutes without any movement)
FEATURES
PULL OFF THE INSULATION
PAPER BEFORE USE
Power and
Zero Button
LCD Display
Blade Clamp

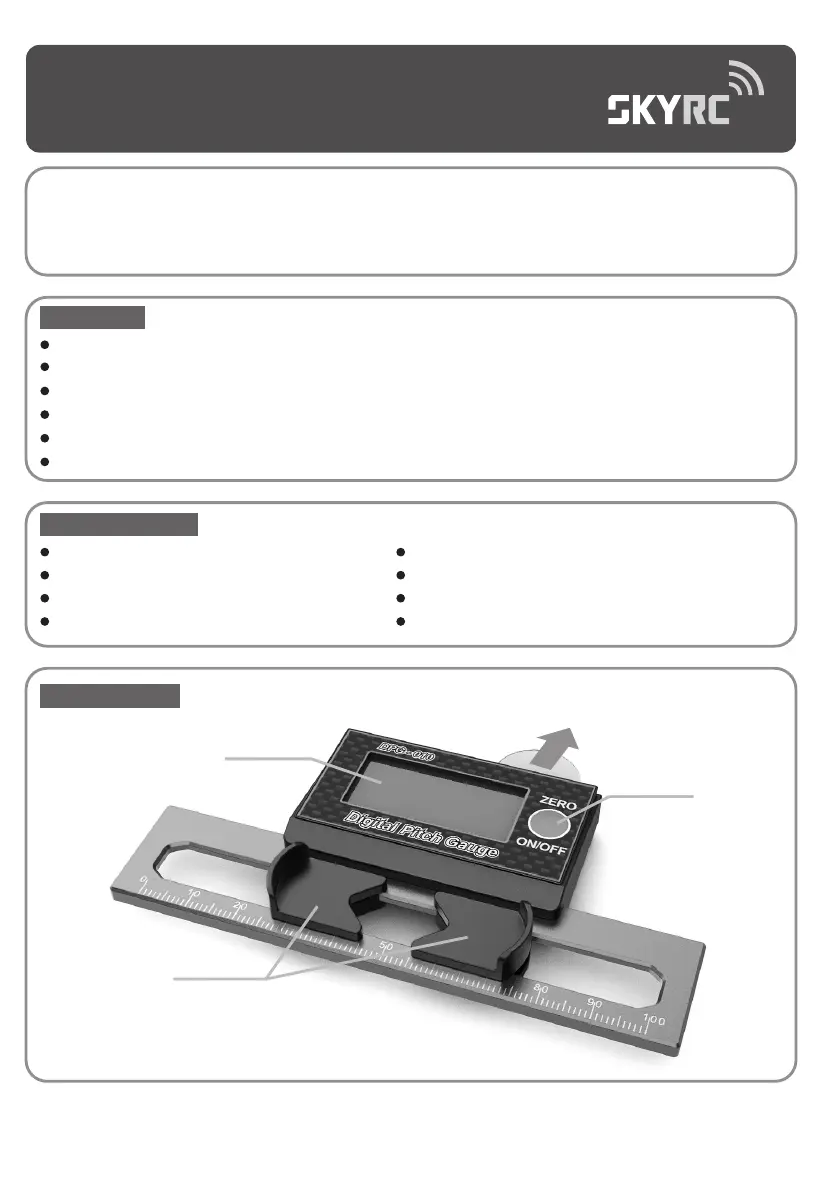

ILLUSTRATION
SPECIFICATIONS
Body Dimension
Suitable blade width
Detectable pitch range
Temperature
Resolution
Current consumption
Battery
Weight (including battery)
113x56x14mm
20mm~75mm
±90°
0~40°C
0.1°
2.8mA
CR2032 Lithium X2
40g
- -2
HOW TO USE
Press “POWER” button for about two seconds to turn on the power. For correct pitch
measurements, DPG-010 digital pitch gauge must be zeroed before being used. Press
“ZERO” button once to zero the gauge. Please refer to the below instruction to understand
how to use DPG-010. After used, Press “POWER” button for about two seconds to turn off.
HOW TO CHANGE BATTERIES
Low battery could contribute to reduced screen brightness and abnormal startup. Please
replace battery should this occurs.
Open the battery compartment by removing the four screws at the back of the pitch gauge
with a philips-head screw driver.
Remove the battery compartment cover.
Insert / replace two CR2032 batteries while observing the correct polarity.
Close the battery compartment and fasten it with the four screws.
1.
2.
3.
4.
Should the pitch gauge display abnormal behavior after accidental shock or impact, proceed
to remove and re-install battery to reset the device.
Manufactured by
SKYRC TECHNOLOGY CO LTD ., .
www skyrc com. .
RoHS
7504-0315-01
Place the DPG-010 horizontally
leveled with top of helicopter
frames.
Press “ZERO” to zero the
gauge.
ZERO THE GAUGE
Mount the DPG-010 on main
blade to measure the pitch.
MEASURE THE PITCH
