NOTICE

T h e i n f o r m at i o n c o nt a i n e d i n t h i s d o c u m e n t

is subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or

translated into another language without prior written consent

from Smart-AVI.

For more information, visit www.smartavi.com.

Connect One HDMI/HDTV

Component to Eight Displays

HDS- P8

8-Port HDMI Splitter

www.smartavi.com

Installation

Manual

Technical Specications

What’s in the Box?

PART NO. QTY DESCRIPTION

HDS-8PS 1 HDMI 8-Port Splitter

Power Supply 1 PS5VDC4A

User Manual 1

OTHER

DDC Signal 5 Volts [peak-to-peak], TTL

TDMS Signal 1.2 Volts[peak-to-peak], TTL

Power External 5VDC4A

Dimensions 17”W x 1.75”H x 5”D

Weight 2 lbs.

Approvals Device: CE, ROHS

Power Supply: C-UL US, CE

VIDEO

Format HDMI 1.3b [Deep Color, xvYcc color space supported]

DVI Compliance Single-link DVI-D 1.1

HDCP Compliance 1.0/1.1

Video Bandwidth Single-link 340MHz [10.2Gbps]

Resolution 480i,480p,720i,720p,1080i,1080p

Input Interface (1) HDMI[7.1ch audio & video]

Output Interface (8) HDMI[7.1ch audio & video]

Connector Type A[19-pin female]

Maximum Distance 25 ft.

SmartAVI, Inc. / Twitter: smartavi

11651 Vanowen St. North Hollywood, CA 91605

Tel: (818) 503-6200 Fax: (818) 503-6208

http://www.SmartAVI.com

Introduction

The HDMI Splitter allows set-top boxes, DVD players,

HDMI game console, and other HDTV devices with a

HDMI output to be connected to eight HDTV displays.

Supports HDTV’s 480i/480p/720i/720p/1080i/1080p

& PC’s WUXGA/1900x1200 and works with at panel,

plasma screen, projector, switch, splitter, computer

video display, HDTV/HDCP, set-top boxes, DTV and

DVD.

HDMI can output up to 20 feet from an HDMI device

to the HDMI splitter, and then 20 feet from the HDMI

splitter to the displays.

Features

• HDMI 1.3c and DVI 1.0 compliant

• HDCP 1.2 compliant

• Wide Frequency Range: 25MHz~225MHz

• Video bandwidth: 6.7GBPS

• Resolution up to 1080p or WUXGA

• Supports CEC (not bypassing)

• Supports Dolby Digital, DTS-HD

and Dolby True HD audio

• Easy installation

Applications

• Home Theater Integration

• Restaurants and Bars

• Digital Signage Deployment

• Information Kiosks/Displays

• Film/Recording Studios

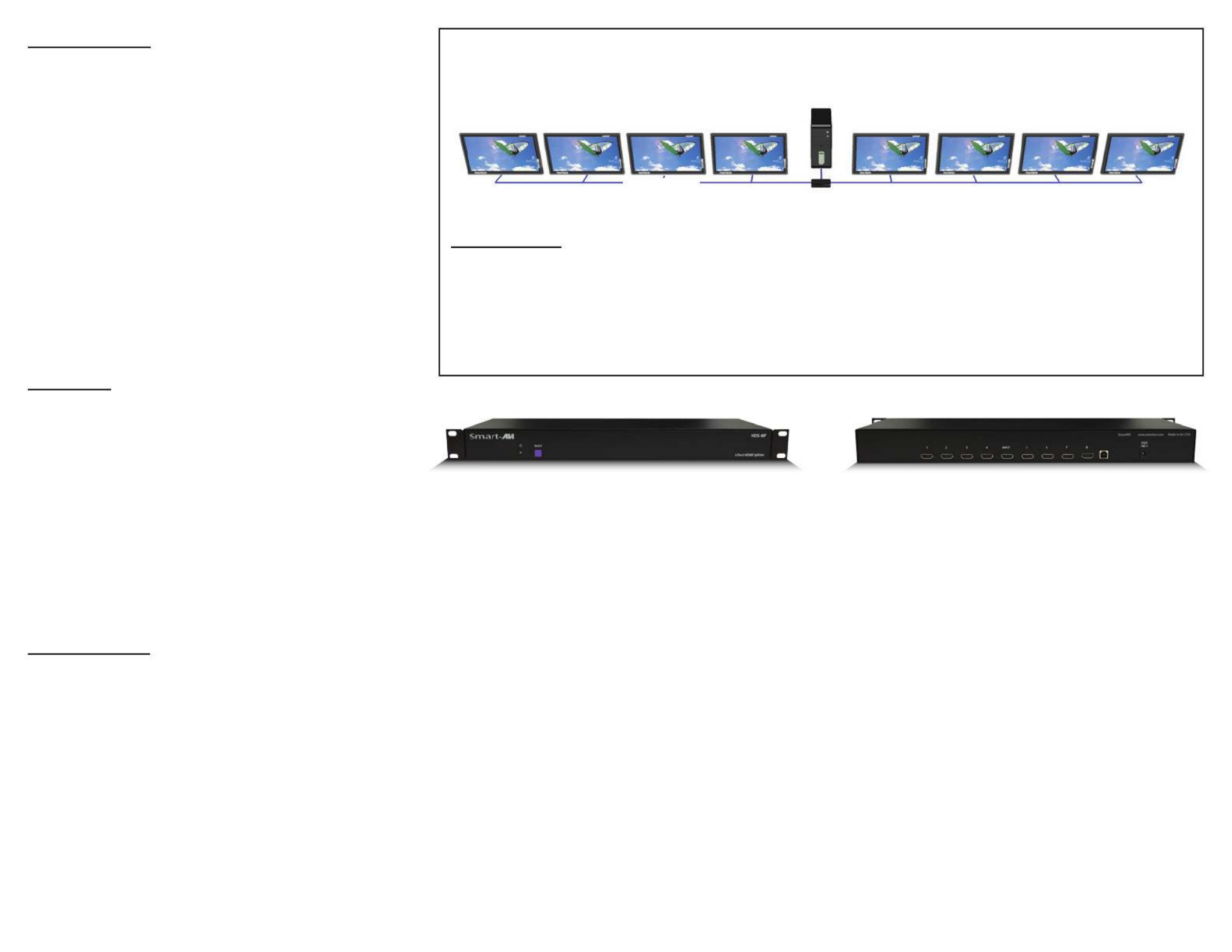

Product - Installation Diagram

Installation

1. Turn o the HDMI device and the displays.

2. Connect an HDMI cable from the HDMI output device to the input port on the HDS-8P.

3. Connect the displays to the HDMI outputs on the HDS-8P.

4. Connect the power cord to the HDS-8P.

5. Power on the HDMI device and the displays.

HDS-8P Front HDS- P Rear8

20 ft. over HDMI

HDS-8P

COMPUTER / PLAYER
