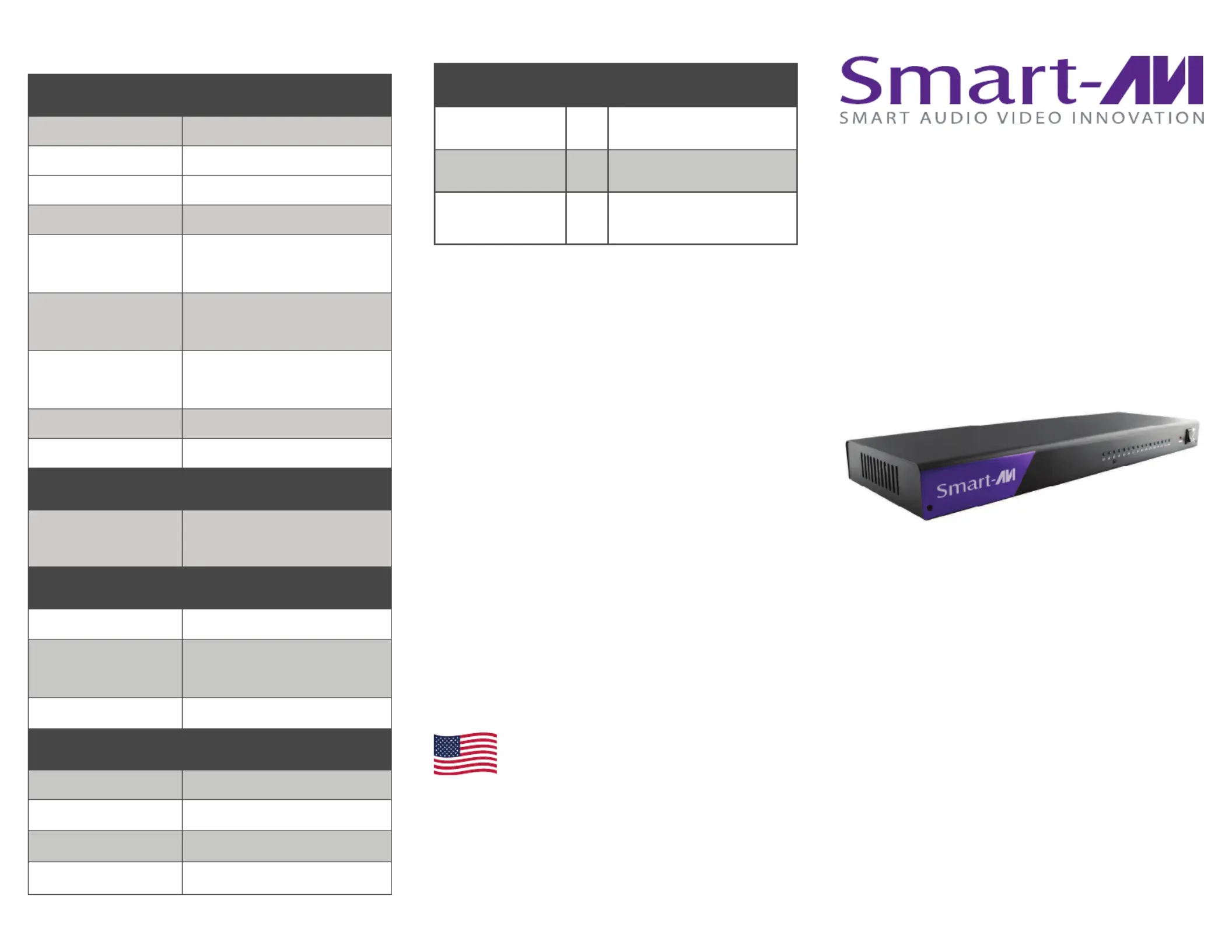

HDS‐16P
User Manual
User Manual
User Manual
User Manual User Manual
800.AVI.2131
Tel: (818) 503-6200 Fax: (818) 503-6208
|
|
|
||
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com
Designed and Manufactured in the USA
PART NO. QTY DESCRIPTION
HDS-16PS 1 HDMI 16 Port Splitter
Quick Start Guide 1
WHAT’S IN THE BOX
NOTICE
The information contained in this
document is subject to change without
notice. SmartAVI makes no warranty of any
kind with regard to this material, including
but not limited to, implied warranties of
merchantability and fitness for particular
purpose.
SmartAVI will not be liable for errors
contained herein or for incidental or
consequential damages in connection with
the furnishing, performance or use of this
material.
No part of this document may be
photocopied, reproduced, or translated
into another language without prior written
consent from SmartAVI Technologies, Inc.
20160722
Split any 4K/2K HDMI Signal to 16
Displays with no loss of quality
16-Port 4K/2K HDMI Splitter
TECHNICAL SPECIFICATIONS
VIDEO
HDMI Version HDMI 1.4b
HDMI Resolution Up to 3840X2160 @ 30Hz
Video Color Format Deep color 8/10/12 bit
Max Bandwidth 320MHz
Max Transmission
Bandwidth
3.2Gbps
HDMI Input Cable
Distance
1080p up to 15m (49.2 ft),
4K up to 12m (39.3 ft),
AWG 26 HDMI Cables
HDMI Output Cable
Distance
1080p up to 25m (82 ft),
4K up to 15m (49.2 ft),
AWG 26 HDMI Cables
HDMI Input 1
HDMI Output 16
AUDIO
Audio format
DTS-HD/Dolby-trueHD/Dolby-
AC3/DSD
POWER
Max Working Current 2.15A
Power Adapter Input
Input AC (50Hz, 60Hz) 100V-
240V
Power Adapter Output Output DC 12V/5A
OTHER
Weight 3.65 lps.
Dimensions 18.13W x 1.75 H x 6 D
Operating Temp -15 to +55C
Operating Humidity 5 to 90%RH No Condensation
INTRODUCTION
The HDS-16P HDMI splitter gives users the ability
to take a single HDMI input and route it to 16
displays with no loss of signal quality and a
simple, hardware-only implementation. There’s
no need for multiple source devices for multiple
HD displays when using this splitter. The HDS-
16P splitter supports HDMI features like 3D
video and 4K resolution & audio.
FEATURES
 Ultra HD | 4K 30Hz Resolution
 One HDMI 1.4b input signal split to 16 HDMI
1.4b outputs
 Digital audio format, with DTS-HD/Dolby-
trueHD/DTS/Dolby-AC3/DSD
 Input up to 15m (49.2 ft) AWG26 HDMI
Cables
 Output up to 25m (82 ft) AWG26 HDMI
Cables
 No loss of quality
 Hardware-only solution
APPLICATIONS
Restaurants/Bars
Home Entertainment
Wall Displays
Digital Media
Airports
Dealer Rooms
Control Rooms
Audio/Visual Presentations
Shopping Centers
Security
Point-of-Sale
Hotels/Resorts
CONNECTING THE HDS-16P
1. Turn off the HDMI device and the displays.
2. Connect an HDMI cable from the HDMI source to the input port on the HDS-16P.
3. Connect the displays to the HDMI outputs on the HDS-16P.
4. Connect the power supply to the HDS-16P.
5. Power on the HDMI device and the displays.

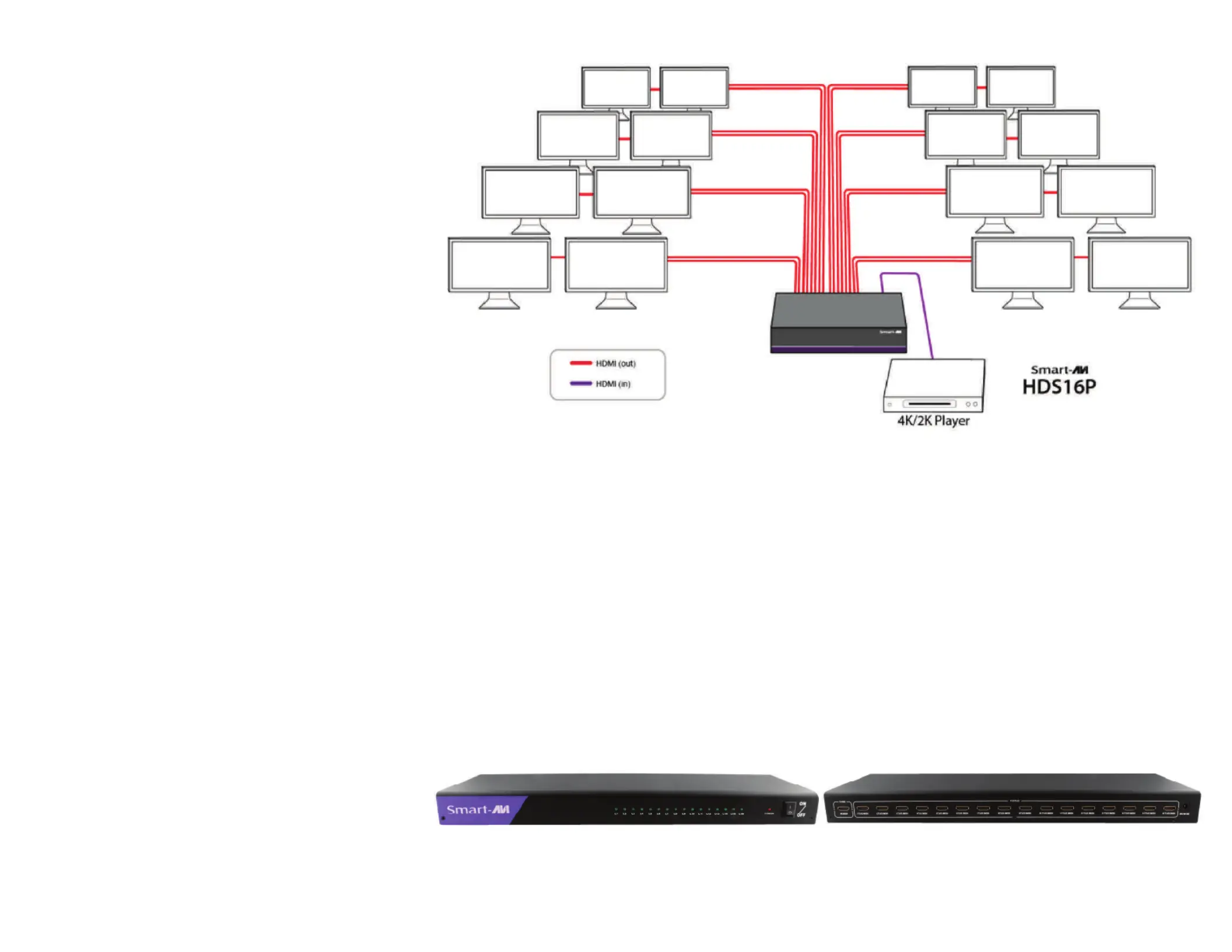

INSTALLATION DIAGRAM
FRONT REAR
