HDMI, USB 2.0 AND AUDIO

KVM DUAL FIBER EXTENDER

EXTEND DIGITAL VIDEO HDMI

4K@30HZ, USB 2.0,

USB KEYBOARD/MOUSE

AND AUDIO UP TO 10 KM

OVER SINGLE MODE FIBER

UNCOMPRESSED

Quick Start Guide

VIDEO

Format HDMI 2.0

Video Resolution Up to 3840 x 2160 @ 30 Hz

Video Bandwidth Single-link 340 MHz (10.2 Gbps)

Input Interface (TX) (1) HDMI 19-pin

Output Interface (RX) (1) HDMI 19-pin

Max Output Distance Up to 20 ft

Equalization Automatic

Input TMDS Signal 1.2 Volts [peak-to-peak]

Input DDC Signal 5 Volts [peak-to-peak, TTL]

Data Rate 1.65 Gbps per color

AUDIO

Format Stereo

Input Interface (TX) (1) 3.5mm (Female)

Output Interface (RX) (1) 3.5mm (Female)

USB

Input Interface (TX) (1) USB Type A

Output Interface (RX) (2) USB 1.1 Type A for KM Devices;

(2) USB 2.0 Type A Transparent

Keyboard and mouse Keyboard and mouse emulation

SYSTEM

Extension Type Fiber (LC-LC Duplex)

Cable Requirements Dual Fiber

Maximum Length Single mode: 10 km (6.2 miles)

Multi mode: 500 m (1640 feet)

OTHER

Power 100-240 VAC/ 5VDC @ 3A/15W

Dimensions 7.8” W x 1.15” H x 3.65” D

Weight 1 lb (.5 lbs per unit)

Approvals UL, CE, ROHS Compliant

Operating Temp. +32 to +104°F (0 to +40°C)

Operating Humidity 20% to 80% (non condensing)

Storage Temp. -4 to 140°F (-20 to +60°C)

Storage Humidity Up to 95% (No Condensation)

Compliance EMC FCC (Class A), CE (Class A), ICES-003

Compliance RoHS2 (CE)

Support Warranty 1-year

NOTICE

The information contained in this document is

subject to change without notice. SmartAVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and tness for particular purpose.

SmartAVI will not be liable for errors contained

herein or for incidental or consequential damages in

connection with the furnishing, performance or use of

this material.

No part of this document may be photocopied,

reproduced, or translated into another language

without prior written consent from SmartAVI

Technologies, Inc.

888.994.7427, 702.800.0005

2455 W Cheyenne Ave, Suite 112

North Las Vegas, NV 89032

SmartAVI.com

TECHNICAL SPECIFICATION

HFX-LT

WHAT’S IN THE BOX

PART NO. DESCRIPTIONQ-TY

HFX-LT-TX 1 HDMI, USB 2.0, Audio via

Dual Fiber Transmitter

HFX-LT-RX 1 HDMI, USB 2.0, Audio via

Dual Fiber Receiver

PS5VD3A-

WLLMNT 2 PS5VD3A Power Supply

Quick Start Guide 1

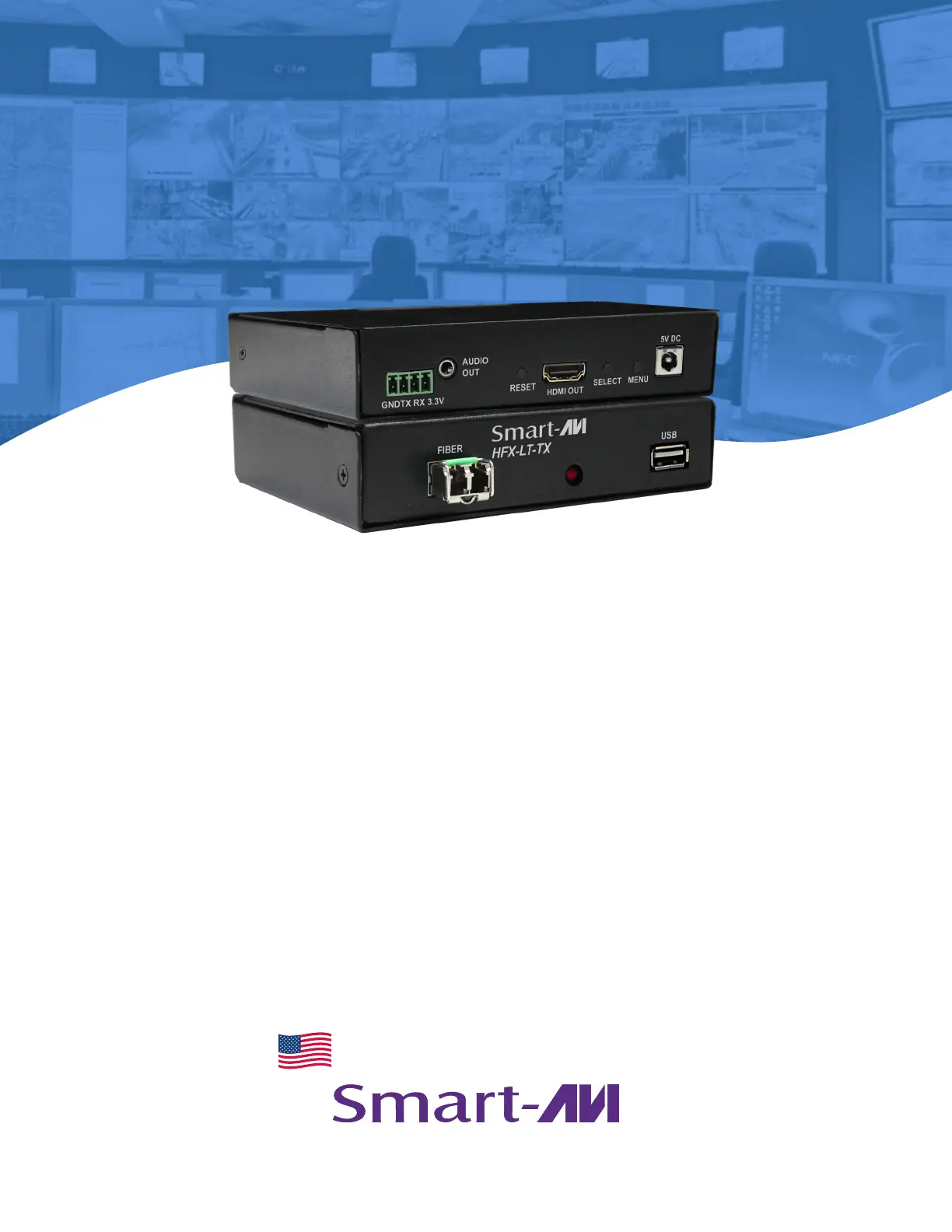

ABOUT HFX-LT

The HFX-LT is a Single Head HDMI (3840 x 2160), USB

2.0, USB keyboard-mouse and stereo audio extender,

sending signals up to 10 km (6.2 miles) away over a single

conventional and inexpensive a dual ber cable. This new

technology is superior to older HDMI extenders that require

a special dual ber shielded cable to go a short distance.

The HFX-LT is the rst extender on the market to feature

3840 x 2160, USB 2.0 and full KVM extension on one

cohesive system and is optimized for Full HD monitors with

crystal-clear picture; excellent for detail driven work.

The HFX-LT extends keyboard-mouse signals for remote

workow management and offers uninterrupted emulation

from the user’s transmitter unit. This uninterrupted

emulation prevents accidental disconnection or

deactivation issues during mission critical operations. The

HFX-LT‘s unparalleled KVM extension technology makes it

the perfect solution for extending servers in applications

ranging from data processing to interactive conferencing.

FEATURES

• Extends HDMI up to 10 km (6.2 miles) in the Single

Mode and up to 500 m (1640 feet) in the Multi Mode

from the source

• Supports up to 3840 x 2160 digital video

resolution @ 30 Hz

• USB Keyboard and Mouse extension

• Uncompressed Video

• External power adapter for transmitter and

receiver unit

• Supports Stereo Sound

• Compatible with Windows, Mac and Linux Operating

Systems

• Transparent USB 2.0 extension

1. Ensure that power is turned off or disconnected from the unit and the computers.

2. Use a HDMI cable to connect the HDMI output port from a computer to the HDMI IN port of the transmitter.

3. Use a USB cable (Type-A to Type-B) to connect a USB port on the computer to the respective USB port of the transmitter.

4. Optionally connect a stereo audio cable (3.5mm to 3.5mm) to connect the audio output of the computer to the AUDIO IN

port of the transmitter.

5. Connect the transmitter and receiver to each other using a single-mode duplex ber optic cable.

6. Connect a monitor to the HDMI OUT console port of the receiver using a HDMI cable.

7. Connect a USB keyboard and mouse to the two USB console ports of the receiver.

8. Optionally connect peripheral USB devices, such as a printer or a camera to the other two USB console ports of the

receiver.

9. Optionally connect stereo speakers to the AUDIO OUT port of the receiver.

10. Finally, power on the transmitter and receiver by connecting a 5VDC power supply to the power connector, and then turn

on the computer.

HARDWARE INSTALLATION

HFX-LT-TX Front

HFX-LT-TX Back

HFX-LT-RX Front

HFX-LT-RX Back

HDMI IN

HDMI OUT

USB IN

USB 2.0 OUT

USB K/M OUT

AUDIO IN

AUDIO OUT

FIBER

HFX-LT-RX

HFX-LT-TX

Produkt Specifikationer

Mærke:	Smart-AVI
Kategori:	Skifte
Model:	HFX-LT
