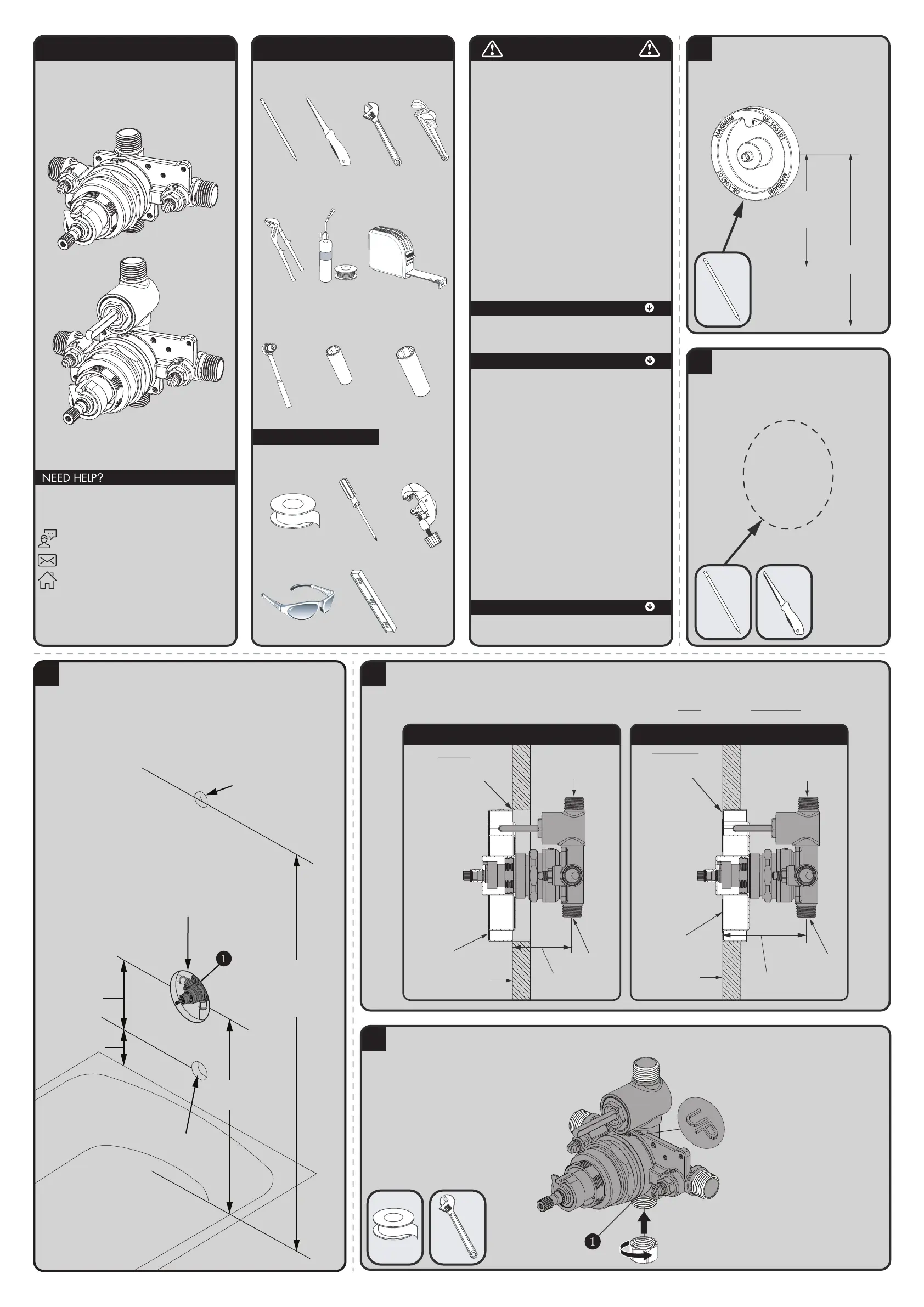

Side 1/4

INSTRUCTIONS FOR MODELS

92-CPV-T-03

For additional assistance or service please contact:

SPEAKMAN

800-537-2107

customerservice@speakman.com

www.speakman.com

CPV-T

CPV-T-DV

HELPFUL TOOLS & SUPPLIES:

TOOLS AND SUPPLIES

Pencil Keyhole

Saw

Adjustable

Wrench

Thread Seal

Tape

9/16” (14mm)

Deep Well Socke

Socket

Wrench

Pipe

Wrench

Solder Kit

Phillips

Screwdriver

Measuring

Tape

Safety

Glasses

Tubing

Cutter

Level

Slip Joint

Wrench

13/16” (20mm)

Deep Well Socke

Warranty information can be found at:

www.speakman.com

WARRANTY

Your new Shower/Bath Valve is designed for years of

trouble-free performance. Keep it looking new by

cleaning it periodically with a soft cloth. The use of

harsh chemicals and abrasives on any of the Speakman

custom finish products may damage the finish and void

the product warranty. Please be sure to only use

approved cleaners. Please contact Speakman for any

clarification of acceptable cleaners.

MAINTENANCE

Cover your drain to prevent loss of parts. Be sure to

wear eye protection while cutting pipe.

SAFETY TIPS

IMPORTANT

• Be sure to read instructions thoroughly before

beginning installation.

• Be sure to have properly adjusted the Temperature

Limiting Stop (TLS) as outlined in this Installation

Manual.

• Inspect all connections after installation of valve.

• This valve has an operating range of 20-80 psi.

• This valve is designed to be used in conjunction

with a shower-head rated at 1.5 gpm (5.7 L/min)

or higher flow rate.

• NOTE: This installation manual covers several

models of valves. While the appearance of your

valve may differ from those shown, the installation

method is the same.

• Maximum water pressure: 125 psi static; minimum

water pressure: 20 psi flowing; minimum cold

supply temperature: 40 °F; maximum hot supply

temperature: 160 °F; minimum hot supply

temperature: 5 °F above set point.

This type of valve must be cleaned and maintained on a

regular basis. Periodic maintenance should be

performed at least every 12 months or after any

changes have been made to the building’s plumbing

system. This maintenance should include removing and

cleaning the spring check stop components. Make sure

the stop poppet in each stop moves freely. Valves that

are installed outdoors should be winterized by removing

all of the internal parts and removing any standing

water from the valve. Quarterly the maximum hot

temperature setting (TLS) should be checked and

adjusted accordingly.

Referencing the supplied rough-in dimensions

(located at the end of this manual), determine the

preferred location of valve. Align the supplied

Rough-In Template with this location and trace

outline of template onto wall.

1’-9” (533mm)

TO CENTERLINE

OF TUB SPOUT

(FOR TUB INSTALLATION)

4’-6” (1.4m)

TO FLOOR

(SHOWER INSTALLATION)

Using a Keyhole Saw or similar tool, cut along

traced line and remove this section of wall.

Shut off the water supply to the Tub and Shower. Verify that the hole sizes and

positions in the wall are correct:

A. The shower and tub spout outlet holes should be 1” diameter.

B. To determine the Valve mounting depth, see STEP 4.

C. The recommended Valve depth to the finished wall is 2½” minimum to 3½”

maximum. Position the Valve Body ❶ correctly in the wall with the “UP” pointing

up. The 1’-9” minimum from the Valve Body to the Tub Spout is required for

proper operation.

4’-6” (1.4 meters)

Shower Only

1’-9”

(533mm)

Tub/Shower

6’-6” (1.4 meters)

Tub/Shower

Shower Only

Ø1” Hole for Shower Arm

Ø1” Hole for Tub Spout

ØSee Step 4

4”

(102mm)

Tub/Shower

Install the Rough-In Template over the Shower Valve and slide the O-ring (small) over the Spindle to ensure that the Rough-In

Template sits flush against the Valve. Following the rough-in dimensions for your model of Valve (located ot the end of this

manual) as well as the markings on the supplied Rough-In Template, install Valve at proper depth. The distance from the

centerline of the inlet/outlet ports of the Valve Assembly to the finished wall MUST be between 2½” - 3½”. See images

below for reference.

SHOWER OUTLET

TUB OUTLET

ROUGH-IN TEMPLATE

THE BACK EDGE OF THE

ROUGH-IN TEMPLATE IS

FLUSH WITH OR INSIDE

THE VALVE ACCESS HOLE.

FINISHED WALL SURFACE

2½” MINIMUM

MOUNTING DEPTH

MINIMUM MOUNTING DEPTH

SHOWER OUTLET

TUB OUTLET

ROUGH-IN TEMPLATE

THE FRONT SURFACE OF

THE ROUGH-IN TEMPLATE

IS FLUSH WITH OR OUTSIDE

THE VALVE ACCESS HOLE.

FINISHED WALL SURFACE

3½” MAXIMUM

MOUNTING DEPTH

MAXIMUM MOUNTING DEPTH

If your installation is for a shower only, apply Thread Seal Tape in a clockwise direction to the Tub Outlet Port ❶ and install the included Plug

Cap. Wrench tighten. If you are performing a pipe fitting installation, apply Thread Seal Tape around all pipe threads in a clockwise direction.
