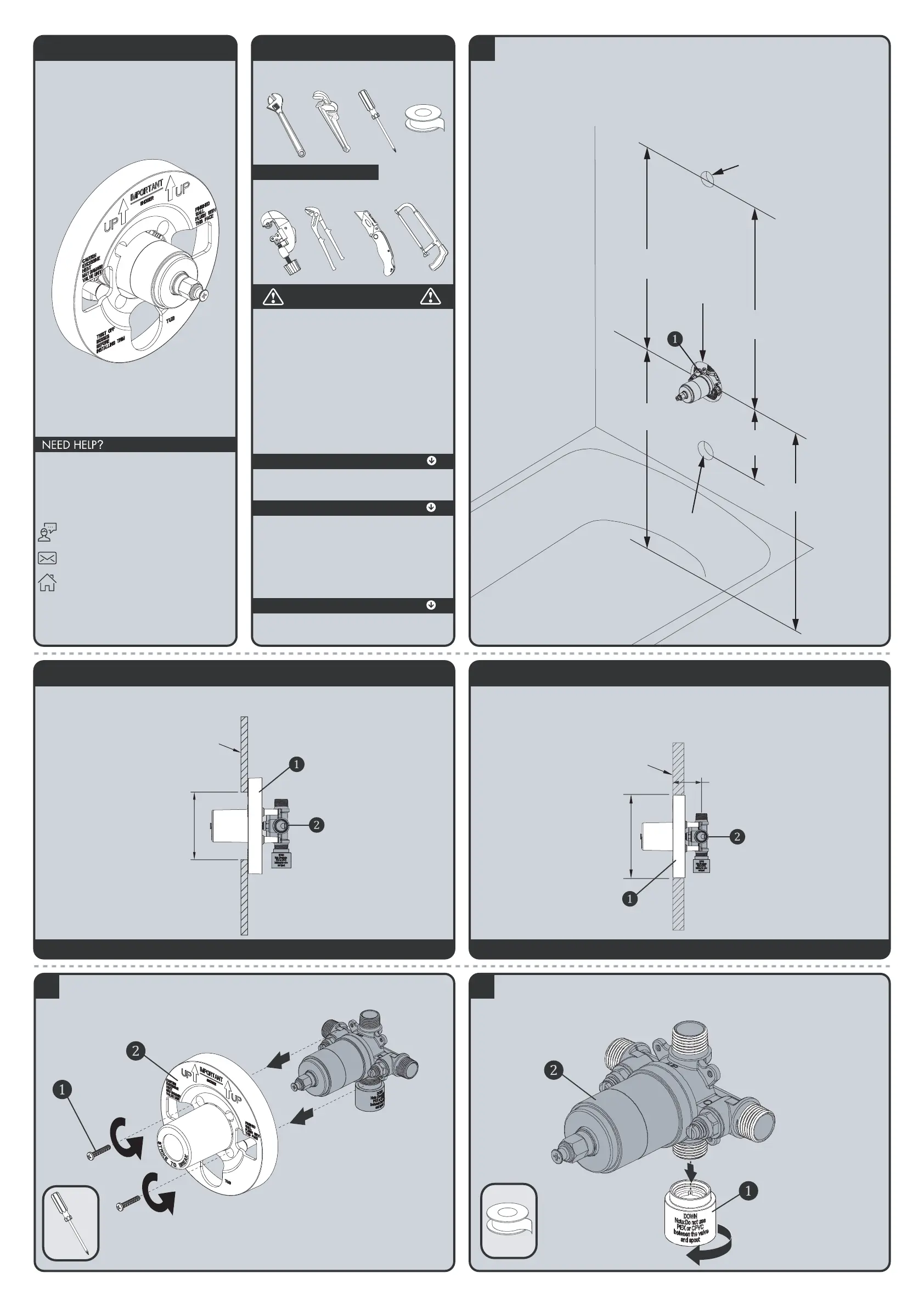

INSTRUCTIONS FOR MODELS

92-CPV-12000-02

For additional assistance or service please contact:

SPEAKMAN

Company

400 Anchor Mill Road

New Castle, DE 19720

800-537-2107

customerservice@speakman.com

www.speakman.com

SM-12000

Valve Installation

HELPFUL TOOLS & SUPPLIES:

TOOLS AND SUPPLIES

IMPORTANT

Adjustable

Wrench

Slip Joint

Wrench

Phillips

Screwdriver

Thread Seal

Tape

Tubing

Cutter

Pipe

Wrench

Utility

Knife

Hacksaw

Cover your drain to prevent loss of parts. Be sure to

wear eye protection while cutting pipe.

SAFETY TIPS

• Be sure to read instructions thoroughly before

beginning installation.

• Be sure to have properly adjusted the Temperature

Limiting Stop (TLS) as outlined in this Installation

Manual.

• Inspect all connections after installation of valve.

• This valve has an operating range of 20-80 Psi.

• This valve is designed to be used in conjunction

with a shower-head rated at 1.75 gpm (6.6 L/min)

or higher flow rate.

Additional warranty information can be found at:

www.speakman.com

MAINTENANCE

WARRANTY

Your new Shower/Bath Valve is designed for years of

trouble-free performance. Keep it looking new by

cleaning it periodically with a soft cloth. The use of

harsh chemicals and abrasives on any of the Speakman

custom finish products may damage the finish and void

the product warranty. Please be sure to only use

approved cleaners. Please contact Speakman for any

clarification of acceptable cleaners.

Shut off the water supply to the tub and shower. Verify that the hole sizes and positions in the wall are correct:

A. The shower and tub spout outlet holes should be 1¼” diameter.

B. To determine the Valve access hole size, see STEP 2A and STEP 2B.

C. The recommended valve depth to the finished wall is 1½” minimum to 2½” maximum. Position the valve body

(1) correctly in the wall with the “UP” pointing up. The 8” minimum from the valve body to the tub spout is

required for proper operation.

30”

Shower Only

48”

Shower Only

48”

Tub & Shower

8”

Minimum

30”

Tub & Shower

Ø1¼” Shower Outlet

Ø1¼” Tub Outlet

ØSee Step 2

2A THIN WALL INSTALLATION

NOTE: Be sure to position the body (2) correctly in the wall, with the markings "UP" facing upward.

“Thin Walls”are usually built up with materials such as a fiberglass tub surround and will be the main source of support

for the valve. The plaster guard (1) remains attached to the valve (2). If you are performing a “Thin Wall” installation,

proceed to STEP 3.

FINISHED WALL

Ø 3-3/8 in” - 5”

2B THICK WALL INSTALLATION

NOTE: Be sure to position the body (2) correctly in the wall, with the markings "UP" facing upward.

“Thick Walls”are usually built up with materials such as cement board, drywall, tile, etc. The plaster guard (1) is

positioned so that it is flush with the finished wall. This ensures that the valve will be at the correct position to accept the

trim. The depth for valve body (2) in wall is measured from center of Valve inlets to finished wall surface. The accepted

depth distance is 1½” - 2½”. When the depth distance is 1½” - 2”, there will be interference between the plaster guard

and escutcheon, we suggest removing the plaster guard after the wall installation.

Ø6”

FINISHED WALL

1½”-2½”

Unscrew the screws (1), and remove the plaster guard (2),

Remove the protective cap (1) from the valve body (2). If you are performing a pipe fitting installation, wrap

thread sealant tape (not included) around the pipe threads in a clockwise direction.
