INSTRUCTIONS FOR MODELS
92-CPT-5001-01
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
customerservice@speakman.com
www.speakman.com
CPT-5001 / CPT-5401
TOOLS AND SUPPLIES
Phillips
Screwdriver
Silicone Caulk Gun
Additional warranty information can be found at:
www.speakman.com
WARRANTY
MAINTENANCE
Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
SAFETY TIPS
IMPORTANT
• Be sure to read instructions thoroughly before
beginning installation.
• Do not over-tighten any connections or damage
may occur.
• This valve has an operating range of 20-80 psi.
Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives on any of the Speakman custom
finish products may damage the finish and void the
product warranty. Please be sure to only use approved
cleaners. Please contact Speakman for any clarification
of acceptable cleaners.
1

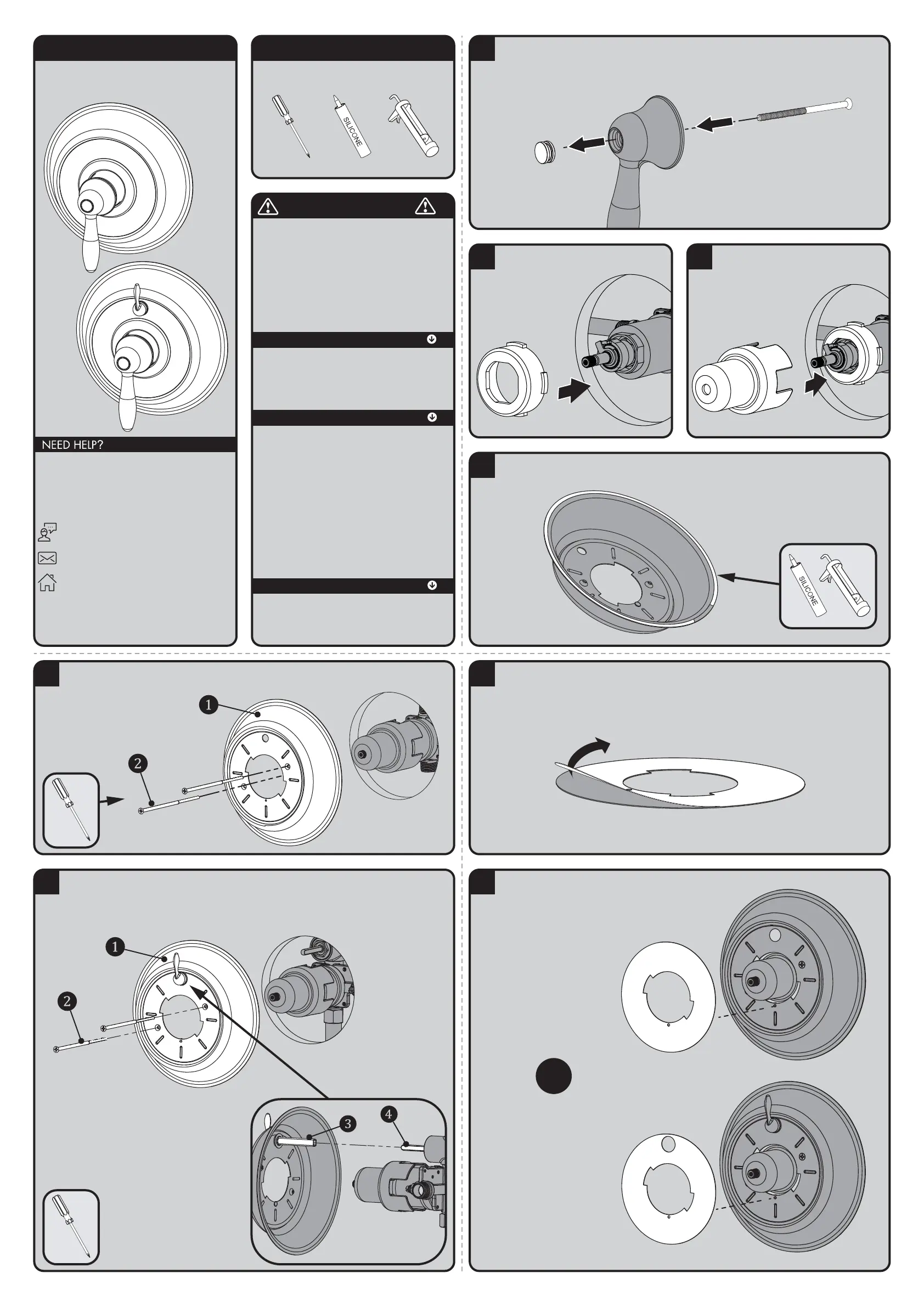

Remove the Handle Button Screw by inserting one of the included Mounting Screws thru the hole in the Handle.
2
Insert the T/P Rubber Sleeve with Tabs over
Valve Bonnet.
3
Be sure to have properly adjusted the Temperature
Limiting Stop (TLS) as per the Valve Installation
Instructions before installing
Valve Trim. Slide Trim Sleeve
over the Rubber Sleeve.
Ensure the tabs are
properly seated within
the grooves of the
Trim Sleeve.
4
Clean wall surface. Orient Wall Plate as shown below. Apply clear silicone sealant to the backside outer flat
surface of the Wall Plate, while leaving a small area open at the bottom. This will allow for any moisture to drain.
5A
FOR CPT-5001 - Align the Wall Plate (1) as shown below. Secure to Valve with the included Mounting Screws
(2). Take care to not over tighten Mounting Screws. Remove excess sealant after securing Wall Plate to wall.
5B
FOR CPT-5401 - Align the Wall Plate (1) as shown below. Verify the Diverter Valve Stem is in the OFF (vertical)
position. Align the Diverter Drive Tube (3) on the Wall Plate to the Stem (4) of the Diverter Valve. Secure to Valve
with the included Mounting Screws (2). Take care to not over tighten Mounting Screws. Remove excess sealant
after securing Wall Plate to wall.
* VIEW FROM BACK OF WALL PLATE
6
Remove protective film from Trim Index Plate.
7
OR
CPT-5001: Slide Index Plate over
the Trim Sleeve. Align Index Plate
with the small Alignment Pin on the
Wall Plate, and hold Index Plate in
place for the next step.
CPT-5401: Slip the upper hole of
the Index Plate over the Diverter
Handle and then align the large hole
of the Index Plate over the Trim
Sleeve. Align Trim Index Plate with
the small Alignment Pin on the Wall
Plate, and hold Index Plate in place
for the next step.
