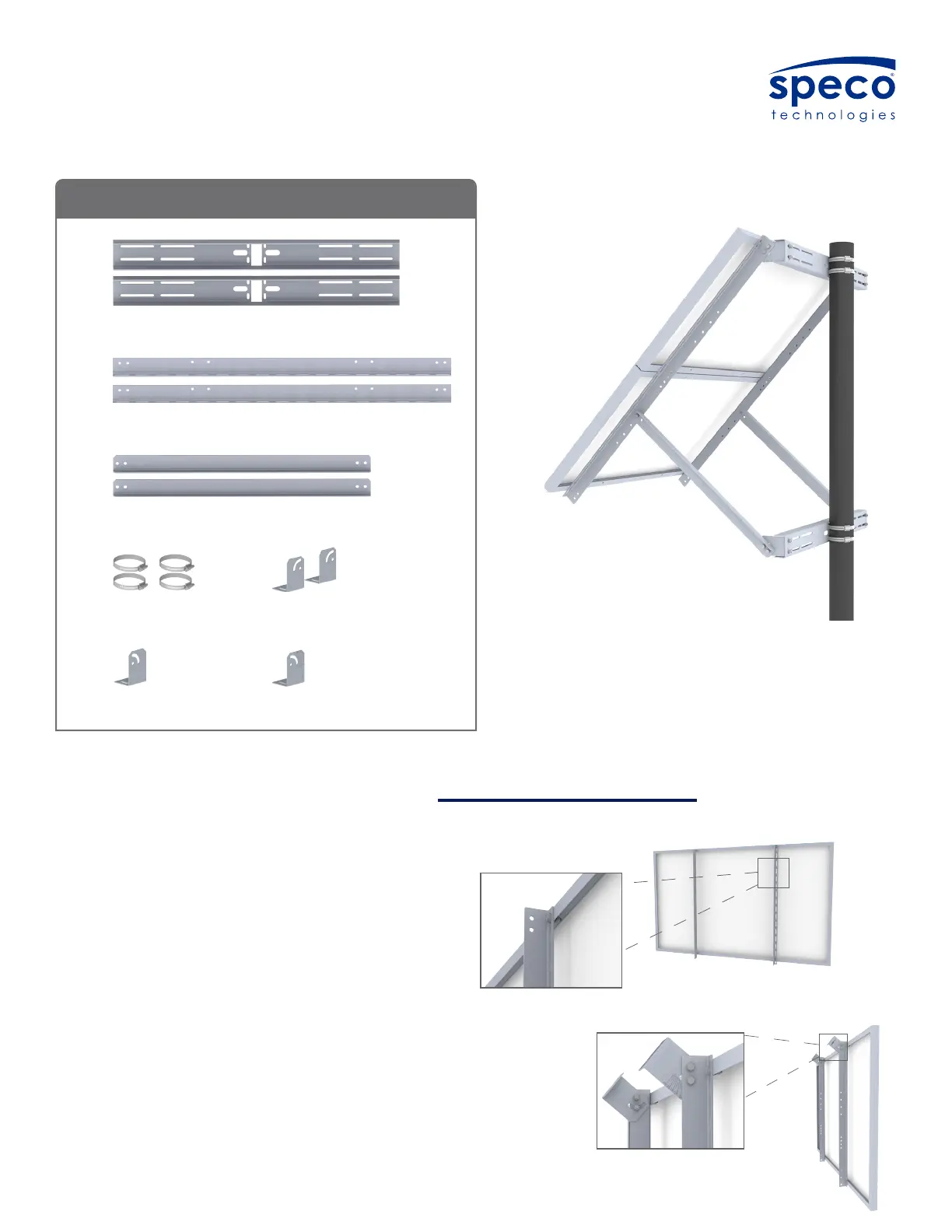

SXA200 | SXA300 | SXA400

STEP 1

1. Mount the Long Rails (SPM-A-55 or SPM-A-42)

to the Solar Panel using the existing holes on

the rear of the panel.

2. Bolt 4 points per Solar Panel.

3. Max width between holes should be 38”

(drilling may be required).

STEP 2

1. Panels should face directly south.

2. Attach the engraved SPM-LB-L-ENG and (1) SPM-LB-R to

the SPM-A-55 or SPM-A-42 rails using the provided hardware.

Attach the two SPM-A-32 braces to the

lower SPM-C-35.

Assembly

Step 1

Step 2

Step 3

Step 4

Step 5

Mount the long Rails (SPM-A-55 or SPM-A-42) to the

Solar Panel using the existing holes on the rear of

the panel. Bolt 4 points per Solar Panel.

Max width between holes should be 38” (drilling

may be required).

Panels should face directly south. Attach the engraved SPM-

LB-L-ENG and (1) SPM-LB-R to the SPM-A-55 or SPM-A-42

rails using the provided hardware. Set the adjustment

angle using the calculator found by scanning the QR Code

or at:

http://www.vorpenergy.com/resources/calculators/

Attach the two SPM-C-35 channels to the pole using the provided hose clamps. Tighten

the hose clamps of the upper SPM-C-35 at the height the top of the solar panel will

be mounted. Leave the two lower hose clamps slightly loose so the lower SPM-C-35

can be adjusted later. Attach the second pair of clips, SPM-LB-L and SPM-LB-R to the

lower SPM-C-35.

Attach the solar panel assembly completed in step two, to the upper SPM-C-35.

Attach the SPM-A-32 braces to the appropriate holes in the SPM-A-55 or

SPM-A-42 rails. Check that the angle is correct and tighten all the bolts. To

adjust the angle, loosen the appropriate bolts and hose clamps that hold the

lower SPM-C-35. Lower or raise the lower SPM-C-35 and re-tighten all hose

clamps and bolts.
