Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: October 11, 2023 9:32 AM

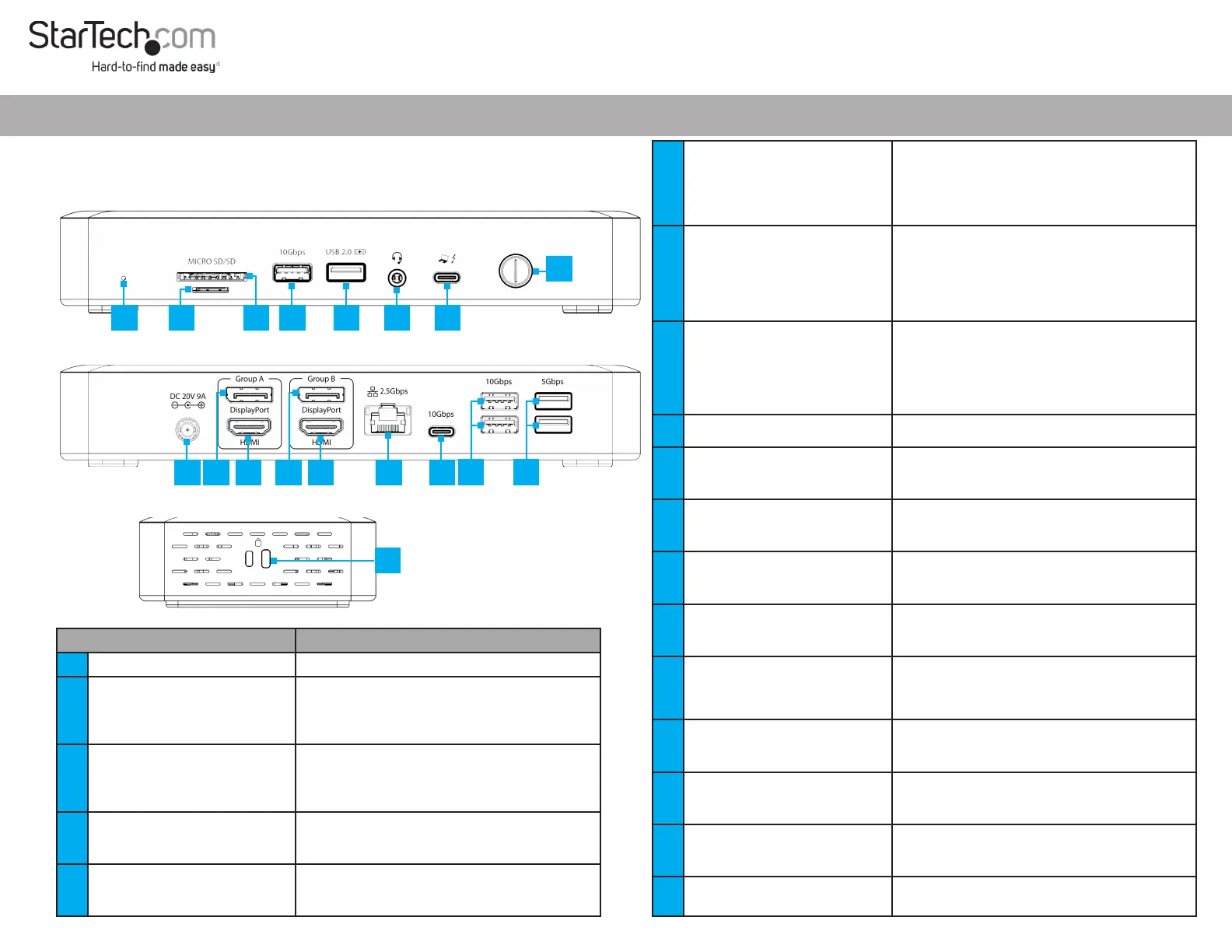

Product Diagram (Side A)

Thunderbolt 4/USB4 Dock, Quad Display, 7x USB, 2.5GbE, 98W Power Delivery

(Side B)

Product ID

132N-TB4USB4DOCK / 132UE-TB4USB4DOCK

(Side C)

Component Function

1 Power Button

• Press and Release to Toggle Power for the Dock

Thunderbolt 4 Host Port

(USB Type-C)

• Connect to a Thunderbolt 4 Port on a Host Computer

• Thunderbolt 3/USB4 (40 Gbps)

• Power Delivery 3.0 Specication

• Capability of charging the Host Computer up to 98W

3 3.5mm Headset Jack

• Connect a 3.5mm Audio Device

• 4-Position CTIA

• Mono Audio Input

• Stereo Audio Output

4 USB-A Data/Charge Port

• Connect and/or Charge a USB-A Peripheral

• USB 2.0 (480Mbps)

• Supports 7.5W BC 1.2 Charging (5V/1.5A)

5 USB-A Data Port

• Connect a USB-A Peripheral

• USB 3.2 Gen 2 (10 Gbps)

• Supports 4.5W of Power (5V/0.9A)

129

6 SD Card Reader

• Secure Digital (SD) 4.0 UHS-II, SD 3.0, 2.0, 1.1, and 1.0

compatibility

• Push an SD Card, label side up, into the SD Card Slot

• Note: The Host Computer’s Operating System (OS)

will automatically detect the SD Card and install the

required driver software

7 MicroSD Card Reader

• Micro Secure Digital (microSD) 4.0 UHS-II, microSD

3.0, 2.0, 1.1, and 1.0 compatibility

• Push a microSD Card, label side down, into the

microSD Card Slot

• Note: The Host Computer’s Operating System (OS)

will automatically detect the SD Card and install the

required driver software

8 Status LED

• Illuminates Green, When the Dock is Connected to a

Host Computer

• Illuminates White, When the Dock is Not Connected

to a Host Computer

• Does Not Illuminate, When the Dock is Turned O

9 DC 20V Port

• Connect the Dock to a Power Source, using the

Universal Power Adapter

DisplayPort Port

(Group A)

• Connect a DisplayPort Display as Video Output #1

• DisplayPort 1.4

• Resolutions up to 7680 x 4320 60Hz

HDMI Port

(Group A)

• Connect an HDMI Display as Video Output #2

• HDMI 2.1

• Resolutions up to 7680 x 4320 60Hz

DisplayPort Port

(Group B)

• Connect a DisplayPort Display as Video Output #3

• DisplayPort 1.4

• Resolutions up to 7680 x 4320 60Hz

HDMI Port

(Group B)

• Connect an HDMI Display as Video Output #4

• HDMI 2.1

• Resolutions up to 7680 x 4320 60Hz

14 2.5 Gigabit Ethernet Port

• Connect the Dock to a Network Device, using a

Network Cable

• 2.5GBASE-T / 1000BASE-T / 100BASE-T / 10BASE-T

• 2.5Gbps/1000Mbps/100Mbps/10Mbps

15 USB-C Data Port

• Connect a USB-C Peripheral

• USB 3.2 Gen 2 (10 Gbps)

• Supports 4.5W of Power (5V/0.9A)

16 2x USB-A Data Ports

• Connect USB-A Peripherals

• USB 3.2 Gen 2 (10 Gbps)

• Supports 4.5W of Power (5V/0.9A)

17 2x USB-A Data Ports

• Connect USB-A Peripherals

• USB 3.2 Gen 1 (5 Gbps)

• Supports 4.5W of Power (5V/0.9A)

2x Lock Slots

(Standard & Nano)

• Connect a K-Slot Style Locking Device to deter the

theft of the Docking Station

567

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Andet computertilbehør
Model:	132N-TB4USB4DOCK
Tænd-/slukkontakt:	Ja
Vekselstrømsindgangsspænding:	110 - 240 V
Bredde:	210 mm
Dybde:	96 mm
Højde:	34 mm
Vægt:	200 g
Produktfarve:	Grå
Pakkevægt:	1400 g
Pakkedybde:	145 mm
Pakkebredde:	235 mm
Pakkehøjde:	90 mm
Kompatible hukommelseskort:	MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
HD-type:	8K Ultra HD
Opbevaringstemperatur (T-T):	-20 - 70 °C
Relativ luftfugtighed ved drift (H-H):	0 - 95 %
Antal HDMI-porte:	2
Ethernet LAN-porte (RJ-45):	1
Antal USB 2.0-porte:	1
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	2
Udgange til hovedtelefoner:	1
Ethernet LAN:	Ja
Driftstemperatur (T-T):	0 - 40 °C
Ethernet LAN-datahastigheder:	10,100,1000,2500 Mbit/s
Husmateriale:	Aluminium
Hurtig start guide:	Ja
Kabler inkluderet:	Thunderbolt
Forbindelsesteknologi:	Ledningsført
Strømforbrug (maks.):	180 W
DC-in-stik:	Ja
LED-indikatorer:	LAN, Power
Strømkilde type:	DC
Udgangsspænding:	20 V
Udgangsstrøm:	9 A
AC-adapter inkluderet:	Ja
Indbygget kortlæser:	Ja
Bæredygtighedscertifikater:	RoHS
Slot til kabellås:	Ja
Understøttede Windows-operativsystemer:	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Understøttede Mac-operativsystemer:	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Hovedkassen højde (udvendigt):	285 mm
Hovedkassens længde (udvendigt):	310 mm
Hovedkassens bredde (udvendigt):	380 mm
Værtsgrænseflade:	Thunderbolt 4
Tilslutning af hovedtelefoner:	3,5 mm
Indgangsstrøm:	2.5 A
Maksimal opdateringshastighed:	60 Hz
HDMI-version:	2.1
DisplayPort-version:	1.4
Antal DisplayPorts:	2
Kabellåseslids type:	Kensington, Nano
Produkter pr. hovedkasse (udvendigt):	4 stk
Fuld duplex:	Ja
Overholdelse af bæredygtighed:	Ja
Kombineret hovedtelefon/mikrofon-port:	Ja
Kobber ethernet kabelteknologi:	2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T
Maksimal digital opløsning:	7680 x 4320 pixel
Dataoverførselshastighed:	40 Gbit/sek.
USB strømforsyning revision:	3.0
USB strømforsyning:	Ja
Kompatible strømplug typer:	US
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte:	1
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte:	3
Understøtter UASP:	Ja
Chipsæt:	Intel - JHL8440, Cypress - HX3PD, Parade - FL5801, Realtek - RTL8156BG, Genesys Logic - GL3231S, Realtek - ALC4030U, Realtek - RTD2188, Cypress - CCG5, TI - TPS2546
