Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: April 3, 2023 9:50 AM

Product ID

C2-H46-UAC-CBL-KVM

Top

Sides

Front

2-Port USB-C and HDMI/USB-A Cable KVM Switch - HDMI - 4K 60Hz

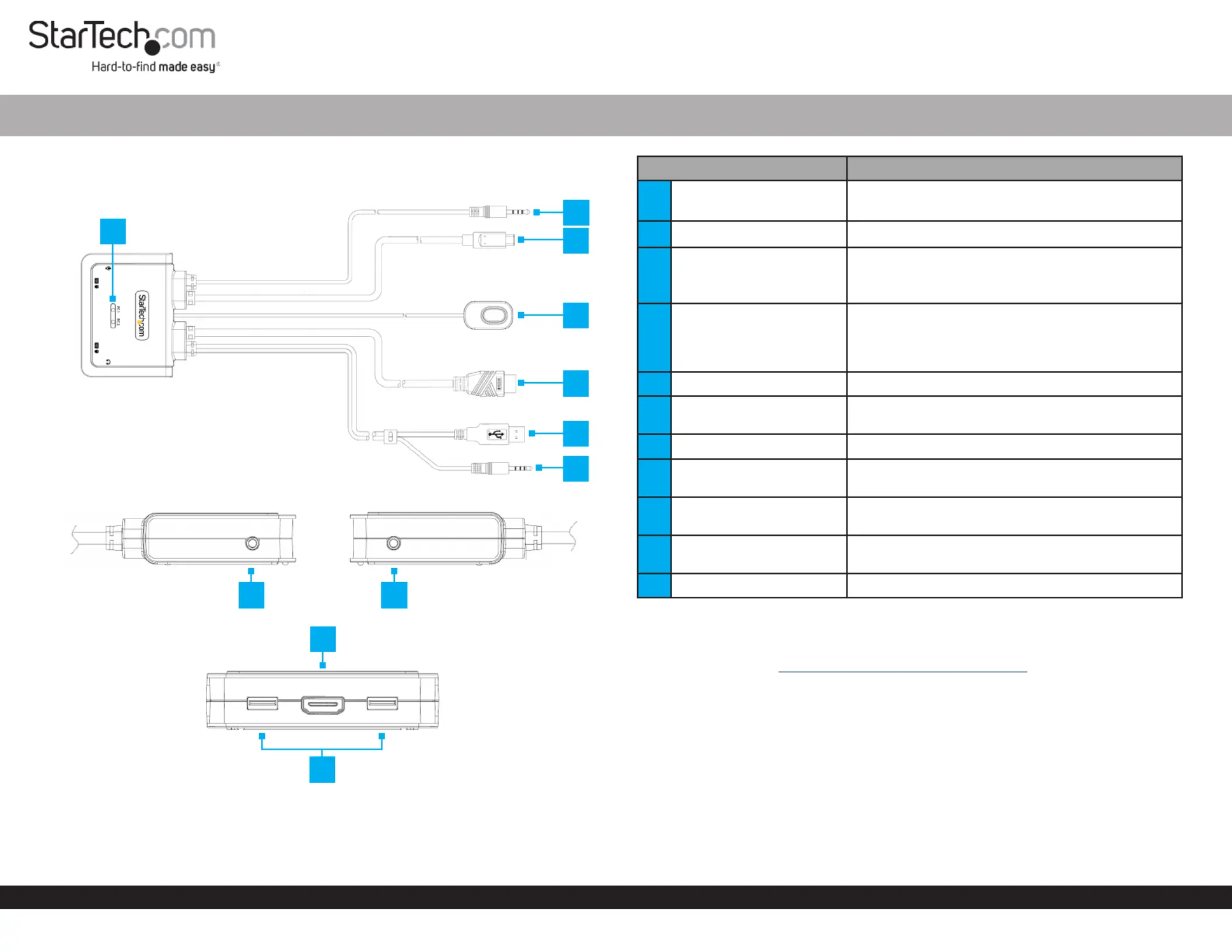

Component Function

1LED Indicators

• Solid Green = Selected PC is connected

• Blinking Green = Selected PC is not detected

2PC 1 Audio Connector • Connect to a on3.5mm Headset Port PC 1

PC 1 USB-C Host

Connector

• Connect to a on USB-C Port PC 1

• For full functionality Host Computer USB-C

Port DP-Alt Modemust support

4Remote Port Selector

• A wired button used to switch between PC 1

and PC 2

• Press and Release the to switch Remote Switch

between and PC 1 PC 2

5PC 2 HDMI Connector • Connect to an HDMI Enabled Computer

PC 2 USB-A Host

Connector

• Connect to a on USB-A Port PC 2

7PC 2 Audio Connector • Connect to a on3.5mm Headset Port PC 2

Console Microphone

Port

• Pink: MicrophoneConnect a

9Console Audio Output

• Green: Audio DeviceConnect an (ie. Speakers

or Headphones)

Console HDMI Output

Port

• Connect to an HDMI Display

11 Console USB HID Ports • Connect a and USB Mouse Keyboard

Product Information

For the latest manuals, product information, technical specications, and declarations of

conformance, please visit: www.StarTech.com/C2-H46-UAC-CBL-KVM

Package Contents

• KVM Switch x 1

• 3.5mm 4 Position to 2x 3.5mm 3 Position Headset Adapter x 1

• Quick-Start Guide x 1

8 9

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could

void the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two

conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique

subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

Safety Measures

• If product has an exposed circuit board, do not touch the product under power.

Mesures de sécurité

• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.

安全対策

• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。

Misure di sicurezza

• Se il prodotto p2-ha un circuito stampato visibile, non toccare il prodotto quando è acceso.

Säkerhetsåtgärder

• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com

Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com

Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

Connect the Console

1. Connect a to the , located on the USB Mouse and Keyboard Console USB HID Ports

front of the .KVM Switch

2. Connect an from the , to the , HDMI Cable HDMI Display Console HDMI Output Port

located on the front of the . KVM Switch

3. (Optional) Connect a from the or3.5 mm Audio Cable Stereo Speakers

Headphones Speaker Audio Port KVM to the (green), located on the side of the

Switch.

4. (Optional) Connect a from the to the 3.5 mm Audio Cable Microphone Microphone

Audio Port KVM Switch. (pink), located on the side of the

Operation

Switching with the Remote Port Selector

To switch between which is active, press and release the button on Host Computer

the .Remote Port Selector

Software Operation

Install the on each computer connected to the KVM Switching Software KVM Switch

to use features such as autoscan, xed audio, and more.

Note: To download the latest KVM Switching Software, please visit:

www.StarTech.com/C2-H46-UAC-CBL-KVM

Hotkey Reference Guide

Note: Each hotkey sequence keystroke should be pressed within two seconds.

Keyboard with Scroll Lock: ComputersTo switch the hotkey combination is Scroll

Lock + Scroll Lock + 1 - 2

Keyboard with no Scroll Lock: Use the available software to dene the new hotkey

sequence

Requirements

• HDMI Enabled Computer x 1

• USB-C DisplayPort Alt-mode Enabled Computer x 1

• HDMI Cable x 1

• HDMI Display x 1

• USB HID Devices (Keyboard / Mouse) x 2

• (Optional) Microphone x 1

• (Optional) Powered/Active Stereo Speakers or Headphones x1

• (Optional) Headset x 1

Note: A Headset may require the use of a Headset Adapter. Please check with the

manufacturer of the Headset for more details.

Installation

Connect the Computers

Note: Power o all Computers, Displays, and Peripherals before completing the

following installation steps.

1. Connect the built-in to a on PC 1 USB-C Host Connector USB-C Port PC 1.

Note: For full functionality must support Host Computer USB-C Port DP-Alt Mode

2. (Optional) Connect the built-in to a on PC 1 Audio Connector 3.5mm Headset Port

PC 1.

3. Connect the built-in to a on PC 2 USB-A Host Connector USB-A Port PC 2.

4. Connect the built-in to an on PC 2 HDMI Connector HDMI Output Port

PC 2.

5. (Optional) Connect the built-in to a on PC 2 Audio Connector 3.5mm Headset Port

PC 2.

Note: If PC 2 has separate Headphone and Microphone ports, you may need to use the

included .3.5mm 4 Position to 2x 3.5mm 3 Position Headset Adapter
