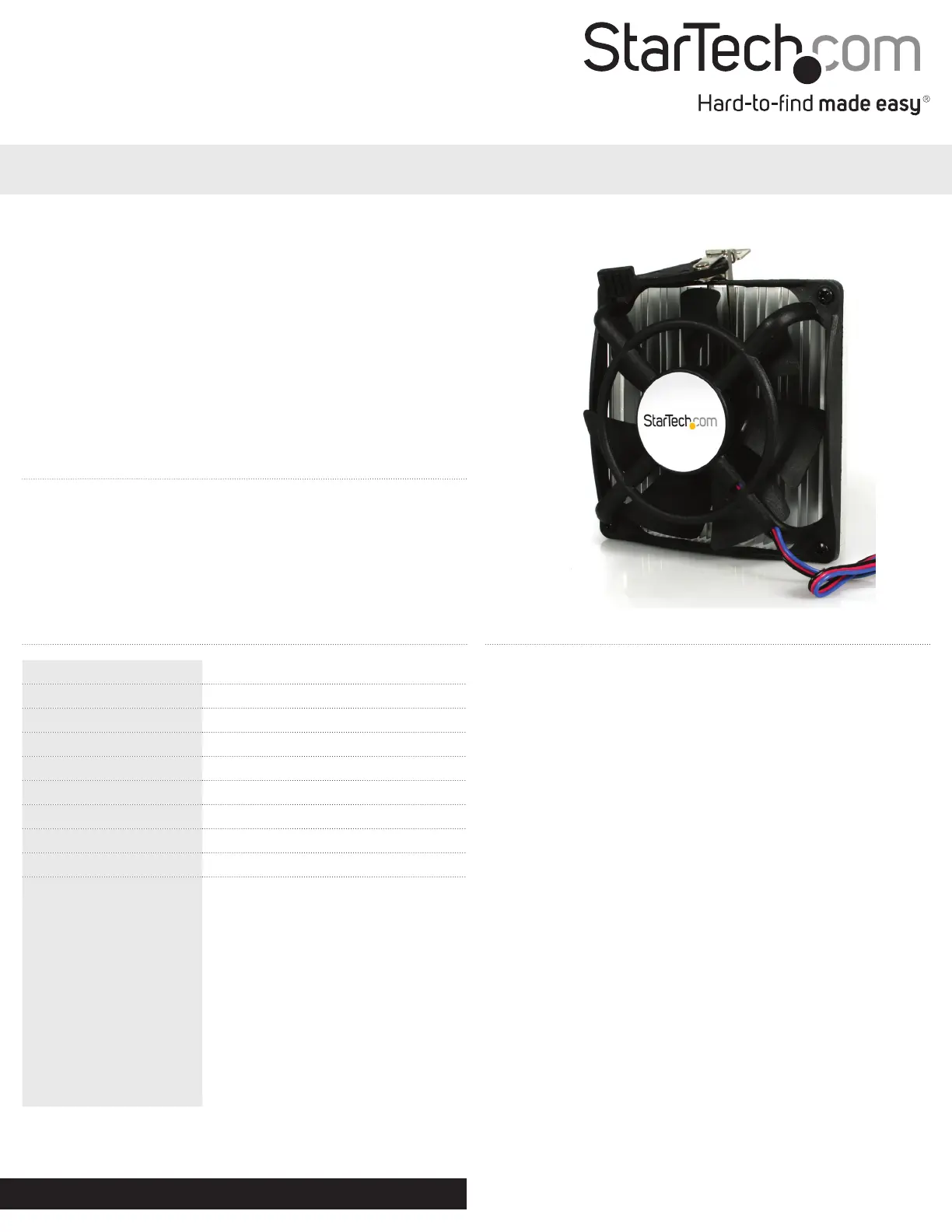

Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 03/02/2012

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• Heatsink and Fan

• Instruction Manual

• Thermal Compound

FANK8AM2

92x25mm AMD Ball Bearing CPU Cooler

Fan w/ TX3 Connector

*actual product may vary from photos

Specications

Fan Dimensions 70 x 70 x 10 mm

Heatsink Dimensions 107 x 71.8 x 25.5 mm

Bearing Type Dual Ball Bearing

Heatsink Base Material Copper

Fan Material Plastic

Rated Voltage 12 V

Noise Level <36 dB

Air Flow Rate 25.63 CFM

Connector Types 1 x TX3 Female

Best Fit Applications

Designed for AMD Socket AM2 series,

typically found in Server class systems

with 1U low prole design:

AMD Opteron 1210HE - 1218 HE(to

65w)

AMD Sempron 2800+ - 3800+(to 62w)

AMD Sempron LE1100 - LE1250(to

45w)

Athlon 64 3000+ - 4000+(to 65w)

Athlon 64 LE1600 - LE1620(to 62w)

Athlon 64 p1-x2 3600+ - 5200+(to 65w)

Athlon X2 BE2300 -BE2400(to 45w)

Installation

1. From the underside of the motherboard, position the Fastening

Plate under the CPU position such that the four screw posts are

inserted through the holes on the motherboard.

2. From the topside of the motherboard, apply Thermal Heatsink

Grease evenly to the surface of the CPU. Only apply as much

grease as will be required to cover the surface of the CPU once

the heatsink has been installed, as the pressure of the heatsink

application will spread the grease.

3. Place the heatsink and fan over the CPU, aligning the four holes

on the heatsink with the screw posts (see step #1).

4. Secure the heatsink and fan to the Fastening Plate, using the four

spring screws.

5. Connect the 3-pin (TX3) connector (on the fan) to the appropriate

connector on the motherboard.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Ventilator
Model:	FANK8AM2
Type:	Køler
Bredde:	92 mm
Dybde:	105 mm
Højde:	55 mm
Vægt:	290 g
Produktfarve:	Sort
Pakkevægt:	360 g
Pakkedybde:	124 mm
Pakkebredde:	80 mm
Pakkehøjde:	224 mm
Omdrejningshastighed (maks.):	2600 rpm
Dimensioner (BxDxH):	92 x 105 x 55 mm
Materiale:	Aluminium
Rotationshastighed:	2600 rpm
Effektkrav:	12 V
Bæredygtighedscertifikater:	RoHS
Spænding:	12 V
Støjniveau (høj hastighed):	28 dB
Antal blæsere:	1 blæser(e)
Passende til rumtype:	Processor
Ventilator diameter:	92 mm
Kompatibel processor serie:	AMD Athlon, AMD Sempron
Understøttede procesorsokler:	Socket 754, Socket 939
Ventilator dimensioner (BxDxH):	92 x 92 x 25 mm
Elektrisk indgangsforbindelse:	TX3
