Side 1/2

USB 3.0 (Type-A) port

(charging port)

USB 3.0 (Type-A) port

USB (Type-A)

port power LEDs

USB (Type-C)

port power LED

Quick-start guide

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

Manual Revision: 10/13/2017

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/HB30A3A1CST.

Package contents

• 1 x USB 3.0 hub

• 1 x USB 3.0 cable

• 2 x rubber feet

• 2 x mounting brackets

• 4 x mounting screws

• 1 x universal power adapter (NA/JP, UK, EU, ANZ)

• 1 x quick-start guide

Requirements

• Laptop with a USB-A port

• Phillips type screwdriver (required to attach mounting brackets)

Requirements are subject to change. For the latest requirements,

please visit www.StarTech.com/HB30A3A1CST.

HB30A3A1CST

*actual product may vary from photos

4-Port Metal USB 3.0 Hub - USB-A to 3x USB-A and 1x USB-C™

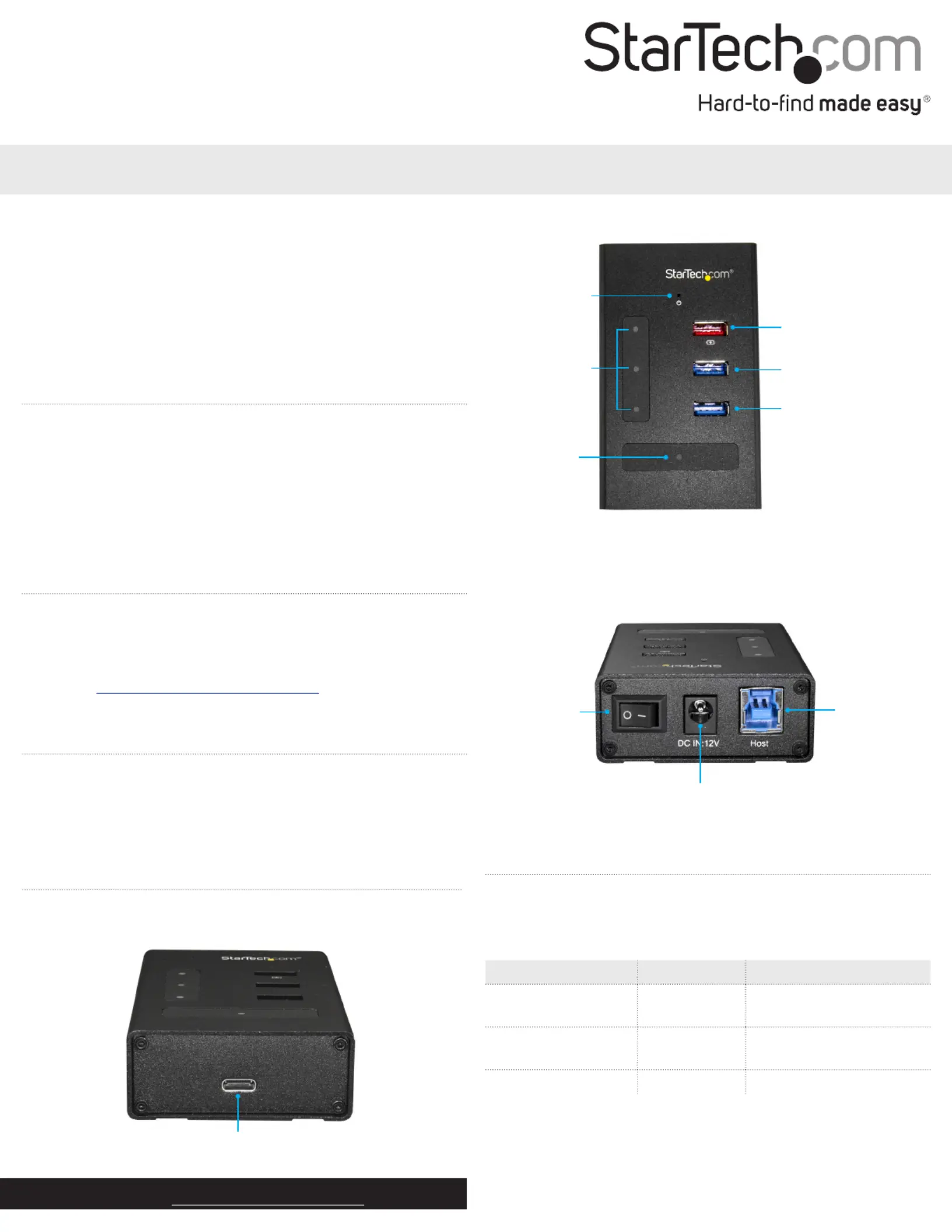

Product diagram

Front view

About USB 3.0 and USB 3.1 Gen 1

USB 3.0 is also known as USB 3.1 Gen 1. This connectivity standard

oers speeds up to 5Gbps. Any mention of USB 3.0 in this manual or

on the StarTech.com website for HB30A3A1CST refers to the 5Gbps

USB 3.1 Gen 1 standard.

USB Type-C™ port

(data only)

Top view

Back view

Power switch

Power adapter port

USB 3.0 (Type-A) port

USB 3.0 host

port

About the LED indicators

The HB30A3A1CST features ve LEDs on the top of the hub. For more

information about the LEDs, consult the table below.

LED indicator Behavior Signicance

USB (Type-A) port

power LED

Illuminated Device is connected

USB (Type-C) port

power LED

Illuminated Device is connected

Hub power LED Illuminated Hub is receiving power

Hub power LED

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation. Changes or

modications not expressly approved by StarTech.com could void the user’s authority to operate

the equipment.

WEEE Statement

The European Union has established regulations for the collection and recycling of all waste

electrical and electronic equipment (WEEE). Implementation of WEEE regulations may vary slightly

by individual EU member states. Please check with your local and state government guidelines for

safe disposal and recycling or contact your national WEEE recycling agency for more information.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide

industry-leading solutions. If you ever need help with your product, visit www.startech.com/

support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods

noted, following the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty covers parts and

labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers,

directors, employees or agents) for any damages (whether direct or indirect, special, punitive,

incidental, consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss,

arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If

such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Use of Trademarks, Registered Trademarks, and other Protected Names

and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected

names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of their

respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other

countries.

USB Type-C and USB-C are trademarks of USB Implementers Forum.

Connect the hub

1. Connect the USB 3.0 cable to the USB 3.0 host port on the hub

and a USB-A port on your laptop.

2. Connect the universal power adapter to the Power adapter port

on the hub and to a power source.

3. Use the Power switch to turn on the hub.

4. Do any of the following:

• Connect up to three USB peripherals to the USB 3.0 (Type-A)

ports on the hub.

• Connect a USB device to the USB Type-C port on the hub.

• To charge a USB device, connect the USB device to the USB 3.0

(Type-A) port (charging port) on the hub.

The HB30A3A1CST is natively supported and when you connect it to

your laptop, your laptop automatically detects the hub and installs

the required drivers.

Attach the hub to a wall

1. Position one of the mounting brackets so that the side of the

bracket with the mounting hole extends beyond the hub.

2. Line up the holes on the mounting bracket with the holes on the

underside of the hub.

3. Insert two of the mounting screws through the mounting bracket

and into the hub.

4. Use a Phillips type screwdriver to tighten the screws.

5. Repeat steps 1 to 4 to attach the second mounting bracket to the

hub.

6. Use mounting hardware appropriate for the type of wall you’re

mounting the hub to, and attach the hub to the wall.

Attach the rubber feet

1. Remove the backing from the rubber feet.

2. On the underside of the hub, stick the rubber feet along the two

channels.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	USB HUB
Model:	HB30A3A1CST
Bredde:	60 mm
Dybde:	100 mm
Højde:	26 mm
Vægt:	135 g
Produktfarve:	Sort
Pakkevægt:	535 g
Pakkedybde:	147 mm
Pakkebredde:	98 mm
Pakkehøjde:	95 mm
Opbevaringstemperatur (T-T):	-20 - 50 °C
Relativ luftfugtighed ved drift (H-H):	20 - 80 %
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	3
Strømforbrug (typisk):	24 W
Driftstemperatur (T-T):	5 - 35 °C
Husmateriale:	Aluminium
Hurtig installationsvejledning:	Ja
Kabler inkluderet:	USB
Certificering:	CE, FCC, RoHS, REACH
DC-in-stik:	Ja
LED-indikatorer:	Strøm
Udgangsspænding:	12 V
Udgangsstrøm:	2 A
AC-adapter inkluderet:	Ja
Kabellængde:	0.1 m
Harmoniseret systemkode (HS):	84719000
Indgangsspænding:	100 - 240 V
Hovedkassen højde (udvendigt):	335 mm
Hovedkassens længde (udvendigt):	315 mm
Hovedkassens bredde (udvendigt):	315 mm
Værtsgrænseflade:	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Plug and play:	Ja
Indgangsstrøm:	0.6 A
Produkter pr. hovedkasse (udvendigt):	18 stk
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte:	1
Strømstiktype:	Type M
Dataoverførselshastighed:	5000 Mbit/s
Monteringssæt til væggen:	Ja
Porte, antal:	5
Hot-swap:	Ja
Hub-grænseflader:	USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Chipsæt:	Realtek - RTS5411
Inkluderede strømstik typer:	ANZ, EU, JP, NA
