Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

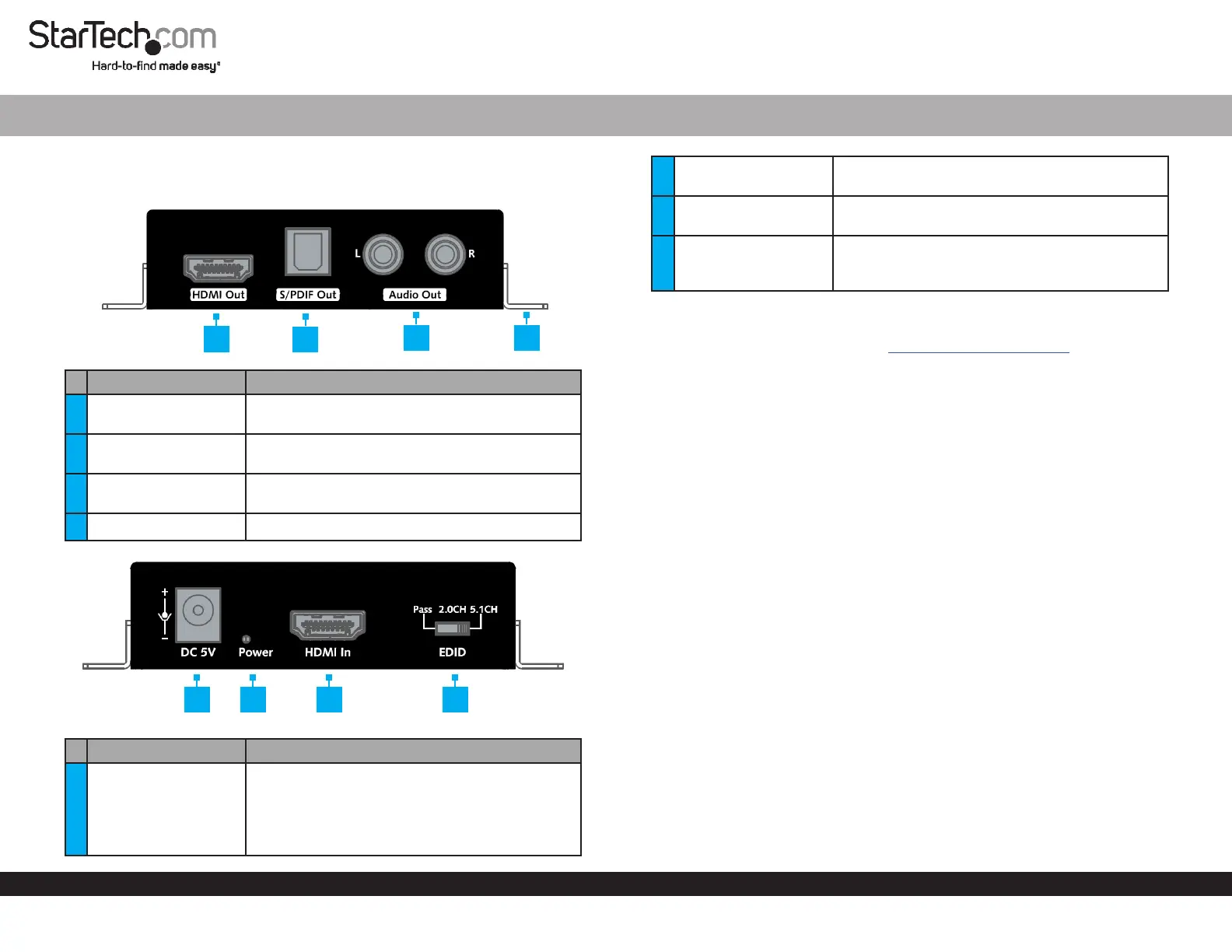

Product Diagram (HD202A)

Port Function

1HDMI OUT • Used to connect a to the Display Device

Extractor.

2S/PDIF OUT • Used to connect an to the Audio Device

Extractor.

3AUDIO OUT L/R • Used to connect an to the Audio Device

Extractor.

4 Mounting Brackets (2) • Used to mount the .Extractor

Port/LED Function

5DC 5V

• Used with the to Universal Power Adapter

power the . Extractor

Note: Universal Power Adapter has

components compatible for NA/JP, EU, UK, ANZ,

installation.

HDMI® Audio Extractor | HDR | 4K 60Hz

6POWER LED • Indicates that the is Solid Red: Extractor

properly connected and is receiving power.

7HDMI IN • Used to connect a to the Video Source Device

Extractor.

8EDID Switch

• Used to toggle between the Extended Display

Identication Data (EDID) modes (PASS, 2.0CH,

and 5.1CH).

Requirements

For the latest requirements, please visit .www.startech.com/HD202A

Installation

1. Connect an (sold separately) to the on the and HDMI Cable HDMI IN Port Extractor

connect the other end of the to the HDMI port on the HDMI Cable Video Source

Device.

2. Connect an to the on the and connect the HDMI Cable HDMI OUT Port Extractor

other end of the to the HDMI port on the .HDMI Cable Display Device

3. (Optional): Connect (sold separately) to the RCA Audio Cables AUDIO OUT

L/R Ports Extractor RCA Audio Cables on the and the other end of the to the

Speakers/Audio Receiver.

4. (Optional): Connect an to the and connect Optical Audio Cable S/PDIF OUT Port

the other end of the to an audio out port on the Optical Audio Cable Audio Device

(speakers, amplifer, etc.).

Note: The port used to connect the will depend on your audio setup.Audio Device

5. Connect the to the on the and Universal Power Adapter DC 5V Port Extractor

other end to an .AC Electrical Outlet

6. Power on the and the .Video Display Device HDMI Video Source

7. Slide the to adjust the EDID mode to one of the following:EDID Switch

• EDID settings from the connected to the PASS (Default): Display Device HDMI

OUT Port Video Source Device are passed through to the .

• 2.0CH EDID settings are passed through the 2.0CH: Video Source Device

connected to the and to the (video and 2.0CH HDMI IN Port Display Device

audio).

5 6 7 8

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

Safety Measures

• If product has an exposed circuit board, do not touch the product under power.

Mesures de sécurité

• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.

安全対策

• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。

Misure di sicurezza

• Se il prodotto ha un circuito stampato visibile, non toccare il prodotto quando è acceso.

Säkerhetsåtgärder

• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.

FR: fr.startech.com

DE: de.startech.com

ES: es.startech.com

NL: nl.startech.com

IT: it.startech.com

JP: jp.startech.com

StarTech.com Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

2500 Creekside

Parkwy

Lockbourne, Ohio

43137

U.S.A.

Removing a Regional Power Clip

To remove a from the :Regional Power Clip Universal Power Adapter

1. Push the on the .Release Button Universal Power Adapter

2. Slide the upward aligning the on the Regional Power Clip Side Tabs Regional

Power Clip Universal Power Adapter with the notches on the .

3. Pull the away from the .Regional Power Clip Universal Power Adapter

EDID Specications

Audio EDID

Conguration of

Output Device HDMI Output (Audio) SPDIF Output

(Audio) L/R Output

(Audio)

Pass (Default)

Dolby/DTS 7.1 Dolby/DTS 7.1 x x

Dolby/DTS 5.1 Dolby/DTS 5.1 Dolby/DTS 5.1 x

PCM 7.1 PCM 7.1 PCM 2.0 PCM 2.0

PCM 5.1 PCM 5.1 PCM 2.0 PCM 2.0

PCM 2.0 PCM 2.0 PCM 2.0 PCM 2.0

2.0CH

x PCM 2.0 PCM 2.0 PCM 2.0

5.1CH

Dolby/DTS 7.1 Dolby/DTS 5.1 Dolby/DTS 5.1 x

• The passes 5.1CH EDID settings through the 5.1CH: Extractor Video Source

Device HDMI IN Port Display Device connected to the and to the (video and

5.1CH audio).

Installing the Mounting Brackets

1. Align a with the two on the side of the Mounting Bracket Mounting Holes

Extractor.

Note: The has four two on each side.Extractor Mounting Holes,

2. Insert the (x2) through the and into the Bracket Screws Mounting Bracket

Mounting Holes.

3. Tighten the using a , be careful not to Mounting Screws Phillips Head Screwdriver

over-tighten.

4. Before installing the on the mounting surface, contact a Mounting Bracket

professional. Product mounting should be completed by a certied professional as

per the local safety and building code guidelines.

Connecting a Regional Power Clip

1. Select a . Regional Power Clip

2. Align the two on the with the notches on the face of Side Tabs Regional Power Clip

the . Universal Power Adapter

3. Slide the down until you hear an audible click, connecting Regional Power Clip

the contact prongs on the with the contact prongs on the Regional Power Clip

Universal Power Adapter.
