Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: June 3, 2019 3:29 PM

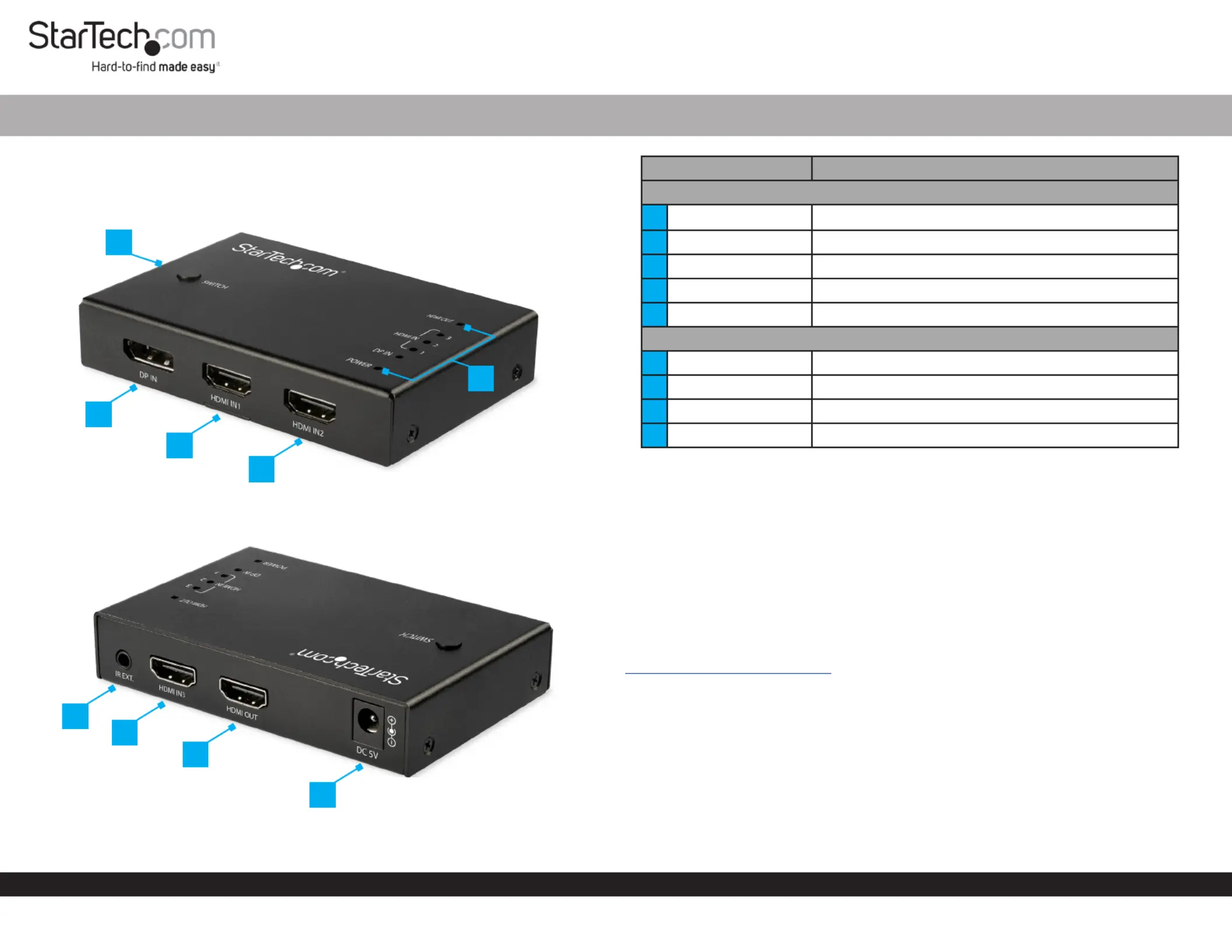

Product Diagram (VS421HDDP)

4x1 HDMI +DP to HDMI Converter Switch - 4K 60Hz

Port Function

Front

1SWITCH Button • Cycle through HDMI and DisplayPort Sources

2DP IN Port • Connect a DisplayPort Source Device

3HDMI IN1 Port • Connect an HDMI Source Device

4HDMI IN2 Port • Connect an HDMI Source Device

5LED Indicators • Indicates the current status of the Device and Ports

Rear

6IR EXT. Port • Connect the IR Receiver

7HDMI IN3 Port • Connect an HDMI Source Device

8HDMI OUT Port • Connect an HDMI Display Device

9DC 5V Power Port • Connect a Power Source

Requirements

• HDMI Source Devices (up to 4K @ 60Hz) x 3

• HDMI M/M Cables (sold separately) x 4

• DisplayPort Source Device (up to 4K @ 60Hz) x 1

• DisplayPort M/M Cable (sold separately) x 1

• HDMI Display Device x 1

Note: Premium High Speed HDMI and DisplayPort 1.2 Cables are required for optimal

performance at 4K 60Hz.

For the latest requirements, please visit

www.startech.com/VS421HDDP.

Installation

Note: Ensure your and HDMI DisplayPort Source Devices HDMI Displayand the are

powered o before you begin the installation.

1. Connect an (sold separately) to an on the HDMI Cable Output Port HDMI Source

Device HDMI IN Ports Converter Switch and to one of the on the .

2. Repeat step #1 for each of your remaining .HDMI Source Devices

Note: Each is numbered, please take note of which number is assigned to HDMI Port

each .HDMI Source Device

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

Safety Measures

• If product has an exposed circuit board, do not touch the product under power.

Mesures de sécurité

• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.

安全対策

• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。

Misure di sicurezza

• Se il prodotto ha un circuito stampato visibile, non toccare il prodotto quando è acceso.

Säkerhetsåtgärder

• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

2500 Creekside

Parkwy

Lockbourne, Ohio

43137

U.S.A.

Automatic Operation

The can automatically select the most recently activated or Converter Switch

connected or . HDMI DisplayPort Source Device

Connect a new or turn on an already connected to Source Device Source Device

automatically switch .Video Sources

LED Indicators

LED Label Function

POWER

ON: Device is powered on

OFF: Device is powered o

DP IN

ON: DisplayPort Source is selected

OFF: DisplayPort Source is not selected

HDMI IN (1,2,3)

ON: HDMI Source is selected

OFF: HDMI Source is not selected

HDMI OUT

ON: HDMI Display Device is connected

OFF: HDMI Display Device is not connected

Battery Replacement

The contains a CR2025 coin style that can be replaced as IR Remote Control Battery

needed. To replace the follow these steps.Battery

1. Place the with the button side down on a at and stable surface.IR Remote Control

2. Locate the at the bottom of the and pinch the inwards Tab IR Remote Control Tab

while pulling the away from the .Battery Tray IR Remote Control

3. Remove and replace the .Battery

4. Insert the back into the until the clicks.Battery Tray IR Remote Control Tab

3. Connect an (sold separately) to the on theHDMI Cable HDMI OUT Port Converter

Switch HDMI Input Port HDMI Display Deviceand to an on the .

4. Connect a to an on the DisplayPort Cable (sold separately) Output Port

DisplayPort Source Device DP IN Port Converter Switch and to the on the .

5. Connect the to an available and to the Universal Power Adapter Power Source

Power Adapter Port Converter Switch on the .

6. Power on your , then power up each of your andHDMI Display HDMI DisplayPort

Source Devices.

Operation

Manual Operation

Manual mode enables you to switch between and HDMI DisplayPort Video Sources

using the or the . SWITCH Button IR Remote Control

Input Selection Button

Press the to toggle between the and SWITCH Button HDMI DisplayPort Source

Devices.

IR Remote Control

Press or to cycle through all of the connected . Cycle in one direction Sources

until the desired or is selected.HDMI DisplayPort Source Device

See the following table for details: IR Remote Control Button

IR Remote Control Button Function

1Switch Source to DP IN

2Switch Source to HDMI IN1

3Switch Source to HDMI IN2

4Switch Source to HDMI IN3

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Audio/video konverter
Model:	VS421HDDP
Vekselstrømsindgangsspænding:	100 - 240 V
Bredde:	66 mm
Dybde:	100 mm
Højde:	20 mm
Vægt:	300 g
Brugervejledning:	Ja
Produktfarve:	Sort
Pakkevægt:	400 g
Pakkedybde:	125 mm
Pakkebredde:	160 mm
Pakkehøjde:	65 mm
Opbevaringstemperatur (T-T):	-20 - 70 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
HDCP:	Ja
Driftstemperatur (T-T):	0 - 45 °C
Maksimal opløsning:	4096 x 2160 pixel
Udgangsspænding for vekselstrømsadapter:	5 V
Understøttede grafikopløsninger:	1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA),3840 x 2160,4096 x 2160
Materiale:	Metal
Fjernbetjening inkluderet:	Ja
Lyd-output kanaler:	7.1 kanaler
Certificering:	CE, FCC, REACH
DC-in-stik:	Ja
LED-indikatorer:	Ja
Harmoniseret systemkode (HS):	85176990
Bæredygtighedscertifikater:	RoHS
Maksimal opdateringshastighed:	60 Hz
HDMI-version:	2.0
Antal DisplayPorts:	1
Vekselstrømsadapterens udgangsstrøm:	1 A
Strømstiktype:	Type M
Monteringsbeslag inkluderet:	Ja
HSMI-indgang:	3
Antal HDMI-udgange:	1
Skruer inkluderet:	Ja
HDCP-version:	2.2
Video porttype:	HDMI/DisplayPort
3,5 mm ind:	Ja
Indgangsstrøm til vekselstrømsadapter:	0.3 A
Stikadapter type:	NA/JP, UK, EU, ANZ
