StarTech.com MSTDP124DP Manual

StarTech.com Audio/video konverter MSTDP124DP

Læs gratis den danske manual til StarTech.com MSTDP124DP (2 sider) i kategorien Audio/video konverter. Denne vejledning er vurderet som hjælpsom af 10 personer og har en gennemsnitlig bedømmelse på 4.8 stjerner ud af 5.5 anmeldelser. Har du et spørgsmål om StarTech.com MSTDP124DP, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/2

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 06/10/2021

For the most up-to-date information, please visit: www.startech.com

Quick Install Guide

Packaging Contents

• 1x 4-Port Multi Monitor DisplayPort MST Hub

• 1x Universal power adapter (NA/EU/UK/AUS)

• 1x Quick install guide

System Requirements

• DisplayPort 1.2 enabled computer system

• Up to 4 DisplayPort monitors with cabling

Note: Dierent types of displays such as HDMI, DVI and VGA are

supported provided DisplayPort adapters are used. DisplayPort

adapters are not included.

Note: Certain graphics adapters have limited MST support and will

only output to three displays in total. If more than three monitors

are attached the fourth will be disabled.

MSTDP124DP

Multi Stream Transport Hub – DisplayPort™ to quad head DisplayPort MST hub

*actual product may vary from photos

Installation

1. Ensure your computer system and monitors are powered o.

2. Connect the integrated DisplayPort input cable to the DisplayPort

connector on your computer system.

3. Connect up to four DisplayPort monitors to the DisplayPort

output ports on the MST Hub, using your video cabling.

4. Connect the included power adapter from an available outlet to

the power adapter port on the MST hub.

5. Power on your DisplayPort monitors followed by your computer

system.

6. The system will now detect the MST Hub, and add the attached

displays to the Display Settings of the System just as if the

monitors were connected directly to your native video card.

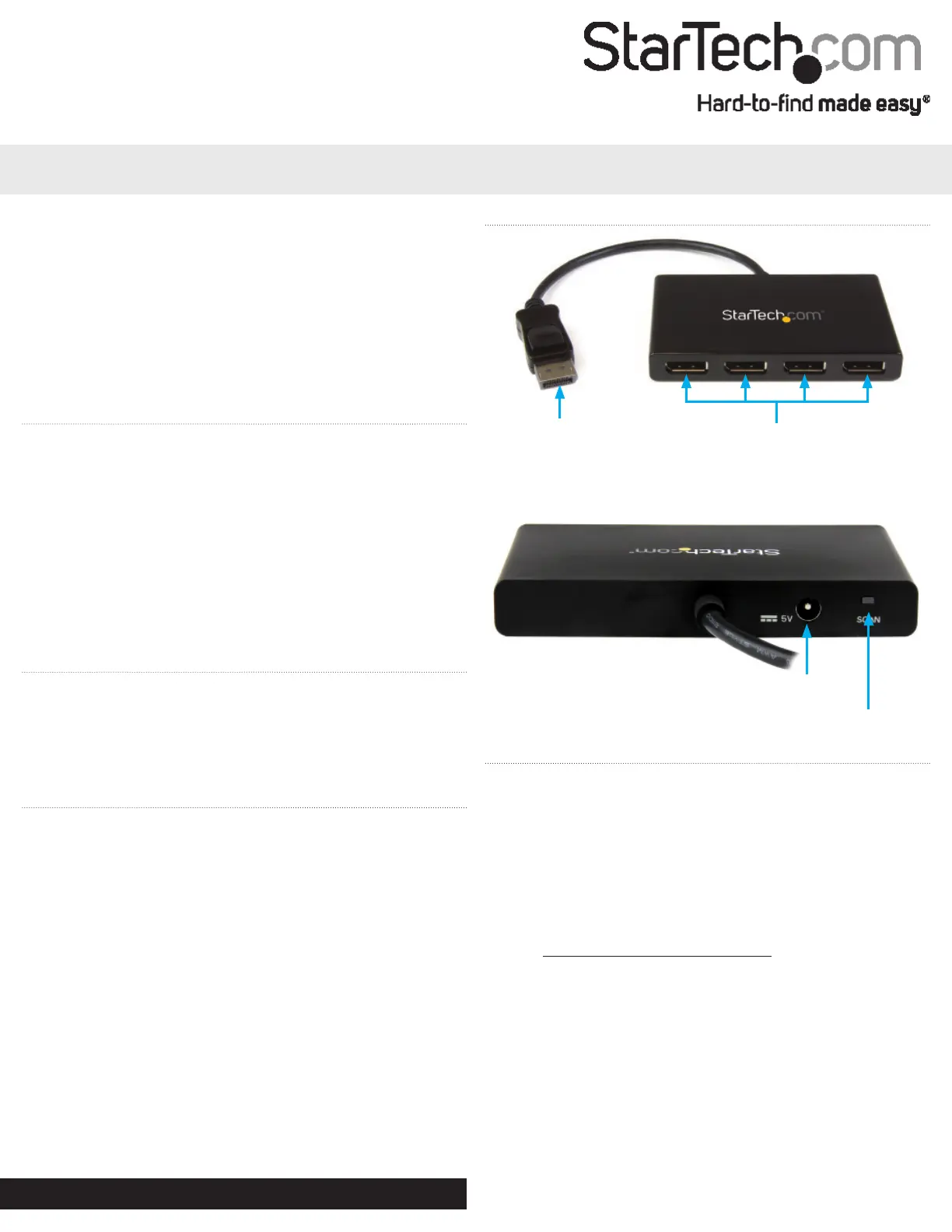

Product Overview

Front View

Rear View

Integrated DisplayPort

input cable

DisplayPort output

ports

Power adapter port

Important operation notes

• MST is certied for operation with Microsoft® Windows 10, 8/8.1

and 7 devices.

• MST is currently not supported by other operating systems

such as Mac OS X and Chrome OS™.

• Other operating systems might adopt MST in the

future. Verify MST support with your operating system

manufacturer.

• Operating system support is subject to change. For the

latest requirements, please visit:

www.StarTech.com/MSTMDP124DP.

• After the MST hub has been connected to your computer it may

be necessary to initiate the operation of additional displays from

within your Windows Display Settings.

• The SCAN button resyncs all of the attached displays, and can be

utilized if any of the displays are not detected.

Sync button

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Audio/video konverter
Model:	MSTDP124DP
Vekselstrømsindgangsspænding:	110 - 240 V
Bredde:	65 mm
Dybde:	105 mm
Højde:	15 mm
Vægt:	127 g
Brugervejledning:	Ja
Produktfarve:	Sort
Pakkevægt:	500 g
Pakkedybde:	242 mm
Pakkebredde:	154 mm
Pakkehøjde:	66 mm
Opbevaringstemperatur (T-T):	-20 - 70 °C
Strømforbrug (typisk):	15 W
Driftstemperatur (T-T):	0 - 45 °C
Maksimal opløsning:	3840 x 2160 pixel
Husmateriale:	Plast
Hurtig installationsvejledning:	Ja
Understøttede grafikopløsninger:	1024 x 768 (XGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3840 x 2160
Certificering:	CE, FCC, RoHS
DC-in-stik:	Ja
Udgangsspænding:	5 V
Udgangsstrøm:	3 A
AC-adapter inkluderet:	Ja
Harmoniseret systemkode (HS):	85176990
Bæredygtighedscertifikater:	RoHS
Indgangsspænding:	100 - 240 V
Hovedkassen højde (udvendigt):	227 mm
Hovedkassens længde (udvendigt):	501 mm
Hovedkassens bredde (udvendigt):	336 mm
Værtsgrænseflade:	DisplayPort
Plug and play:	Ja
Indgangsstrøm:	0.5 A
Maksimal opdateringshastighed:	30 Hz
Produkter pr. hovedkasse (udvendigt):	10 stk
Strømstiktype:	Type N
Videoudgang:	4x DisplayPort
Dataoverførselshastighed:	- Mbit/s
Video porttype:	DisplayPort
Porte, antal:	4
Antal videoporte:	4
Hub-grænseflader:	DisplayPort
Chipsæt:	STDP4320
Inkluderede strømstik typer:	AU, EU, NA, UK
