Side 1/2

Quick-start guide

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

Manual Revision: 07/15/2016

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/PEX10000SFPI.

Package contents

• 1 x 10G open SFP+ ber network card

• 1 x low-prole bracket

• 1 x quick-start guide

System requirements

• PCI Express® enabled computer with an available PCI Express slot

(x8 or x16)

• One 10G SFP+ transceiver module

• Any of the following operating systems:

• Windows® 10 (32-bit and 64-bit)

• Windows 8.1 (32-bit and 64-bit)

• Windows 8 (32-bit and 64-bit)

• Windows 7 (32-bit and 64-bit)

• Windows Server® 2008 R2

• Windows Server 2012

• Linux® Kernel 2.6.24 and later

• Microsoft® Hyper-V®

• Phillips head screwdriver (optional)

System requirements are subject to change. For the latest

requirements, please visit www.StarTech.com/PEX10000SFPI.

PEX10000SFPI

1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM

Introduction

To experience reliable high-performance network connectivity, you

can use the PEX10000SFPI to add an open SFP+ slot to your server or

workstation. This SFP+ network card oers up to 10Gbps of network

speed and features the Intel® 82599 chipset.

The PEX10000SFPI can be mounted in both low-prole and

full-prole computer systems.

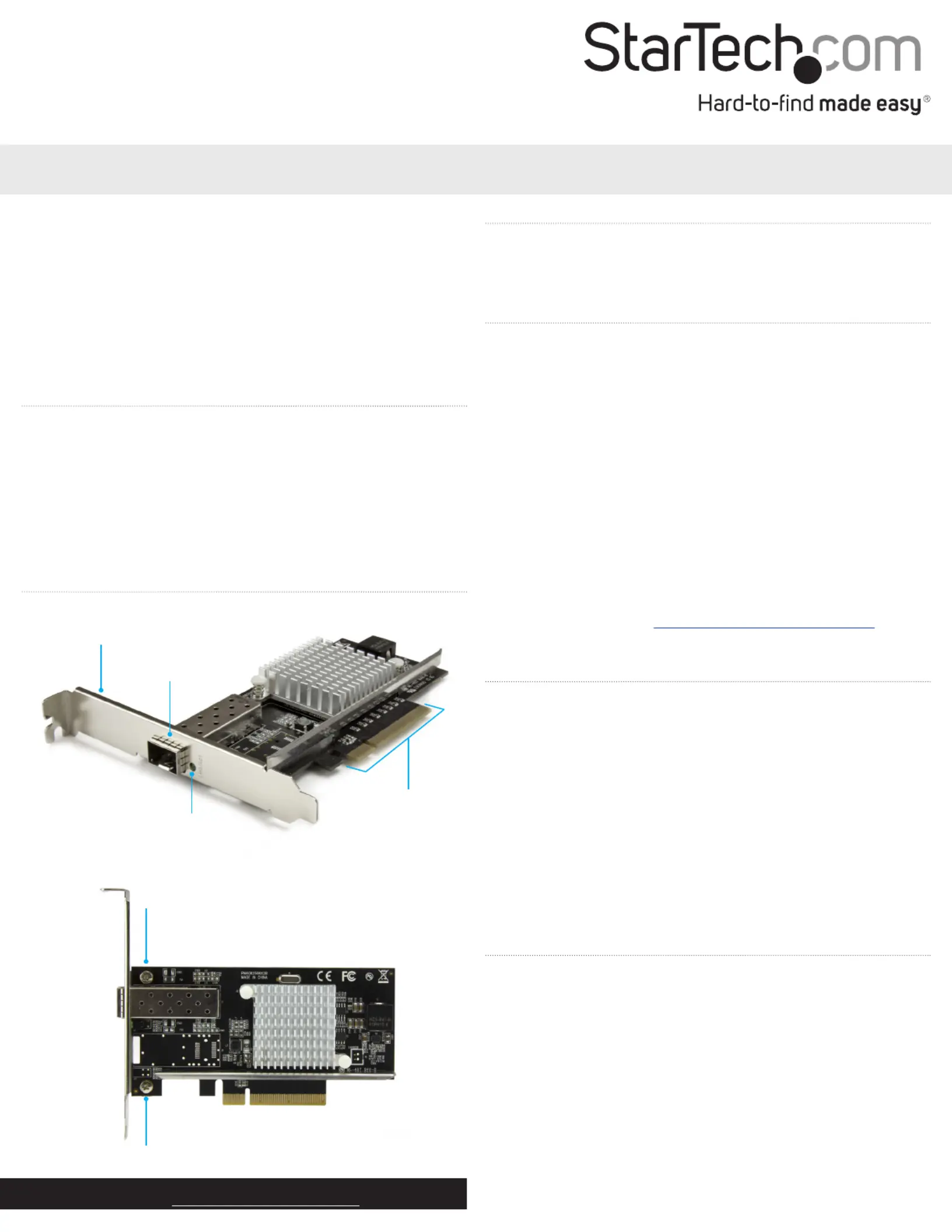

Product diagram

SFP+ slot

Link or activity LED

Mounting bracket

(full-prole pictured)

PCIe p1-x8 connector

*actual product may vary from photos

Bracket screw

Install the low-prole bracket

The PEX10000SFPI can be mounted in both low-prole and

full-prole computer systems. The full-prole bracket comes

preinstalled in the SFP+ network card but you can install the

low-prole bracket instead.

1. Use a Phillips head screwdriver to remove the two bracket screws

from the PEX10000SFPI.

2. Remove the full-prole bracket from the SFP+ network card.

3. Line up the low-prole bracket with the bracket holes on the back

of the SFP+ network card.

4. Insert the two bracket screws that you removed in step 1 and

tighten them into place.

Install the network card in a computer

Warning! PC components can be severely damaged by static

electricity. If an anti-static strap isn’t available, discharge any

built-up static electricity by touching a large, grounded metal

surface for several seconds.

1. Turn o your computer and any devices or peripherals that are

connected to it (for example, printers, external storage, and

so on).

2. Unplug the power cable from the back of your computer.

3. Disconnect any peripheral devices that are connected to your

computer.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the

equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

4. Open your computer case. For more information about how to

properly do this, consult the documentation that came with

your computer system.

5. Locate an open PCI Express x8 slot and remove the

corresponding metal cover plate from the back of your

computer case. Consult the documentation that came with your

computer for details about how to do this safely.

This card works in PCIe slots of x8 or x16 lanes.

6. Gently insert the card into the open PCI Express slot and use a

computer case screw (not included) to fasten the bracket to the

back of the case.

7. Place the cover back onto your computer case.

8. Insert a 10G SFP+ transceiver module into the on the SFP+ slot

SFP+ network card.

Connect to a network

1. Connect a ber network cable to the SFP+ transceiver module

on the SFP+ network card and to a 10GBase ber port on your

network switch or device.

2. Reconnect the power cable to the back of your computer and

all of the disconnected peripheral devices.

3. Turn on your computer.

About the LED indicators

The PEX10000SFPI features a green indicator Link or activity LED

next to the SFP+ slot.

LED behavior Signicance

LED is illuminated Card is connected to the network

LED is blinking Activity is occurring

Install the driver

1. If the Found New Hardware dialog box appears on your screen,

close the dialog box or click Cancel.

2. Navigate to www.StarTech.com/PEX10000SFPI.

3. Click the tab.Support

4. Download the driver.

5. When the download is complete, extract the contents of the

compressed le that you downloaded.

6. Double-click the appropriate driver for the version of the OS that

you’re running and follow the on-screen instructions to complete

the installation.

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Netværkskort/adapter
Model:	PEX10000SFPI
Bredde:	18 mm
Dybde:	135 mm
Højde:	120 mm
Vægt:	102 g
Produktfarve:	Sort
Pakkevægt:	178 g
Pakkedybde:	172 mm
Pakkebredde:	142 mm
Pakkehøjde:	32 mm
Opbevaringstemperatur (T-T):	-20 - 60 °C
Relativ luftfugtighed ved drift (H-H):	20 - 80 %
Driftstemperatur (T-T):	5 - 50 °C
Hurtig start guide:	Ja
Forbindelsesteknologi:	Ledningsført
Certificering:	CE, FCC, REACH
Netværksstandarder:	IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x
Harmoniseret systemkode (HS):	85176990
Bæredygtighedscertifikater:	CE, RoHS
Understøttede Linux-operativsystemer:	Ja
Hovedkassen højde (udvendigt):	309 mm
Hovedkassens længde (udvendigt):	585 mm
Hovedkassens bredde (udvendigt):	359 mm
Værtsgrænseflade:	PCI Express
Grænseflade:	Fiber
Intern:	Ja
Maksimal dataoverførselshastighed:	10000 Mbit/s
Fiber optisk strømstik:	SFP+
Produkter pr. hovedkasse (udvendigt):	80 stk
Fuld duplex:	Ja
Overholdelse af bæredygtighed:	Ja
Komponent til:	PC
Understøttede operativsystemer til servere:	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Flowkontrol support:	Ja
Fiber ethernet kabelteknologi:	10GBASE-LR, 10GBASE-LRM, 10GBASE-SR
Jumbo Frames support:	Ja
Jumbo rammer:	15000
Fiberkanal porte:	1
VLAN mærkning:	Ja
Simpelt beslag:	Ja
Chipsæt:	Intel® 82599
PCI version:	2.0
