Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: June 2, 2020 11:32 AM

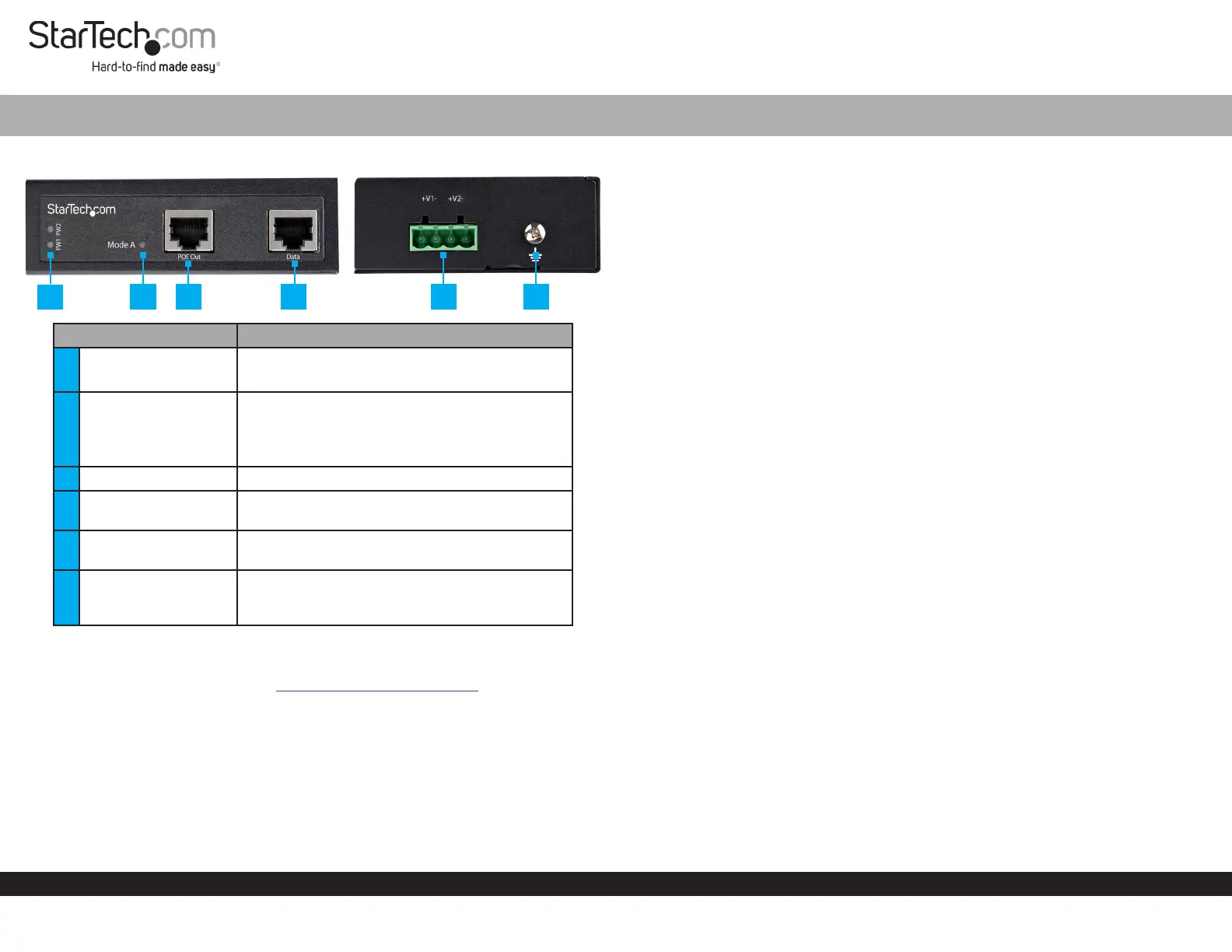

Product Diagram (POEINJ30W)

Component Function

1 Power LEDs

• Green: A Power Source is detected.

• O: A Power Source is not detected.

2 Mode A LED

• Mode A (Green): Indicates that the PoE

Injector is providing power.

• O: Indicates that the PoE Injector is in idle

mode.

3 PoE Out Port • Connect a PoE PD Device to the PoE Injector.

4 Data Port

• Connect a Network Switch to the PoE

Injector.

4-Pin Terminal Block

V1 and V2

• Connect an external DC Power Source (48-56V

DC Input) to the PoE Injector.

6 Ground Screw

• Connect a ground connection to the Ground

Screw when connecting a DC Power Source to

the PoE Injector.

Requirements

For the latest requirements, please visit www.startech.com/POEINJ30W

• Small Flat Head Screwdriver x 1

• Writing Utensil x 1

• PoE PD Device x 1

• Network Switch x 1

• DC Power Source or Universal Power Adapter with Type N (OD: 5.5 mm, ID: 2.5 mm)

Barrel Connector x 1

• (Optional) Phillips® Head Screwdriver x 1

• RJ45 Terminated UTP/STP Cat 5e (or better) Network Cable x 2

30W Industrial - Grade Hardened PoE Injector | 1G (1000 Mbps)

Powering the PoE Injector

Terminal Block

Connecting and installing the 4-Wire Terminal Connector must be completed by a

licensed Electrician.

Notes: Make sure that you turn o the power source before connecting the power wire

to the PoE Injector.

Do not exceed the recommend power source voltage as it may result in personal or

product damage.

1. Using a Small Flat Head Screwdriver, loosen the two screws, either V1 or V2 on the

4-Wire Terminal Connector (included).

2. Connect the Power Wires from a DC Power Source (48 - 56V DC), or the provided

Barrel Power Connector Adapter, to the proper Terminal Block Connectors (the

terminals are marked on the PoE Injector’s Casing). Connect the positive wire to V+

and the negative wire to V-.

3. Tighten the two screws on the 4-Wire Terminal Connector.

4. Insert the 4-Wire Terminal Connector in the 4-Wire Terminal Block on the PoE

Injector.

5. To connect a second Power Source to the PoE Injector, repeat steps 1 - 4.

6. Using a Phillips Head Screwdriver, loosen the Ground Screw on the PoE Injector.

7. Connect the Ground Wire from a DC Power Source to the Ground Screw on the

PoE Injector.

8. Using the Phillips Head Screwdriver, tighten the Ground Screw to secure the

Grounding Wire to the PoE Injector.

(Optional) Barrel Connector

• Connect a Type N (OD: 5.5 mm, ID: 2.5 mm) Barrel Connector from a Universal

Power Adapter to the Terminal Block to Barrel Power Connector Adapter.

Connecting the PoE Injector

Note: Make sure the total length of the CAT5e/6 Cable connecting the PD Device

to the PoE Injector and the CAT5e/6 Cable connecting the PoE Injector to the

Remote Switch does not exceed 100 meters in total length.

1. Connect a CAT5e/6 Cable to the PoE Out Port on the PoE Injector and the other

end to an RJ45 port on a PoE PD Device (e.g. security camera, etc.).

1 2 3 4 5 6

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Netværkskort/adapter
Model:	POEINJ30W
Vægt:	143 g
Produktfarve:	Sort
Pakkevægt:	381 g
Pakkedybde:	64 mm
Pakkebredde:	162 mm
Opbevaringstemperatur (T-T):	-40 - 85 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Driftstemperatur (T-T):	-40 - 75 °C
Ethernet LAN-datahastigheder:	10,100,1000 Mbit/s
Hurtig installationsvejledning:	Ja
Certificering:	CE, FCC, UL
Strømforbrug (maks.):	37 W
Netværksstandarder:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Understøttede netværksprotokoller:	CSMA/CD
LED-indikatorer:	Ja
Harmoniseret systemkode (HS):	85044095
Bæredygtighedscertifikater:	RoHS
Indgangsspænding:	48 - 56 V
Hovedkassen højde (udvendigt):	225 mm
Hovedkassens længde (udvendigt):	345 mm
Hovedkassens bredde (udvendigt):	355 mm
Produkter pr. hovedkasse (udvendigt):	10 stk
Strøm over Ethernet (PoE):	Ja
Maksimal driftstilstand:	100 m
Ethernet-grænsefladetype:	Fast Ethernet, Gigabit Ethernet
Pakkelængde:	211 mm
Strømstiktype:	Type N
RJ-45 indgangs-porte:	1
Power over Ethernet (PoE) effekt pr. port:	30 W
Auto MDI/MDI-X:	Ja
Strømbeskyttelsesfunktioner:	Overload, Reverse polarity
Sikkerhed:	MET (UL) 60950-1, EN60950-1
RJ-45 udgangs-porte:	1
Beskyttelse ved overspænding:	Ja
Power over Ethernet (PoE) spænding:	- V
Duplex system:	Fuld
