Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 06/28/2011

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1 x VGA over Cat5 Remote Receiver

• 1 x Power Adapter

• 1 x Instruction Manual

System Requirements

• UTPE series video transmitter/splitter (i.e. ST124UTPE/ST128UTPE)

• VGA enabled display device (i.e. monitor, projector, etc.)

• Available AC electrical outlet

STUTPRXL / STUTPRXLGB / STUTPRXLEU

VGA Video Extender over Cat 5 Remote Receiver (UTPE Series)

Installation

Connecting the STUTPRXL Remote Receiver to the transmitter/

splitter:

Connect the Cat5 signal source cable running from the UTPE

series transmitter/splitter to the RJ45 connector at one end of the

Remote Receiver.

Connecting the STUTPRXL Remote Receiver to the VGA display/

monitor:

Connect a VGA male/male cable from the display device to the

VGA connector on the Remote Receiver.

Powering the Remote Receiver:

Connect the power adapter (provided) to the port marked DC

12V on the Remote Receiver. Connect the opposite end to an AC

electrical outlet or other suitable power source. The Power LED will

light up.

Adjusting image quality:

Once the necessary connections have been made, power on the

VGA display/monitor. On the bottom of the Remote Receiver, are

adjustment dials for EQ (sharpness) and GAIN (brightness). Using

a small Phillips or slot-head screwdriver, adjust the sharpness with

the dial marked EQ in a clockwise direction. Similarly, turn the

adjustment dial marked GAIN in a clockwise direction, to adjust

the brightness of the displayed image.

*actual product may vary from photos

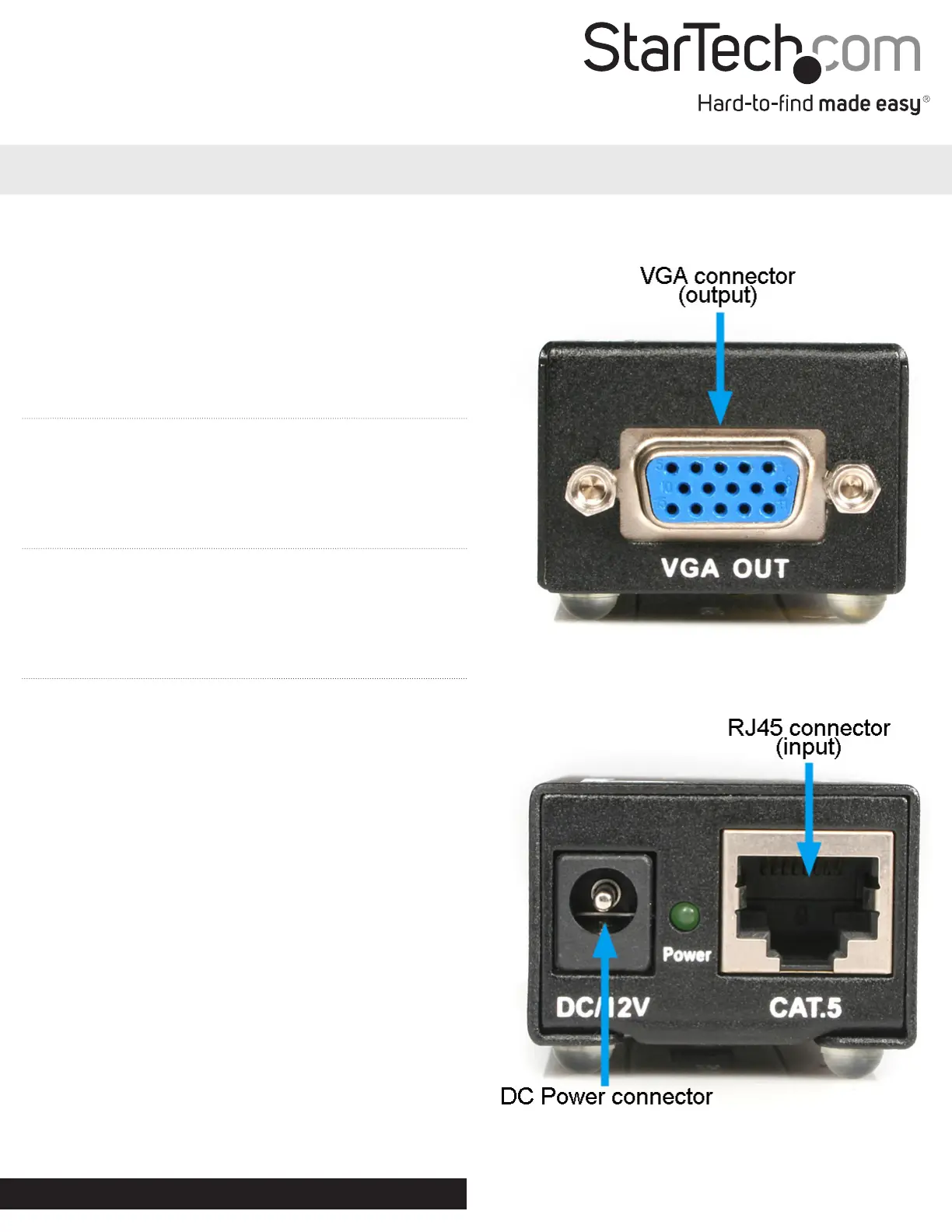

Front View

Rear View

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Specications

Video Signal VGA (RGBHV)

External Connectors

1 x DE-15 VGA female

1 x RJ45 Ethernet female

1 x DC Power

LEDs 1 x Power

Compatible Cabling Cat5/5e

Supported Video

Resolutions

1920 x 1200 @ 50m / 150ft

1600 x 1200 @ 100m / 300ft

1280 x 1024 @ 180m / 550ft

1024 x 768 @ 200m / 620ft

800 x 600 @ 300m / 950ft

Enclosure Material Metal

Power Adapter 12V DC, 600 mA, center positive,

type M plug

Troubleshooting

The remote display is black, or indicates that there is “no signal”:

Check that the display is receiving power and that all cables are

connected securely.

The remote display does not display an image when the local

computer wakes up from Standby Mode:

Power the remote display OFF and ON again

The image on the remote display is distorted, or displays a

“signal error” or similar error message:

1. Adjust the local computer to a lower resolution and refresh rate

until the remote display shows an image.

2. Gradually increase the resolution and refresh rate on the local

computer until the remote display ceases to display an image.

3. Return the resolution and refresh rate on the local computer to

the highest resolution and refresh rate setting that displayed an

image on the remote display

4. Adjust the Signal Equalizer on the Remote Unit for best

performance

NOTE: If you are still unable to see an image at the remote location

after trying the above solutions, it is recommended that you verify

the Ethernet cable installation to the remote display before calling

technical support. This can be done using a standard cable tester - if

you do not have a cable tester, contact a local computer service or

wiring professional.
