Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: April 3, 2020 10:52 AM

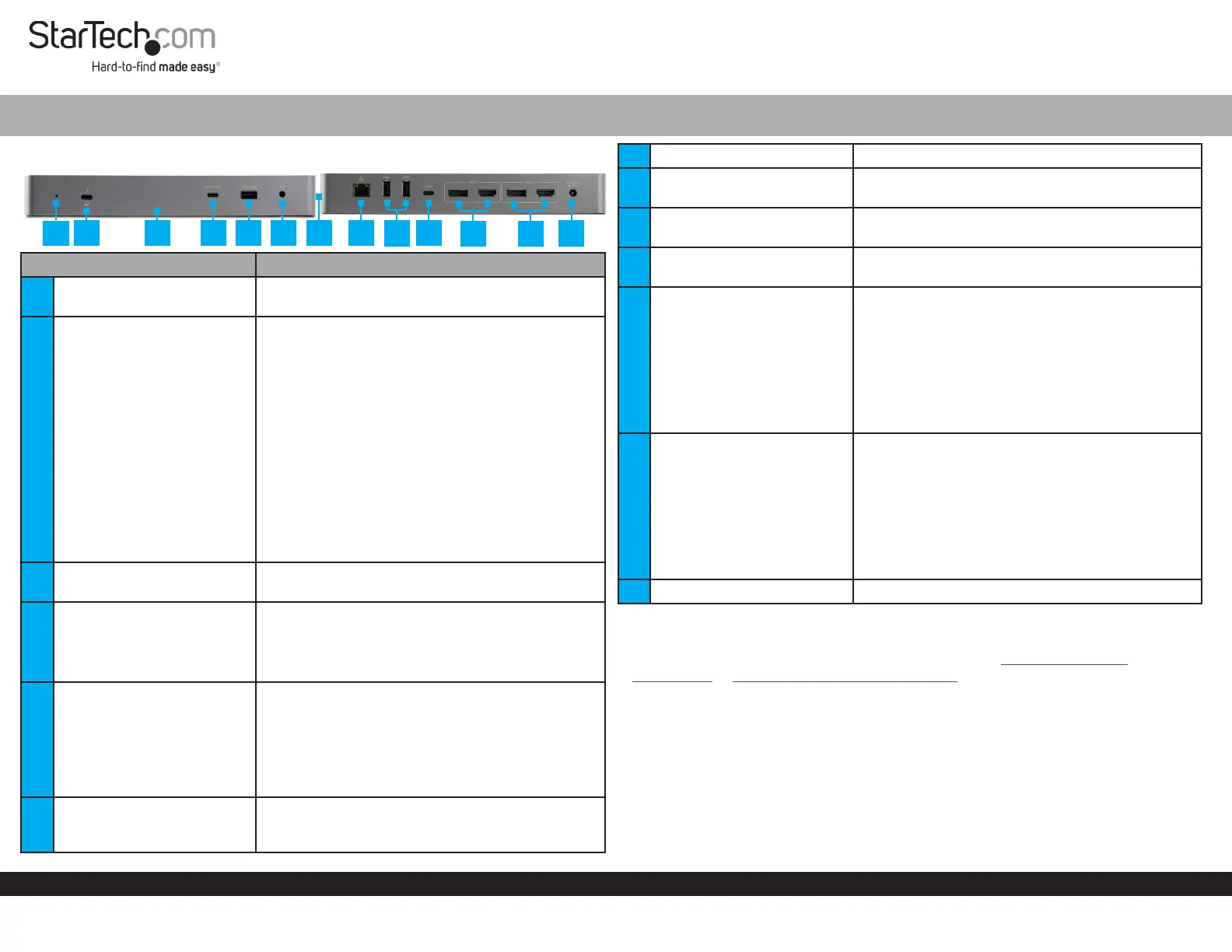

Product Diagram (TB3CDK2DH/TB3CDK2DHUE)

Component Function

1 Power LED

• Solid White: Indicates that the Docking Station

is receiving power.

Thunderbolt 3/USB-C Host

Port

For Thunderbolt 3 and USB-C Laptops:

• Used to connect a Host Thunderbolt 3 or USB-C

laptop to the Docking Station.

• The Docking Station supports USB Power

Delivery. USB Power Delivery sends power over a

Thunderbolt 3 or USB-C cable to the connected

Host Computer.

Note: The Host Computer’s Thunderbolt 3 port

must support Power Delivery.

USB-C Laptops:

Note: To ensure maximum video compatibility, the

Host Computer must support DP Alt Mode when

connecting to the Docking Station.

Mounting Holes x 4

(bottom)

• Used to mount the Docking Station to a Display

or Surface.

4 USB-C Port (Charging)

• Used to charge a connected USB Device.

• Supports up to 5V at 3A, 15W charging.

• While charging a connection to a Host

Computer is not required.

5 USB-A Port (Charging)

• Used to charge a connected USB Device.

• Fast-charge devices that comply with USB

Battery Charging Specication Revision 1.2.

• Supports up to 5V at 1.5A, 7.5W charging.

• While charging a connection to a Host

Computer is not required.

6 3.5 mm Audio Port

• Used to connect an Audio Device (e.g.

headphones, speakers, headset, etc.) to the

Docking Station.

Dual-4K Dock | Thunderbolt 3/USB-C | DP 1.4/HDMI

7 Lock Slot (side) • Used to deter the theift of the Docking Stocking.

8 RJ45 Port

• Used to connect the Docking Station to a

Network Device.

9 USB-A Ports (2)

• Used to connect a USB Device (mouse, ash

drive, etc.).

10 USB-C Port

• Used to connect a USB Device (mouse, ash

drive, etc.)..

Video 1 DisplayPort Port/

HDMI Port

DisplayPort Port:

• Used to connect a Display Device to the

Docking Station.

- or -

HDMI Port:

• Used to connect a Display Device to the

Docking Station.

Video 2 DisplayPort Port/

HDMI Port

DisplayPort Port:

• Used to connect a Display Device to the

Docking Station.

- or -

HDMI Port:

• Used to connect a Display Device to the

Docking Station.

13 DC 20V Port • Used to power the Docking Station.

Requirements

For the latest requirements and User Manual, please visit www.startech.com/

TB3CDK2DH or www.startech.com/TB3CDK2DHUE

Powering the Docking Station

1. Select the appropriate regional Power Cord and connect it to the Universal Power

Adapter.

2. Connect the Universal Power Adapter to the DC 20V Port on the Docking Station

and to an AC Electrical Outlet.

1 2 4 5 6 83

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Andet computertilbehør
Model:	TB3CDK2DH
Vekselstrømsindgangsspænding:	100 - 240 V
Bredde:	220 mm
Dybde:	80 mm
Højde:	30 mm
Vægt:	250 g
Brugervejledning:	Ja
Produktfarve:	Sort, sølv
Pakkevægt:	1100 g
Pakkedybde:	160 mm
Pakkebredde:	305 mm
Pakkehøjde:	110 mm
HD-type:	4K Ultra HD
Opbevaringstemperatur (T-T):	-20 - 70 °C
Relativ luftfugtighed ved drift (H-H):	0 - 95 %
Antal HDMI-porte:	2
Ethernet LAN-porte (RJ-45):	1
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	2
Udgange til hovedtelefoner:	1
Ethernet LAN:	Ja
Driftstemperatur (T-T):	0 - 35 °C
Ethernet LAN-datahastigheder:	100,1000 Mbit/s
Kabler inkluderet:	Thunderbolt
Forbindelsesteknologi:	Ledningsført
DC-in-stik:	Ja
Udgangsspænding:	20 V
Udgangsstrøm:	8.5 A
AC-adapter inkluderet:	Ja
Indbygget kortlæser:	Ingen
Bæredygtighedscertifikater:	CE, RoHS
Slot til kabellås:	Ja
Understøttede Windows-operativsystemer:	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Understøttede Mac-operativsystemer:	Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Understøttede Linux-operativsystemer:	Ubuntu 18.04 LTS, Ubuntu 20.04 LTS
Hovedkassen højde (udvendigt):	320 mm
Hovedkassens længde (udvendigt):	500 mm
Hovedkassens bredde (udvendigt):	248 mm
Værtsgrænseflade:	Thunderbolt 3
Indgangsstrøm:	2.5 A
Maksimal opdateringshastighed:	60 Hz
Antal DisplayPorts:	2
Kabellåseslids type:	Kensington
Produkter pr. hovedkasse (udvendigt):	6 stk
Produkter pr. forsendelseskasse (indvendig):	40 stk
Kombineret hovedtelefon/mikrofon-port:	Ja
Strømstiktype:	Type N
Maksimal digital opløsning:	3840 x 2160 pixel
Dataoverførselshastighed:	10 Gbit/sek.
USB strømforsyning:	Ja
Kompatible strømplug typer:	AU, JP, US
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte:	2
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte:	1
Antal understøttede skærme:	2
USB strømforsyning op til:	96 W
Chipsæt:	C-Media - CM6533, Genesys Logic - GL3590, Genesys Logic - GL3523, Realtek - RTD2184, Titan Ridge - JHL7440, Cypress - CCG5C
