Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support

Manual Revision: October 16, 2024

Product ID

U1-USB-ISOLATOR

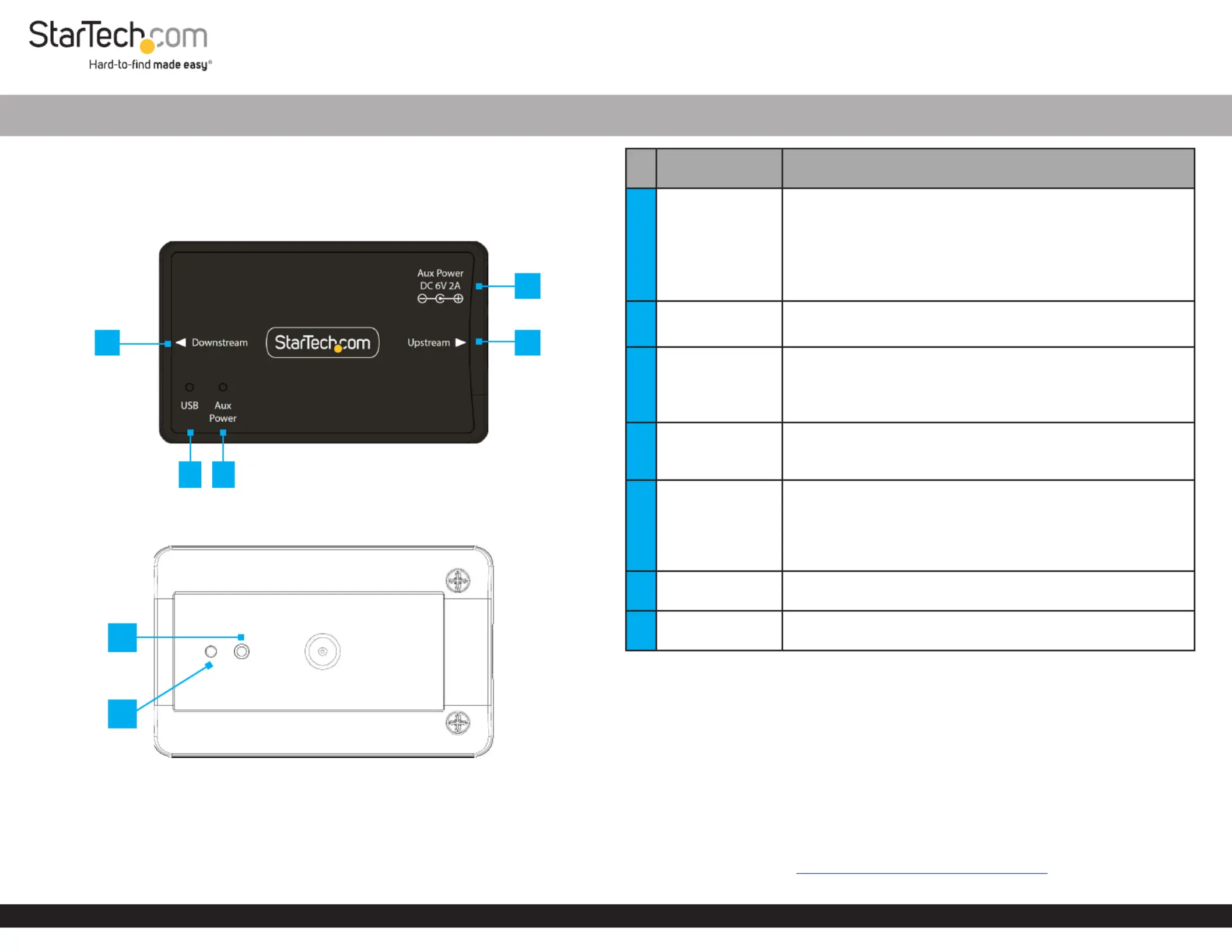

Top View

Bottom View

1-Port Industrial USB 2.0 Galvanic Isolator - Up to 6000V

Port/Connector Function

1USB LED

• Solid Blue: Indicates there’s a connected to the USB Device

Isolated USB Device Port

Note: The Host Computer must detect the connected USB

Device before the LED turns on.

• O: No connected on the USB Device Isolated USB

Device Port

2Aux Power LED • Solid Green: External power is being supplied

• O: No external power is being supplied

Isolated USB

Device Port

(Downstream)

• USB Type-A port. Provide up to 250mA output when not

using the optional power adapter

• USB 2.0 compliant

• Supports 1.5Mbps and 12Mbps only

4USB Host Port

(Upstream)

• USB Type-B port

• Connect to the using the supplied Host Computer USB-B

to USB-A Cable

5DC Power Port

• (Optional) If the requires more than Isolated USB Device

250mA and less or equal than 500mA, an external Power

Supply (not included) is required

• 6V DC 2A Power Adapter Recommended

• Type M barrel plug: Ø 5.5x2.1x9.5mm. Center tip positive

6DIN Rail

Mounting Point • Use to secure the included DIN Rail Mounting Kit

7Guide Peg • Helps to install the so it can be DIN Rail Mounting Kit

installed only in one way

Package Contents

• USB Isolator x 1

• 3ft (0.9m) USB-B to USB-A Cable x 1

• Adhesive Strip x 1

• DIN Rail Mounting Kit x 1

• Quick-Start Guide x 1

Requirements

For the latest manuals, product information, technical specications, and declarations of

conformance, please visit: www.StarTech.com/U1-USB-ISOLATOR

*Product may vary from image

1 2

Regulatory Compliance

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment to an outlet on a dierent circuit than the receiver.

- Consult the dealer or an experienced radio/TV technician for help.

Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority

to operate the device. If shielded interface cables are included with the product, or if additional components or accessories are

designated for use with the installation, they must be used to ensure compliance with FCC regulations.

ISED Statement / Déclaration d’ISDE

CAN ICES-003(B) / NMB-003(B)

This Class B digital apparatus complies with Canadian ICES-003.

This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1)

this device may not cause interference, and (2) this device must accept any interference, including interference that may cause

undesired operation of the device.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est

autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’appareil doit accepter tout

brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to .

www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Crescent

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Road

Brackmills,

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

Surface Mounting (optional)

1. Remove one of the protective backings from the .Adhesive Strip

2. Attach the to the back of the by applying Adhesive Strip USB 2.0 Galvanic Isolator

light pressure for a few seconds.

3. Remove the remaining protective backing from the .Adhesive Strip

4. Firmly attach the to a clean at surface.USB 2.0 Galvanic Isolator

• Phillips head screwdriver

• Available USB-Type A port on the Host Computer

• (Optional) 6V DC Power Supply with Type M Barrel Plug

Installation

1. Connect the side of the to the . USB-Type B USB-B to USB-A Cable USB Host Port

Connect the other end of the cable to an available port on the USB Type-A Host

Computer.

Note: No drivers or additional software is needed for the USB 2.0 Galvanic Isolator.

2. Connect an to the .USB device Isolated USB Device Port

DIN Rail Mounting (optional)

1. Use the at the bottom of the to align the Guide Peg USB 2.0 Galvanic Isolator

DIN Rail Mounting Kit Phillips Head Screwdriveinto is correct position. Use a r to

install the self-tapping screw and secure the . (Figure 1) DIN Rail Mounting Kit

2. Mount the r by inserting the onto theUSB 2.0 Galvanic Isolato Mounting Plate DIN

Rail DIN Rail at an angle, starting from the top then push against the . (Figure 2)

Quick-Start Guide

Figure 2

Figure 1
