Side 1/2

1. Input selection button

2. Mode selection switch

3. IR sensor

Quick Start Guide

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 06/27/2017

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/VS221HD4KA

Packaging contents

• 1 x 2-port HDMI switch

• 1 x remote control

• 1 x universal power adapter (NA/EU/UK/AU)

• 1 x RJ11 cable

• 1 x RJ11 to DB-9 serial adapter

• 1 x mounting kit

• 1 x quick start guide

System requirements

• 2 x HDMI enabled Video Source Device w/ HDMI cable

(i.e. Blu-ray player, computer, etc.)

• 1 x HDMI enabled Display Device w/ cable (i.e. Television,

projector, etc.)

Operating system requirements are subject to change. For the latest

requirements, please visit www.startech.com/VS221HD4KA.

VS221HD4KA

2-Port HDMI® Automatic Switch – 4K

*actual product may vary from photos

Installation

Note: Ensure your HDMI enabled video source devices, and the

HDMI enabled display are powered o before you begin installation.

1. Connect an HDMI cable (not included) from each of the HDMI

output ports on your HDMI source devices, to the HDMI input

port on the HDMI switch.

Notes: Each port is numbered, please take note of which number

is assigned to each HDMI source device.

2. Connect an HDMI cable (not included) from the output port on

the HDMI Switch to your HDMI display device.

3. Power on your HDMI display, followed by each of your HDMI

source devices.

4. Connect the included power adapter from an available power

source to the power adapter port on the HDMI switch.

5. (Optional for serial control) Connect the included RJ11 cable to

the RJ11 to DB-9 serial adapter. Then connect the D9 connector to

a 9-pin serial port on your computer system.

6. Your HDMI switch is now ready for operation.

Operation

Automatic operation

The HDMI switch features automatic operation that allows the switch

to automatically select the most recently activated or connected

HDMI source device.

Simply connect a new device or turn on an already connected device

to automatically switch video sources.

Priority operation

The HDMI switch features priority operation which will prioritize port

1 and port 2 respectfully. When you turn on the higher prioritized

video source device (port-1), that video source will automatically be

selected. Turning o the device will automatically switch back to the

lower prioritized video source (port-2).

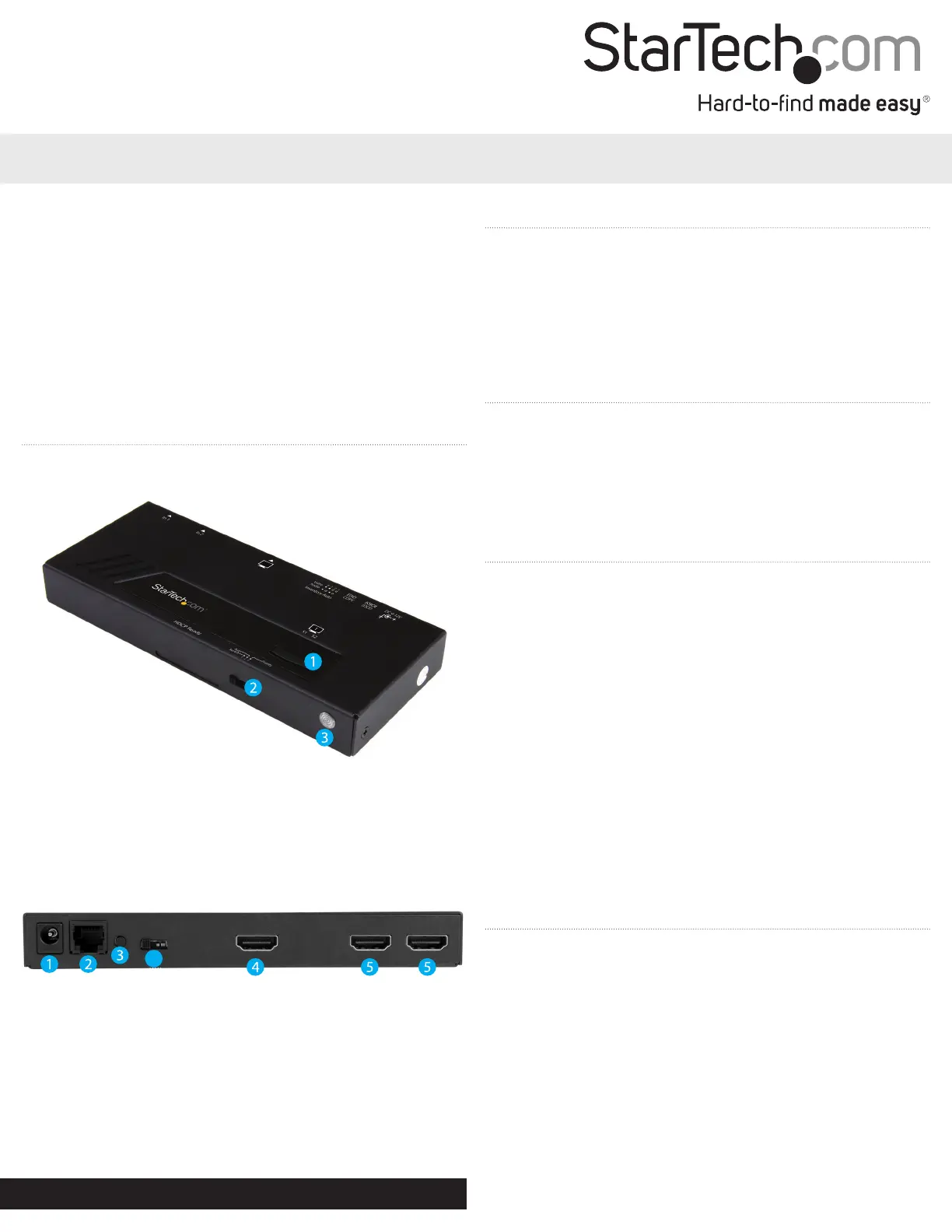

Product overview

Front View

Rear View

1. Power adapter port

2. RJ-11 serial jack

3. EDID copy button

4. HDMI output port

5. HDMI input ports (in1 & in2)

6. EDID setting switch

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Router
Model:	VS221HD4KA
Produktfarve:	Sort
Pakkevægt:	835 g
Pakkedybde:	156 mm
Pakkebredde:	235 mm
Pakkehøjde:	63 mm
Opbevaringstemperatur (T-T):	-20 - 70 °C
Relativ luftfugtighed ved drift (H-H):	0 - 80 %
HDCP:	Ja
Driftstemperatur (T-T):	0 - 50 °C
Maksimal opløsning:	3840 x 2160 pixel
Indgangsspænding for vekselstrømsadapter:	100 - 240 V
Udgangsspænding for vekselstrømsadapter:	12 V
Kabler inkluderet:	Telefon (RJ-11)
Understøttede grafikopløsninger:	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Fjernbetjening inkluderet:	Ja
Lyd-output kanaler:	7.1 kanaler
Certificering:	CE, FCC
DC-in-stik:	Ja
LED-indikatorer:	Activity, Power
AC-adapter inkluderet:	Ja
Harmoniseret systemkode (HS):	85176990
Bæredygtighedscertifikater:	RoHS
HDMI-version:	1.4
Fjernbetjeningstype:	IR
Monteringsbeslag inkluderet:	Ja
HSMI-indgang:	2
Antal HDMI-udgange:	1
Indgangsstrøm til vekselstrømsadapter:	1.5 A
Understøttelse af lyd:	Ja
