Side 1/2

1. Input selection button

2. HDMI input port (in1)

3. Mode selection switch

4. IR sensor

5. LED Indicators

Quick Install Guide

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 05/16/2023

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/VS421HD4KA.

Packaging contents

• 1 x 4-port HDMI switch

• 1 x remote control

• 1 x universal power adapter (NA/EU/UK/AU)

• 1 x RJ11 cable

• 1 x RJ11 to DB-9 serial adapter

• 1 x mounting kit

• 1 x quick start guide

System requirements

• 4 x HDMI enabled Video Source Device w/ HDMI cable

(i.e. Blu-ray player, computer, etc.)

• 1 x HDMI enabled Display Device w/ cable (i.e. Television,

projector, etc.)

Operating system requirements are subject to change. For the latest

requirements, please visit www.startech.com/VS421HD4KA.

VS421HD4KA

4-Port HDMI® Automatic Switch – 4K

*actual product may vary from photos

Installation

Note: Ensure your HDMI enabled video source devices, and the HDMI

enabled display are powered o before you begin installation.

1. Connect an HDMI cable (not included) from each of the HDMI

output ports on your HDMI source devices, to the HDMI input

port on the HDMI switch.

Notes: Each port is numbered, please take note of which number

is assigned to each HDMI source device.

2. Connect an HDMI cable (not included) from the output port on

the HDMI Switch to your HDMI display device.

3. Power on your HDMI display, followed by each of your HDMI

source devices.

4. Connect the included power adapter from an available power

source to the power adapter port on the HDMI switch.

5. (Optional for serial control) Connect the included RJ11 cable to

the RJ11 to DB-9 serial adapter. Then connect the D9 connector to

a 9-pin serial port on your computer system.

6. Your HDMI switch is now ready for operation.

Operation

Automatic operation

The HDMI switch features automatic operation that allows the switch

to automatically select the most recently activated or connected

HDMI source device.

Simply connect a new device or turn on an already connected device

to automatically switch video sources.

Priority operation

The HDMI switch features priority operation which will prioritize

ports 1, 2, 3 and 4 respectfully. When you turn on a higher prioritized

video source device (i.e port-1 ), that video source will automatically

be selected. Turning o the device will automatically switch back to

the lower prioritized video source (i.e: port-4).

Manual operation

Manual mode enables you to switch between video sources with

push button operation.

Manual operation with selection button

Press the input Selection button, on the front of the switch to toggle

between each video source device.

The active port LED indicator will light as video sources are switched,

indicating which port is selected.

Manual operation with remote control

Press buttons 1 through 4 on the remote control to switch between

HDMI ports in1 to in4 respectively.

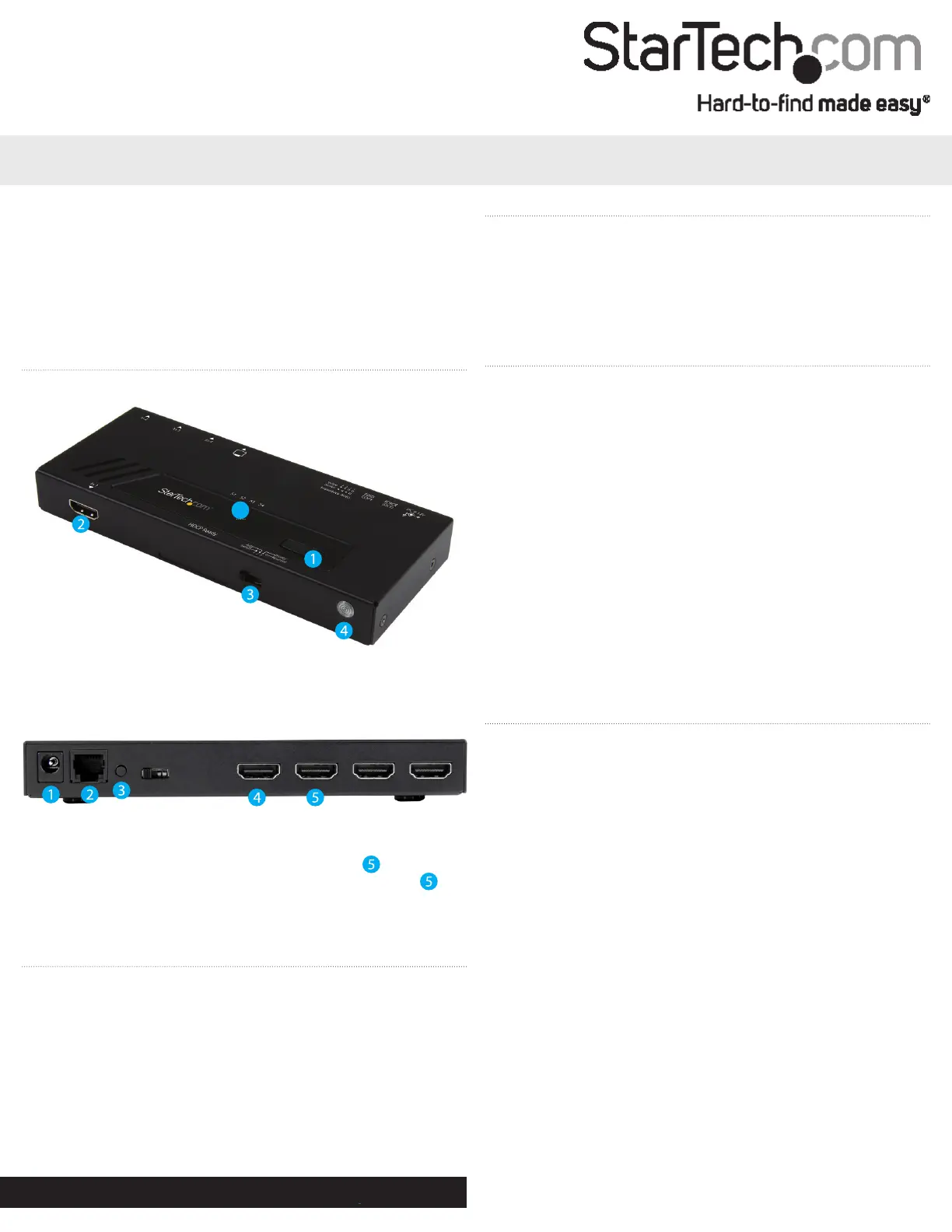

Product overview

Front View

Rear View

1. Power adapter port

2. RJ-11 serial jack

3. EDID copy button

4. HDMI output port

5. HDMI input ports (in2, in3, in4)

Produkt Specifikationer

Mærke:	StarTech.com
Kategori:	Router
Model:	VS421HD4KA
Bredde:	65 mm
Dybde:	156 mm
Højde:	20 mm
Vægt:	291 g
Produktfarve:	Sort
Pakkevægt:	836 g
Pakkedybde:	155 mm
Pakkebredde:	235 mm
Pakkehøjde:	64 mm
Understøttede videotilstande:	1080p
Opbevaringstemperatur (T-T):	-10 - 60 °C
Relativ luftfugtighed ved drift (H-H):	0 - 80 %
Antal HDMI-porte:	4
HDCP:	Ja
Strømforbrug (typisk):	18 W
Driftstemperatur (T-T):	0 - 40 °C
Maksimal opløsning:	3840 x 2160 pixel
Indgangsspænding for vekselstrømsadapter:	100 - 240 V
Udgangsspænding for vekselstrømsadapter:	12 V
Hurtig start guide:	Ja
Kabler inkluderet:	Telefon (RJ-11)
Understøttede grafikopløsninger:	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Fjernbetjening inkluderet:	Ja
Lyd-output kanaler:	7.1 kanaler
Certificering:	CE, FCC, TAA, REACH
DC-in-stik:	Ja
LED-indikatorer:	Activity, Power
AC-adapter inkluderet:	Ja
Harmoniseret systemkode (HS):	85176990
Bæredygtighedscertifikater:	RoHS
Maksimal opdateringshastighed:	30 Hz
HDMI-version:	1.4
Monteringssæt:	Ja
Vekselstrømsadapterens udgangsstrøm:	1.5 A
Fjernbetjeningstype:	IR
Monteringsbeslag inkluderet:	Ja
Video porttype:	HDMI
Understøttelse af lyd:	Ja
