CL-M100D Studio Panel LED Light
Ver:B
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
USER MANUAL
SWIT Electronics Co.,Ltd.
Thank you for choosing SWIT products. Please read the instructions before using, and keep it for future reference.
Model
LED QTY
Color Temperature
Brightness
Illumination
Half Peak Beam Angle
CRI
TLCI
SSI（D55）
Working Voltage
Output Power
Dimension
Weight
CL-M100D
576pcs
2700K-6500K
0%-100%
3400 Lux@1m
About 62°
98
99
73
AC 100-240V,50/60Hz ; DC 11-17V
≤130W
See Fig.1、Fig.2、Fig.3
5.6Kg
Fig.1 CL-M100D Front View Fig.2 CL-M100D Side View
1.Do not disassemble the panel light or touch the interior with metal objects to avoid damage；
2.Do not store the panel light in dusty or wet environment to avoid damage；
3.USB interface is reserved interface, please use it according to the specified environment of the company's related products,
not for other purposes, so as not to cause loss；
4.Do not connect the output device of the DMX signal in the panel light network when using the mutual control function of the panel light,
otherwise the function can not be used normally；
5.Only use the light in the temperature range of -10℃-40℃.

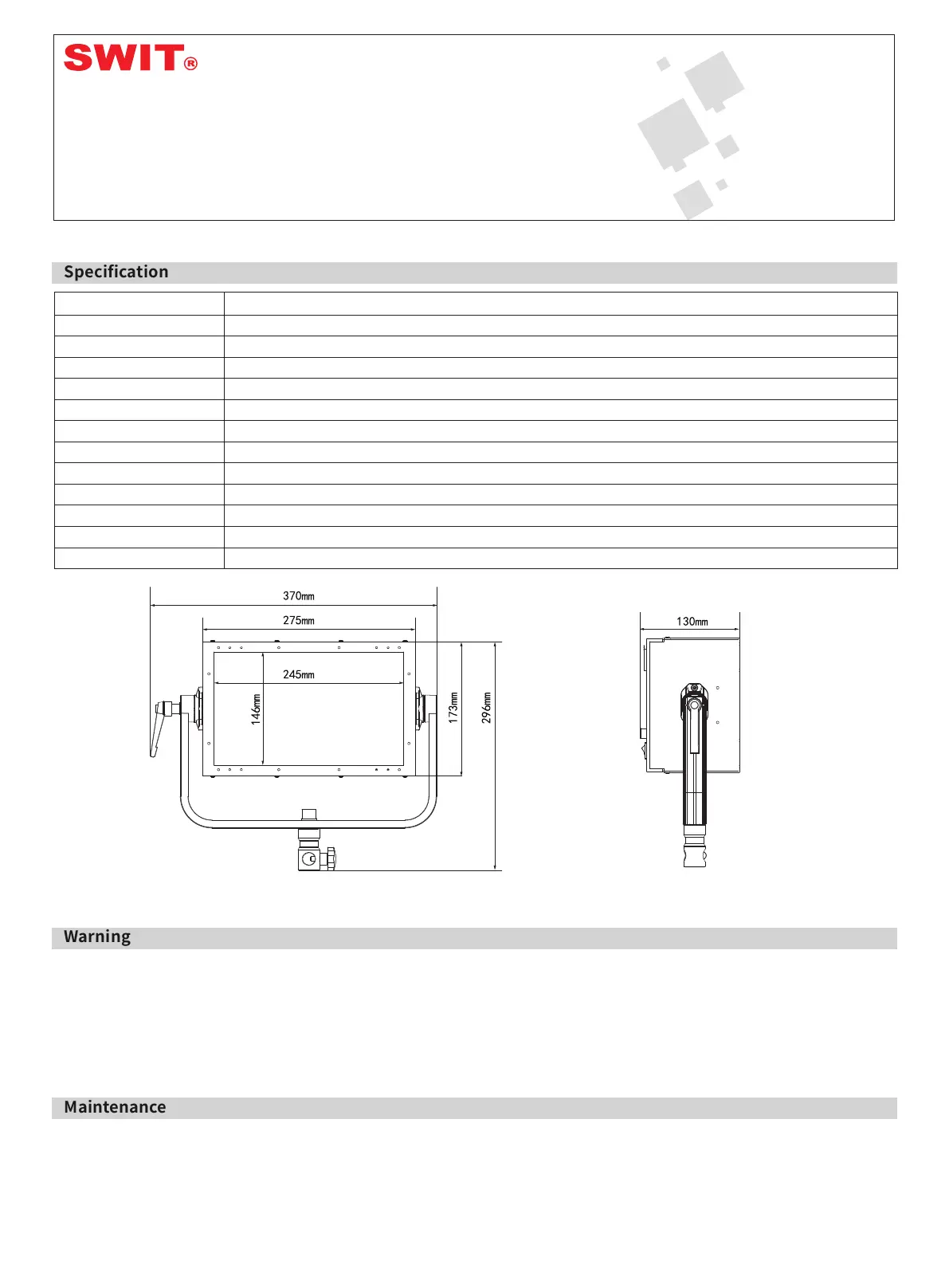

Overall Dimension
LCD Information
Installation of safety rope

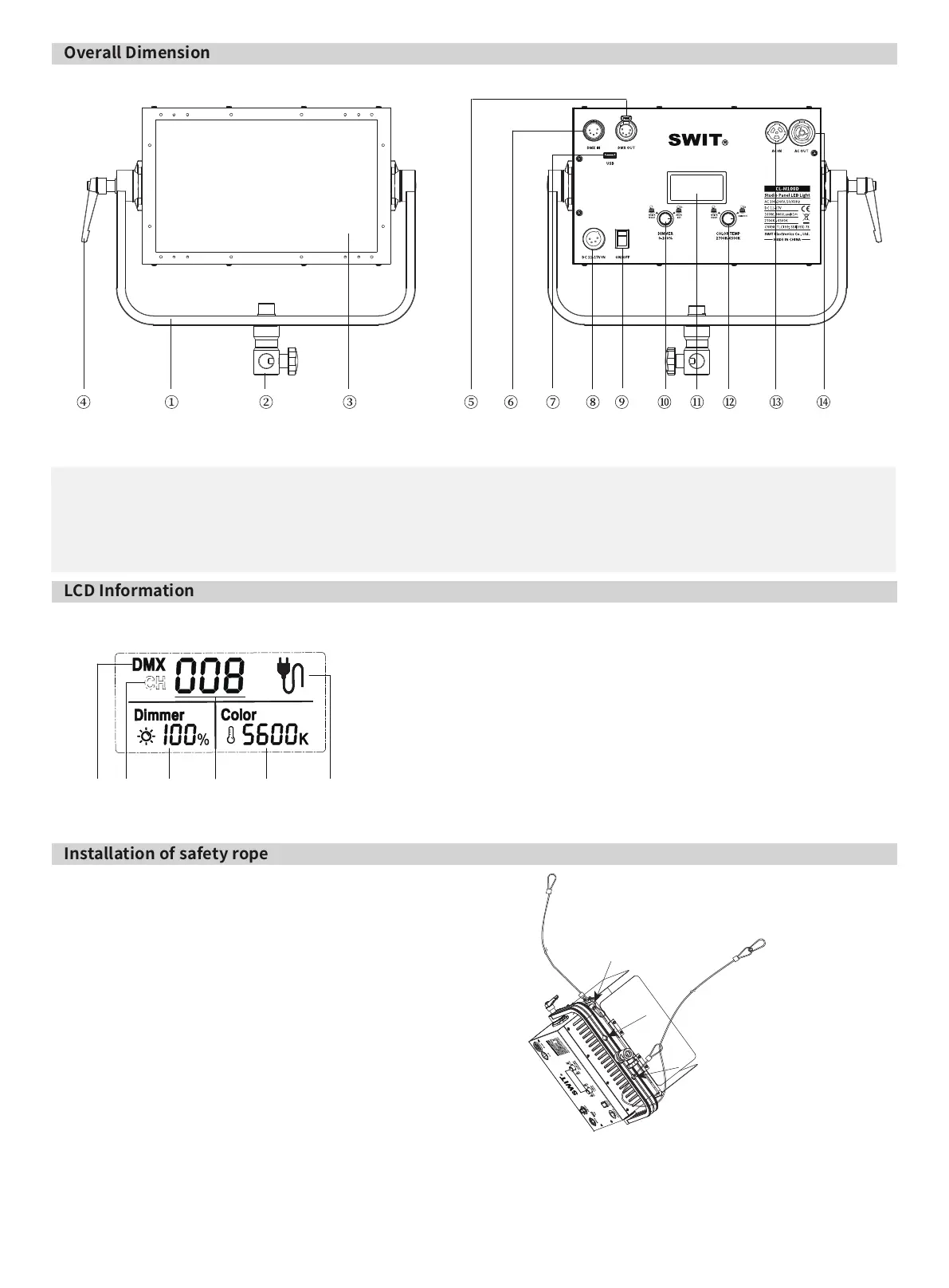

1.Front View： 2.Back View
① U-Bracket
② York Connector
③ Diffuser
④ Fasten Knob
⑤ DMX OUT
⑥ DMX IN
⑦ USB
⑧ DC 11-17 IN
⑨ Power switch
⑩ DIMMER djusting knob
⑪ LCD
⑫ COLOR Temp adjusting knob
⑬ AC IN
⑭ AC OUT
Take“CCT=5600K，Dimmer=100%，Full capacity，DMX Communication mode，DMX address “008” for example：
Fig.5 LCD Information
Fig.6 Installation diagram of safety rope
① Current Mode⸺DMX Mode
② Current Mode⸺Group Mode
③ Current Dimmer value
④ Current communication address
⑤ Current color value
⑥ Power indicator
When lifting and using the lamps, please pass the safety rope
(hereafter referred to as "safety rope") through the lamp wire
hole and the round tube of the barn door according to the method
shown in Fig. 6, so as to establish an effective connection between
the product and the hanging devices such as hinges.
Precautions for use of safety rope are as follows:
1) If you use your own safety rope, please confirm that the load of
the safety rope is greater than that of this product;
2) The safety rope cannot be dragged on the rough surface;
3) Please check carefully before using the safety rope, where the
rope strand is broken or the number of broken wires in one twist
distance exceeds 6, the safety rope shall not be used.Safety rope
with obvious wear, corrosion, deformation and damage caused by heat or arc is not allowed to use;
4) The safety rope is strictly prohibited from contact with any charged body, hot object or flame;
5) The two safety rope buckles shall not be directly connected with each other, and D shackle in accordance with the load specifications
must be added.
① ② ③ ④ ⑤ ⑥
Fig.3 CL-M100D Front View Fig.4 CL-M100D Back View
