Dia®
Model Numbers Specification
353GB-12 (18, 24, 36, 42)
ADA Grab Bar Series
Operation & Maintenance Manual
☐353GB-12 12" Grab Bar for ADA Applications
☐353GB-18 18" Grab Bar for ADA Applications
☐353GB-24 24" Grab Bar for ADA Applications
☐353GB-36 36" Grab Bar for ADA Applications
☐353GB-42 42" Grab Bar for ADA Applications

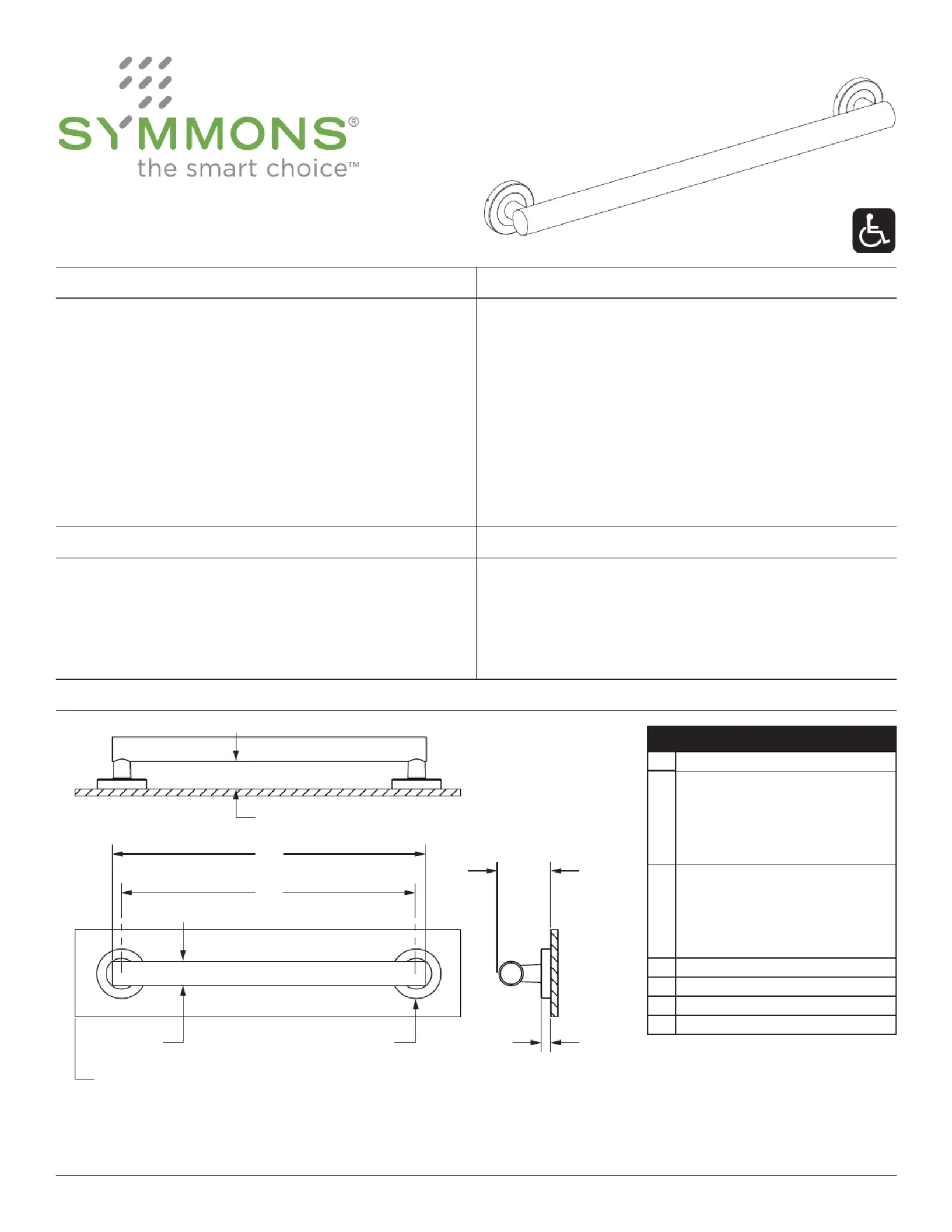

Dimensions
Measurements
A 1-1/2", 38 mm
B
13-1/4", 337 mm (353GB-12)
19-1/4", 489 mm (353GB-18)
25-1/4", 641 mm (3h53GB-24)
37-1/4", 946 mm (353GB-36)
43-1/4", 1099 mm (353GB-42)
C
12", 305 mm (353GB-12)
18", 457 mm (353GB-18)
24", 610 mm (353GB-24)
36", 914 mm (353GB-36)
42", 1067 mm (353GB-42)
D Ø 1-1/2", 38 mm
E (2x) Ø 3-1/16", 78 mm
F 3-1/16", 78 mm
G 1/2", 13 mm
Note: Dimensions subject to change without notice.
Finish Options
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Warranty
Note: Append appropriate -sufx to model number.
☐-STN Satin Nickel finish
• Supports up to 250 lbs.
• 1-1/2" bar diameter
• 3" ange diameter
• Bar extends 1-1/2" from wall
• Concealed mounting for a clean look
• Meets WW-P-541/8B Federal Specication for
Manufacturing
• Meets ADA load requirements when properly installed
• Stainless steel construction
• Grab bar compatible with WingIts stainless steel grab
bar fasteners (p/n GBW40) for drywall applications
BB
DD GG
FF
FINISHED WALLFINISHED WALL
AA
CC
EE
2
Parts Breakdown
WALL STUD
Grab Bar must be
secured with at least
two (2) of the three (3)
screws at each end on
the inner side of anges.
(6) WOOD SCREWS
#10 x 2-1/2"
WALL

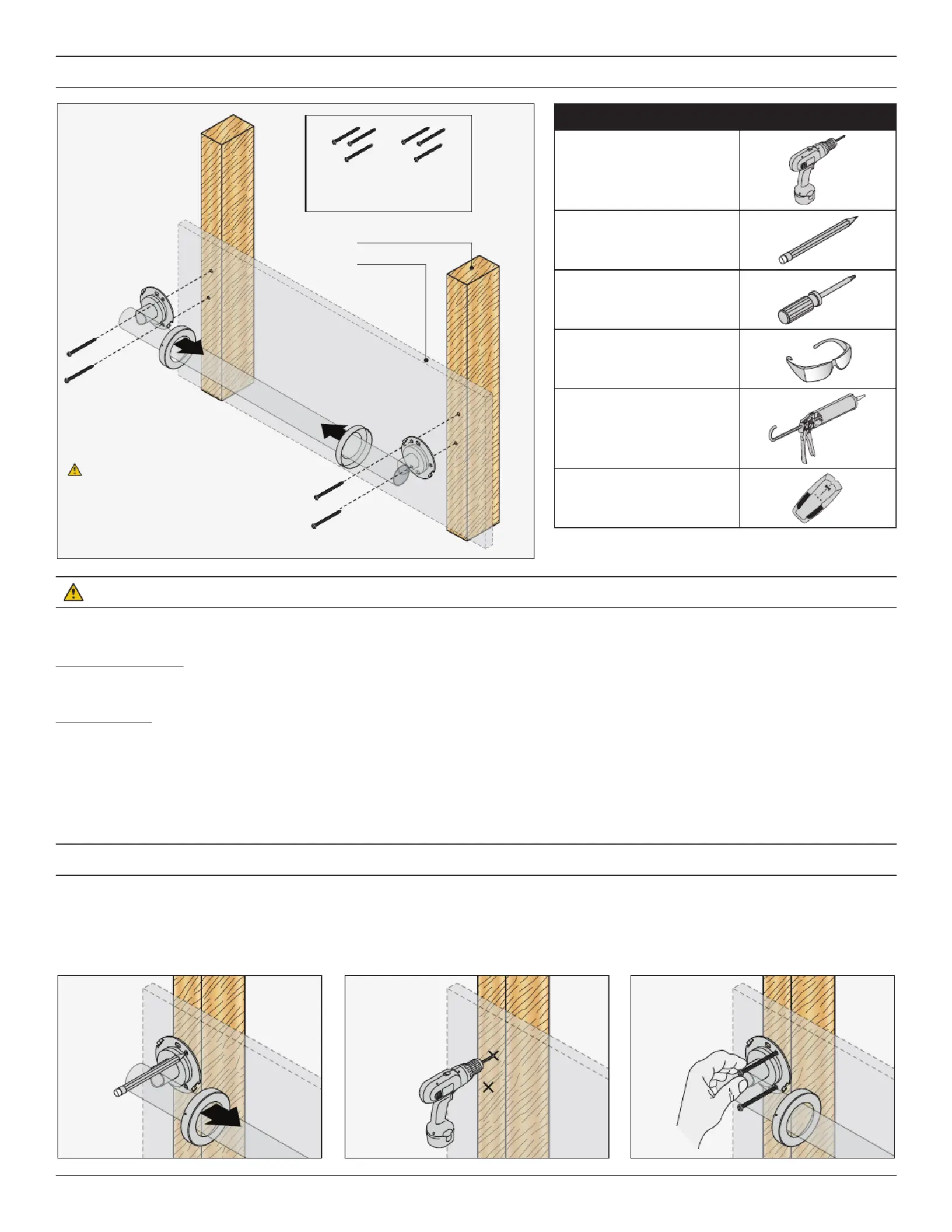

IMPORTANT NOTES FOR PROPER INSTALLATION
Installation (Wall & Wall Studs)
1) Place Grab Bar at desired position.
Slide covers over bar to reveal anges.
Mark drill hole locations with pencil at
each end on inner side of anges.
2) Remove Grab Bar from wall. Use
drill with 7/64" drill bit to drill holes
into wall and wall studs at the
marked positions.
3) Align mounting holes on Grab Bar
with drill holes. Insert wood screws
into pilot holes for wall and wall
studs. Hand tighten wood screws.
Tools Required for Installation
Drill:
• 7/64" Drill Bit for Wall
• 1/4" Carbide Tip Drill
Bit for Ceramic Tile
Pencil
Phillips Head
Screwdriver
Safety Glasses
Silicone
Stud Finder
DO NOT install this product without rst reading and understanding the instructions. If you are unable to understand
these warnings and instructions, contact professional or technical personnel for assistance - otherwise injury may occur.
Grab Bar Location
• For proper mounting heights and location consult with your state and local code ofcial having jurisdiction over the
installation.
Solid Support
• Grab Bar ends must be mounted with both end positions over a wall stud. A stud nder can be used to locate wall
studs. Contractor is responsible for installing Grab Bar to wall studs as instructed.
• Secure through wall board or tile to the wall stud so as to hold a minimum of 250 pounds of force.
• At least two (2) of the three (3) wood screws provided must be used on each end of the Grab Bar, top and bottom, to
properly secure. Standard size wall stud limits using more than two (2) wood screws.
• If using a drill to install wood screws, a drill bit extension must be used to avoid damaging the Grab Bar.
