DS Creations
Model Numbers Specification
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
0323-3TP (CD0323-3TP)
Installation Guide
0323-3TP
Toilet Paper Holder
Toilet Paper Holder shall be made from metal construction,
plated in standard polished chrome nish.
Toilet Paper Holder can be mounted vertically or
horizontally.

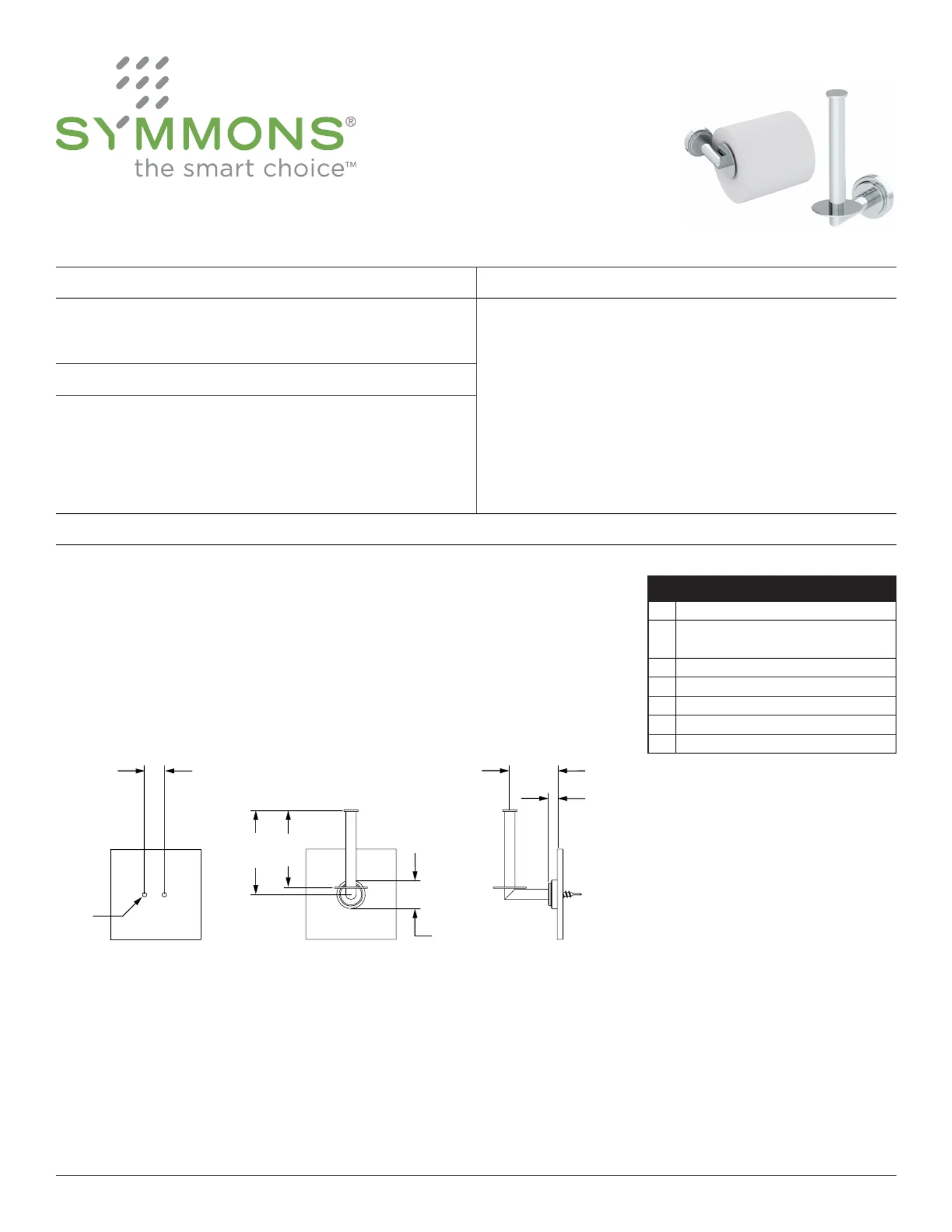

Dimensions
Measurements
A 1-3/16", 30 mm
B
(2x) Hole Size
Ø 5/16", 8 mm
C 5-5/8", 143 mm
D 5-1/8", 131 mm
E Ø 1-7/8", 48 mm
F 3-1/8", 80 mm
G 5/8", 15 mm
Note: Dimensions subject to change without notice.
AA
BB
CC DD
EE
FF
GG
Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621■ ■ ■ ■
Copyright © 2018 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-2212 REV B 050818■ ■ ■ ■

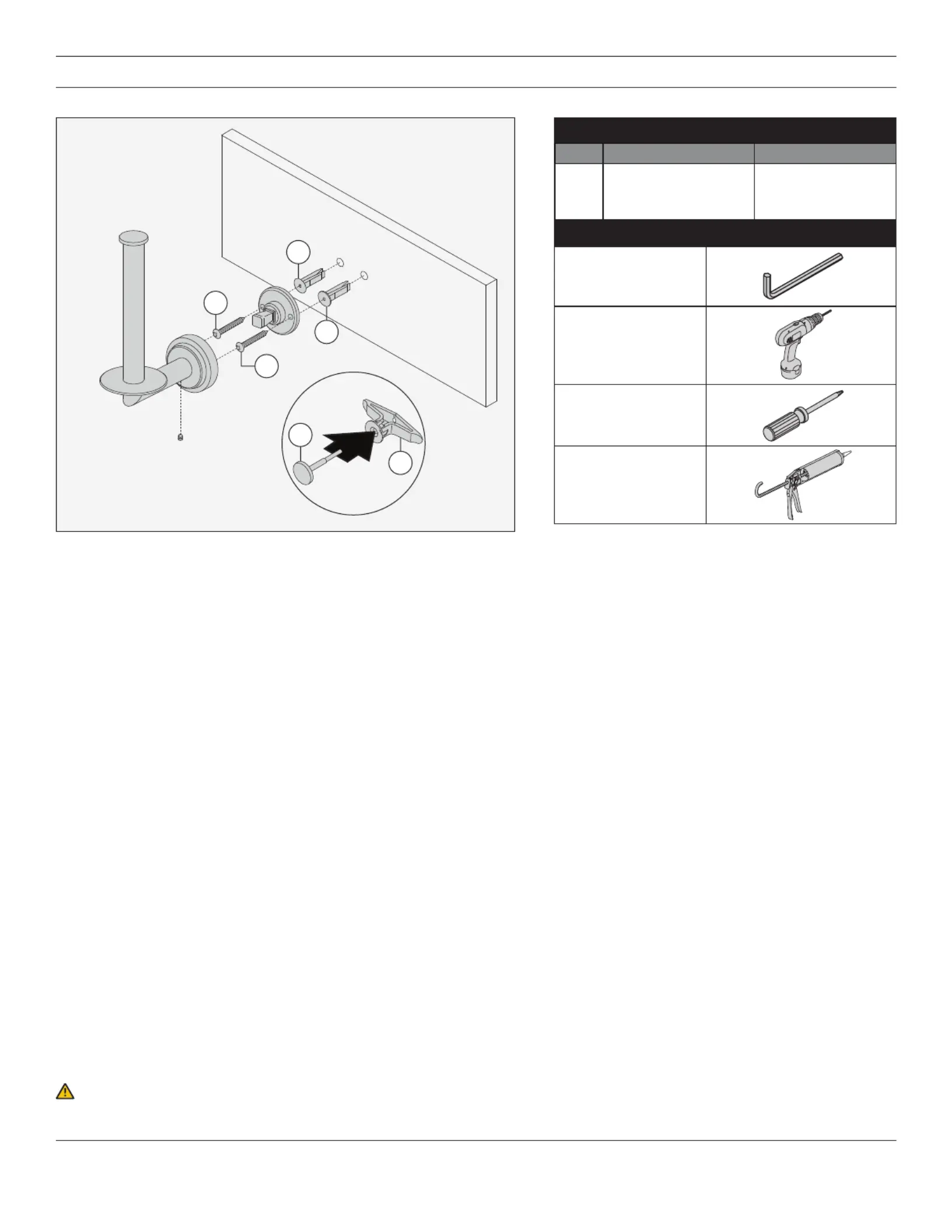

Parts Breakdown
C
B
A
A
B
B
Tools Required for Installation
Allen Wrench:
2.5 mm
Drill
Phillips Head
Screwdriver
Silicone
Replacement Parts
Item Description Part Number
A
B
C
Mounting Screws
Drywall Anchors
Anchor Tool
HW-03141
Notes:
1) For drywall 1/2 inch thick or less, insert anchor tool (C) into
drywall anchor (B) to secure behind wall prior to installing trim.
2) Apply a bead of silicone around the perimeter of trim installed
ush to nished wall.
WARNING: This product can expose you to chemicals including lead, which is known to the state of California to
cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
