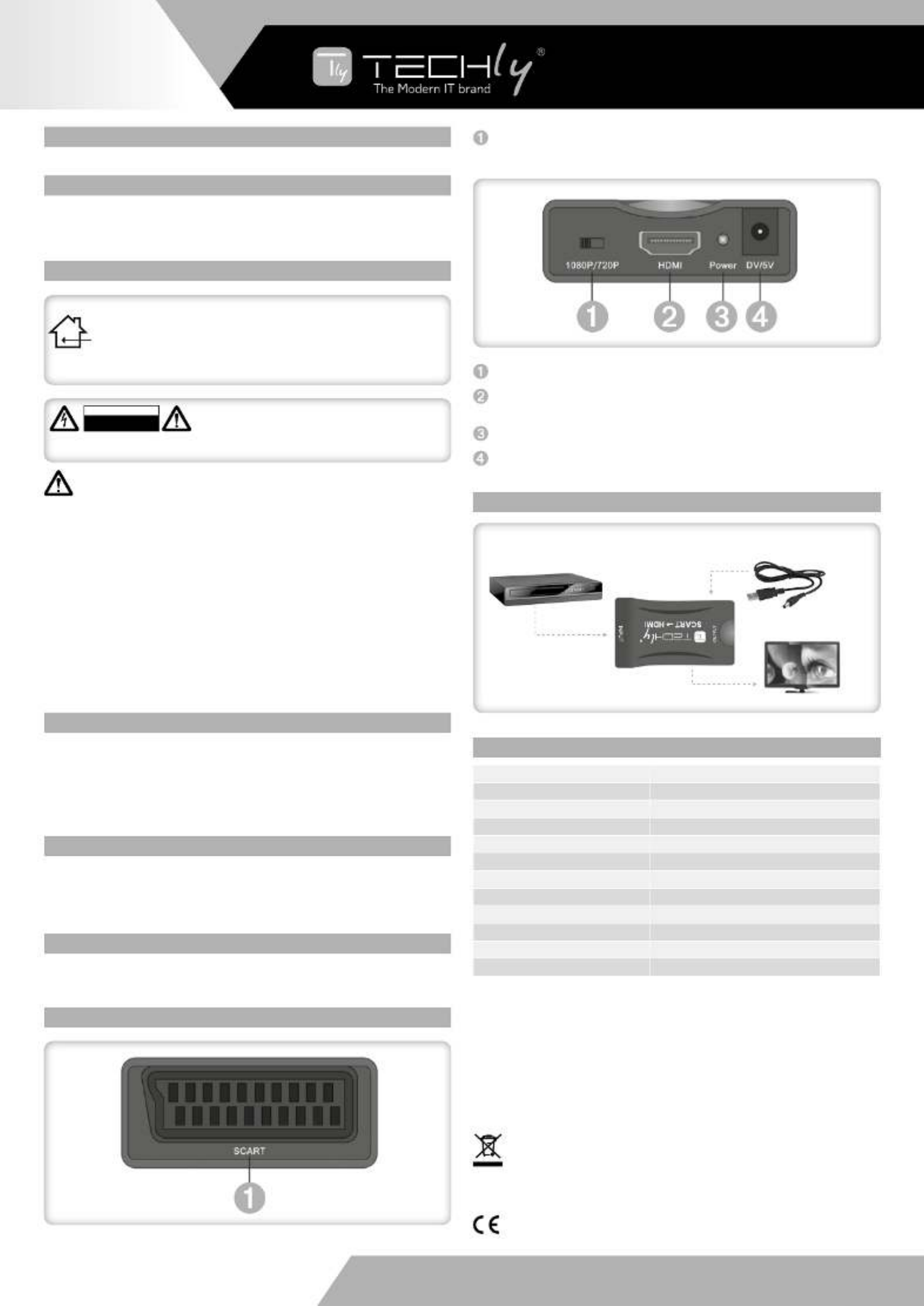

QUICK INSTALLATION GUIDE

All brand names and trademarks are properties of their respective owners.

USER MANUAL

Dear Customer

Thank you for purchasing this product. For optimum performance and safety, please read these

instructions carefully before connecting, operating or adjusting this product. Please keep this manual

for future reference.

IMPORTANT SAFETY INSTRUCTION

INTENDED USE

We do not permit using the device in other ways like described in this user’s manual.

Use the product only in dry interior rooms. Not attending to these regulations and safety

instruction might cause fatal accidents, injuries, and damages to persons and property.

The manufacturer/supplier assumes no liability for damages caused by failure to

comply with the intended use.

To reduce risk of electric shock, this product should ONLY be

opened by an authorized technician when service is required.

Disconnect the product from mains and other equipment if a

problem should occur. Do not expose the product to water or moisture.

AT T E N T I O N

RISK OF ELECT RIC SHOCK

DO NOT OPEN

CAUTION

• Your product is not a toy and is not meant for children, because it contains small parts which can be

swallowed and can injure when used inappropriately!

• Please install the system and devices attached to it in a way that persons cannot be injured, or

objects not be damaged for example by dropping or stumbling.

• Please remove the packing materials, because children may cut themselves on them while playing.

Furthermore, there is a risk of swallowing and inhalation of incidentals and insulating material.

• Avoid places with high temperatures, or humidity, or places which might come into contact with

water. Do not install the product close to openings of air conditioners, or at places with an excessive

amount of dust or smoke. Keeps distance from ﬂammable and explosive devices.

• Do not install the product at places subject to vibration, or oscillation.

• Do not modify and alter the product and any accessories! Do not use any damaged parts.

• Keep enough space around all devices for a good ventilation and free motion and to avoid damages.

• Please do not touch the item with wet hands.

• Please hold the plug when unplugging. Do not pull the power cable directly.

• Please turn the unit off when it is not in use for a long period of time.

INTRODUCTION

This SCART To HDMI converter is a universal converter for analog SCART input to HDMI 1080p (60HZ)

output. It can connect the playback device only has SCART interface such as DVD, Set-top box to the

HD display device. The analog to digital conversion in this module employs 10 bits maximal 162MSPS

sampling, black/white level expansion, colour transition improvement, dynamic range expansion, blue

stretch, auto-detect and auto-convert the composite signal to 1080p(60Hz) output. Making video come

alive, delivering the sharpest, most realistic HD visuals.

FEATURES

• No need to install drivers, portable, ﬂexible, plug and play.

• Provide advanced signal processing to ensure great precision, colours, resolutions, and details.

• Support PAL, NTSC3.58. NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input.

• Support HDMI 1080p or 720p output.

PACKAGE CONTENTS

• 1xSCART to HDMI Converter

• 1xUSB cable

• 1xUser Manual

OPERATION CONTROLS AND FUNCTIONS

1080P/720P: Output video resolution switch button.

HDMI Output: Use a HDMI to HDMI cable to connect this converter to your TV which has a HDMI

input interface.

Power: When the DC5V power on, this indicator will be light.

DC 5V: Connect to USB power cable included into the package to connect the converter to the

computer's USB, TV's USB or to your 5V USB charger, etc.

CONNECTION DIAGRAM

SPECIFICATIONS

SCART: SCART Input Interface. Use a SCART to SCART cable to connect your SCART device to this

converter. Such like DVD, Sky Box, STB, etc

DVD/SET TOP BOX

USB POWER CABLE

SCART CABLE

HDMI CABLE

Note: Please correctly use and keep the converter to guarantee the product performance and work

as expected.

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modiﬁcations of the product or damage

caused due to incorrect use of this product.

In compliance with EU Directive WEEE this product is marked with this symbol. It means that

used electrical and electronic products should not be mixed with general household waste.

There is a separate collections system for these products in compliance with WEEE directive,

otherwise contaminative and hazardous substances can pollute the environment

With the CE sign, Techly®

ensures that the product is conformed to the basic European

standards and directives.

SCART Input PAL, NTSC3.58. NTSC4.43, SECAM, PAL/M, PAL/N

HDMI Output 1080p/720p

HDMI Output Cable Distance ≤7m AWG26 HDMI Standard Cable

SCART Input Cable Distance ≤8m AWG26 SCART Standard Cable

Max Working Current 350mA

Power Adapter Format AC 100V-240V 50/60HZ, DC 5V/1A

Operating Temperature Range -10~+55°C

Storage Temperature Range -20~+60°C

Operating Humidity Range 10~90%RH (No Condensation)

Storage Humidity Range 5~95%RH (No Condensation)

Case Dimension 88.5x57.5x25 (mm)

Weight 60g

WWW.TECHLY.COM

EN SCART TO HDMI CONVERTER

USER'S MANUAL
