GENERAL SAFETY INFORMATION
Some parts may have sharp edges. CARE must be taken when handling
For safety, wear a pair of work gloves when assembling or performing a
LIMITED WARRANTY
Tennsco warrants goods purchased hereunder to be free of defects in materials and workmanship for a period of one (1) year from the
in the event goods are damaged as a result of misuse, abuse, neglect, accident, improper application, modication or repair by person
shipment, or where the date stamps on the goods have been defaced, modied or removed. UNLESS CONSIDERED UNENFORCEABLE
a. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A
b. BUYERS REMEDY, IF ANY, FOR ANY DEFECTIVE GOODS SHALL BE LIMITED TO A REFUND BY SELLER OR REPLACEMENT
NO GOODS ACCEPTED FOR RETURN WITHOUT PRIOR APPROVAL. Seller shall have the right to inspect any goods claimed to be defective at Buyers place of business or require Buyer to return the
goods to Seller for inspection on Seller’s premises. Transportation charges covering returned goods will be borne by Seller only if such goods are proven to be defective, are covered by this warranty
and are returned within the warranty period stated above.
PK-2310918
ASSEMBLY INSTRUCTIONS & PARTS MANUAL
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE
Jumbo Counter-Height Storage Cabinet
Unassembled Models J1842A-N & J2442A-N
Tennsco LLC., Dickson, TN 37056-1888 • (866) 446-8686
LOAD CAPACITIES PER SHELF LEVEL
48w x 18d
48w x 24d
400 lbs.
400 lbs.
UNIT SIZE
WEIGHT CAPACITY
EVENLY DISTRIBUTED
ASSEMBLY OF J1842A-N OR J2442A-N CABINET
Tools Needed: A free
11
/ ” nut driver is included with each Tennsco cabinet. 32
Two people are recommended for assembly. Approximate assembly time: 20-30 minutes.

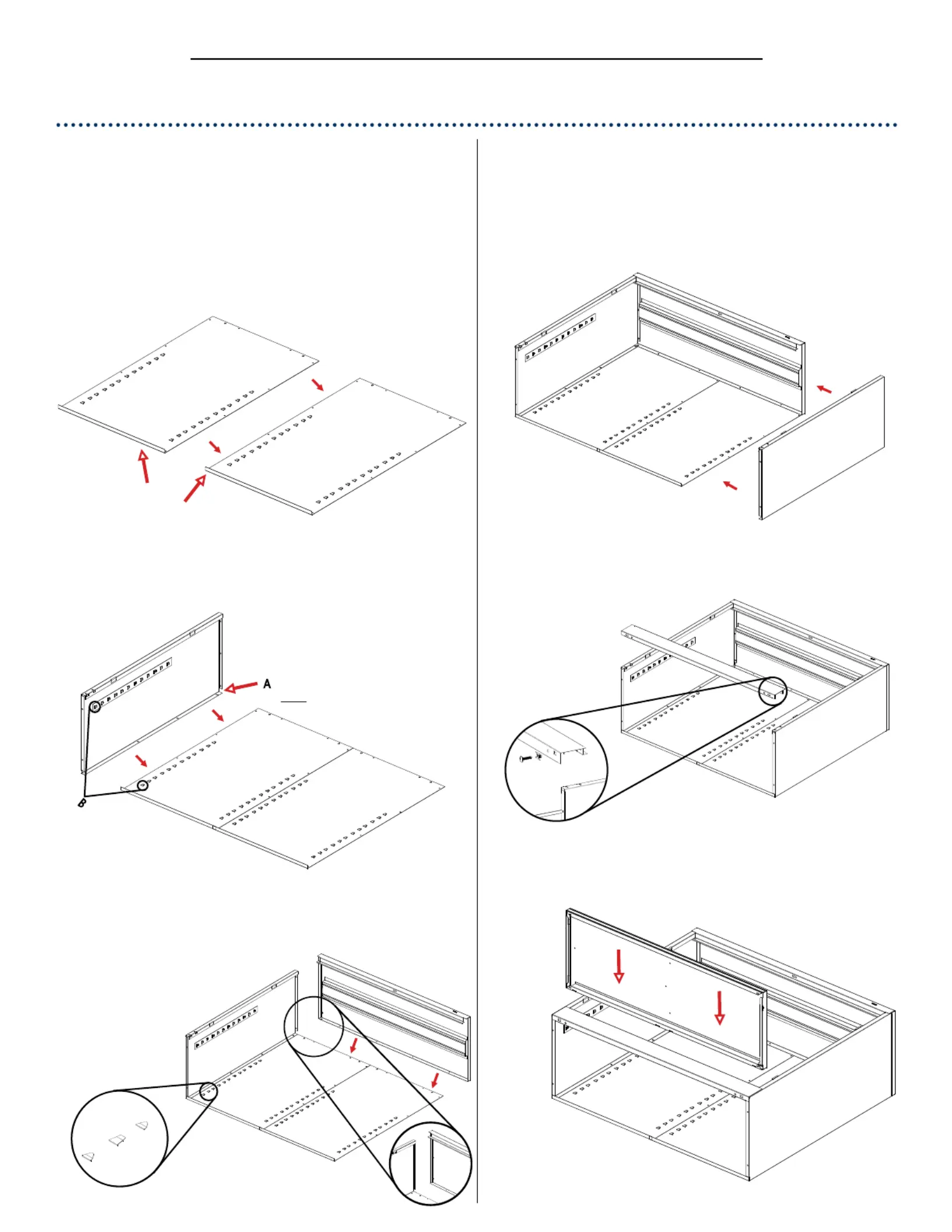

2. Place the back panels (Ref. No. 1) on a smooth surface,
making sure that the anges of both panels are facing up.
Overlap the right panel over the left anel. After aligning the
holes, bolt the two panels tightly together with four bolts
and nuts (Ref. Nos. 17 & 18).
1. The reference numbers used throughout this sheet refer to
the illustration on the back cover. This is to help you to
identify the various parts as they are mentioned.
3. Attach the left side (Ref. No. 2) to the back by placing ange
(A) around the back and bolting tightly together with four
bolts and nuts. Be sure that the lances on all the shelf
adjustment strips (B) point in the same direction.
5. Attach the right side (Ref. No. 3) to the back in the same
manner as you did in step 3, again making sure that
the ange is around the back and that the lances on
the shelf adjustment strips are pointed in the same
direction as those on the back and left side. Push the
side panel up so the studs in the top go through the holes
in the top ange of the side and fasten with three nuts.
6. Attach the sill (Ref. No. 4) to the sides. Place a nut
(Ref. No. 19) loosely on each of the studs and slide
the ends of the sill into the slots on both sides of the
unit. Then, securely tighten the nuts.
4.
Attach the top (Ref. No. 8) to the unit by sliding the outer
ange over the back of the unit and the side ange to the
side panel on the unit. The threaded studs should go
through the holes in the top ange
of the side and fasten with
three nuts. Attach the
back to the top
using four
bolts and nuts.
All lances point UP on
the back and side.
B
Flange faces upward.
Flange goes
under back.
A
Slide ends into the slots on
the bottom of the sides.
7. Place the rear ange of the bottom shelf (Ref. No. 5)
into the bottom lances of the back. The ange with two
holes should face the front, hanging over the sill.
Nuts places loosely
on studs of the sill.
Insert the bottom into the bottom lances.

Produkt Specifikationer

Mærke: Tennsco
Kategori: Skab
Model: J1842A-SND
