Side 1/4
PK-2800918
ASSEMBLY INSTRUCTIONS & PARTS MANUAL
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE
Jumbo Wardrobe Cabinet
Unassembled Model J2478A-N-W
Tennsco LLC.
, Dickson, TN 37056-1888 • (866) 446-8686
GENERAL SAFETY INFORMATION
Some parts may have sharp edges. CARE must be taken when handling various pieces to avoid injury.
For safety, wear a pair of work gloves when assembling or performing any maintenance on the units.
Tennsco warrants goods purchased hereunder to be free of defects in materials and workmanship for a period of one (1) year from the date of shipment, hereunder. This warranty shall not apply in
the event goods are damaged as a result of misuse, abuse, neglect, accident, improper application, modication or repair by persons not authorized by Seller, where goods are damaged during
shipment, or where the date stamps on the goods have been defaced, modied or removed. UNLESS CONSIDERED UNENFORCEABLE OR UNLAWFUL UNDER APPLICABLE LAW:
a. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXCLUDED:
b. BUYERS REMEDY, IF ANY, FOR ANY DEFECTIVE GOODS SHALL BE LIMITED TO A REFUND BY SELLER OR REPLACEMENT OF THE GOODS AT SELLER’S OPTION, AND SHALL IN NO
EVENT INCLUDE DAMAGES OF ANY KIND, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.
NO GOODS ACCEPTED FOR RETURN WITHOUT PRIOR APPROVAL. Seller shall have the right to inspect any goods claimed to be defective at Buyers place of business or require Buyer to return the
goods to Seller for inspection on Seller’s premises. Transportation charges covering returned goods will be borne by Seller only if such goods are proven to be defective, are covered by this warranty
and are returned within the warranty period stated above.
LOAD CAPACITIES PER SHELF LEVEL
48w x 24d
400 lbs.
UNIT SIZE
WEIGHT CAPACITY
EVENLY DISTRIBUTED

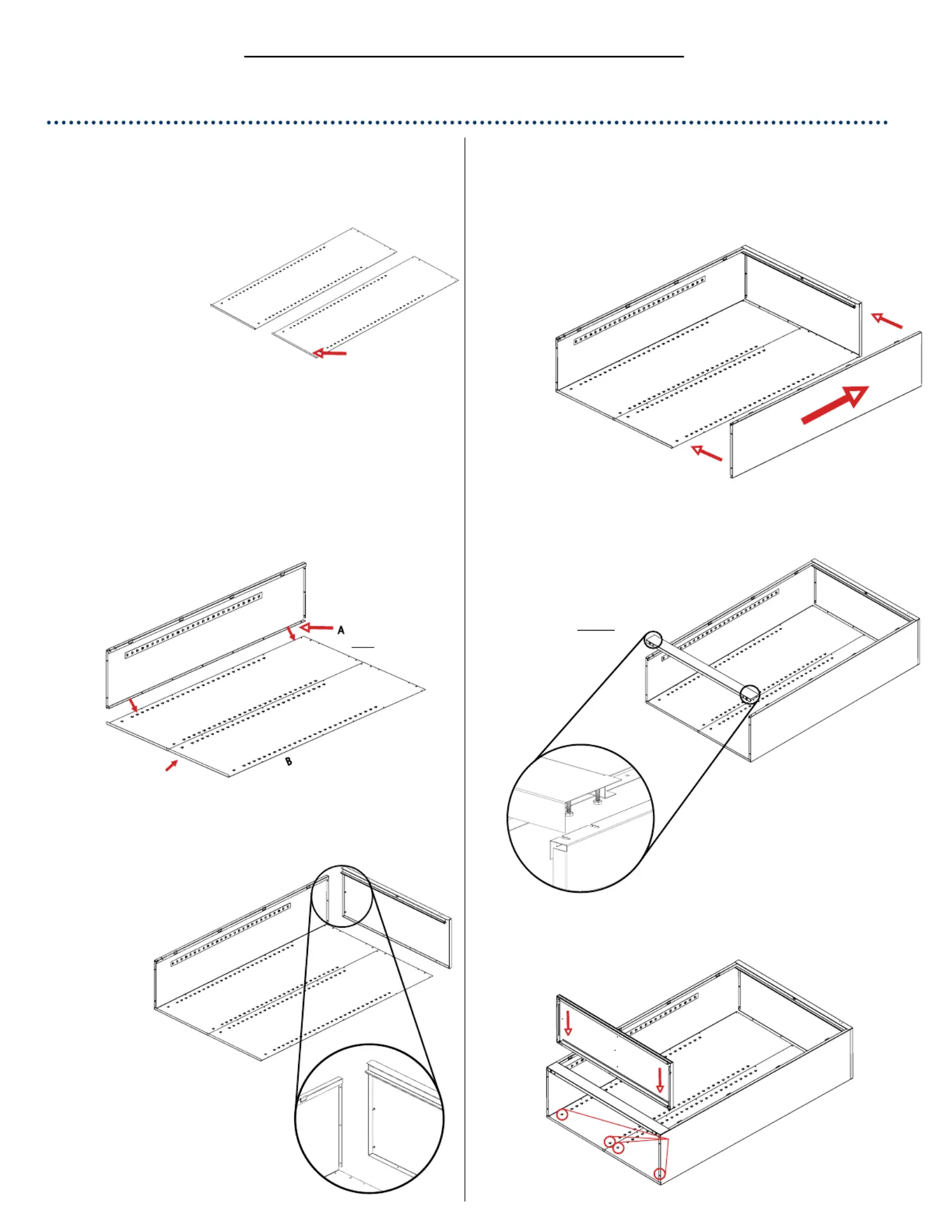

ASSEMBLY OF J2478A-N-W CABINET
Tools Needed: A free
11
/ ” nut driver is included with each Tennsco cabinet. 32
Two people are recommended for assembly. Approximate assembly time: 30-40 minutes.
2. Place the 2-piece cabinet back (Ref.
No. 1) on a protected surface to
prevent scratching the paint.
The ange on the
bottom of the back
should be facing upward.
Bolt the back panels together with
seven bolts and nuts (Ref Nos. 19 & 20).
1. The reference numbers used throughout this sheet refer
to the illustration on the back cover. This is to help you
to identify the various parts as they are mentioned.
3. Attach the left side (Ref. No. 2) to the back by placing
ange (A) around the back and bolting together with
seven bolts and nuts. Be sure that the lances on all
shelf adjustment strips (B) point in the same direction.
5. Attach the right side (Ref. No. 3) to the back in the same manner
as you did in step 3, again, making sure that the ange is
around the back and that the lances on the shelf adjustment
strips are pointed in the same direction as those on the back and
left side. Push the side panel up so the studs in the top go
through the holes in the top
ange of the side and
fasten with three
nuts as in
step 4).
6. Attach the sill (Ref. No. 8) to the sides. Place nuts loosely on each
of the studs and slide the ends of the sill into the slots on both
sides of the unit. Then, securely tighten the nuts.
4. Attach the top (Ref. No. 5) to the unit by sliding the outer
ange over the back of the unit and the side ange on
the top over the side panel. The
threaded studs should go
through the holes in the
top ange of the
side and
fasten with
three nuts.
Attach the
back to the
top using four
bolts and nuts.
7. Place the rear ange of one of the shelves (Ref. No. 4) into the
four bottom lances of the back. The front of the shelf will rest
on the sill.
All lances point UP on
both backs and side.
Flange goes
under back.
Flange faces upward.
Flanges
face upward
Threaded studs go
through the holes
in the flange at the
top of the side.
Slide ends in to the slots
on the bottom of the sides.
Nuts placed loosely
on studs of the sill.
Insert bottom into
bottom lances.
B
A
NOTE: When bolting the unit together, leave
the bolts slightly loose until Step 10, unless
otherwise specified.
