This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment.

Before you start using this product please follow these basic guidelines:

1. Please carefully read through the instruction manual before beginning the installation process.

2. Please remove your graphics card from your motherboard to insure the safest process and in order to prevent any possible damages to your CPU and motherboard.

3. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant Series.

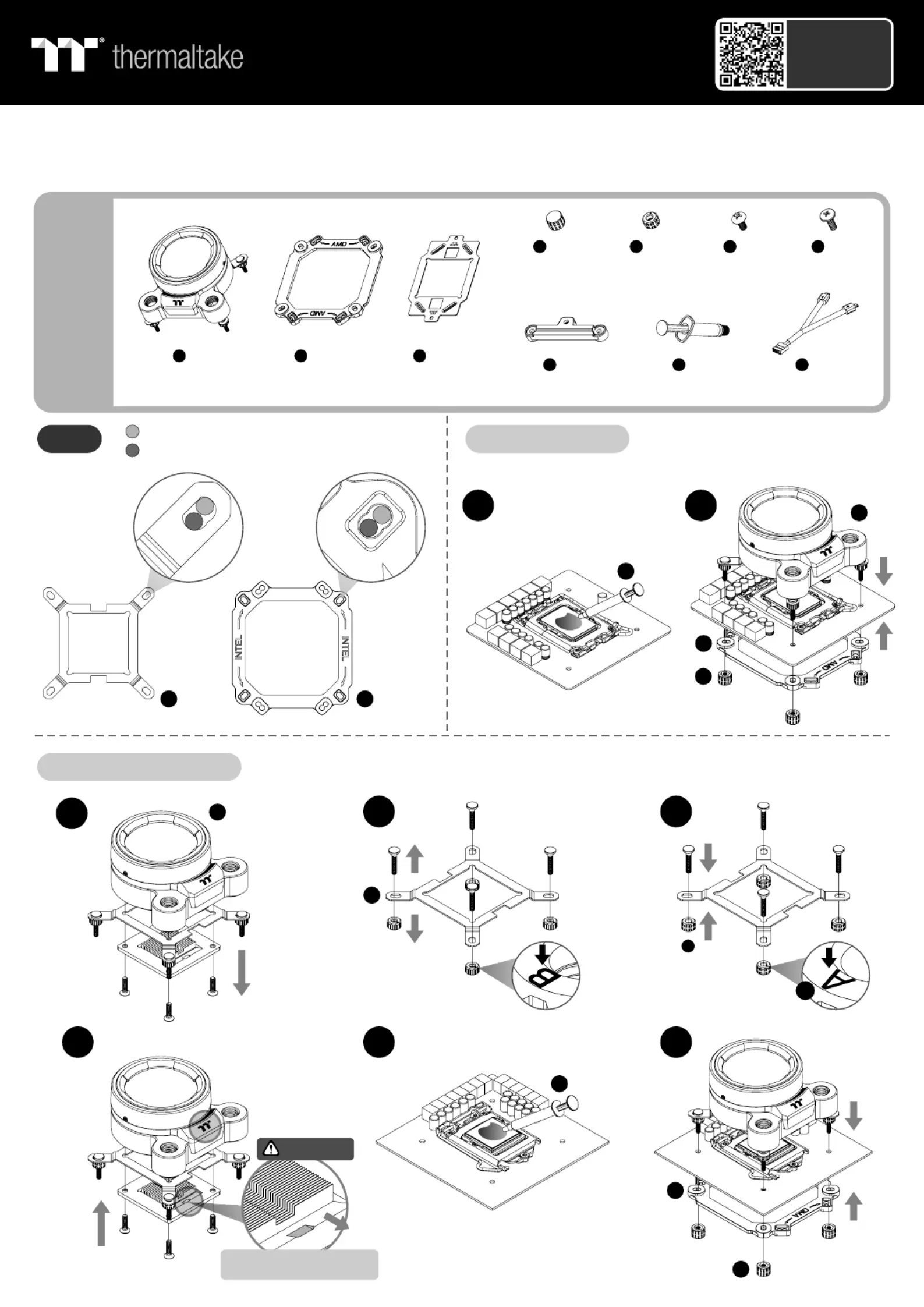

Parts

List

D x 4

Screw Screw

(Black)

Screw

(Silver)

E I J x 4 x 2 x 4

Screw

(For 1200/115X)

A x 1

Water Bloc k

C x 1

Backplate

H x 1

K x 2

AMD Clip

AMD Bracket

G x 1

Controller Cab le

F x 1

Thermal Grease

Intel LGA 1700

LGA1700

LGA1200/1156/1155/1151/1150

Intel

Intel LGA 1200/115X

5 6

Please make sure the grey

mark is toward to the TT Logo.

Pacific MX2 Ultra

NCA UT IO N

Scan Here

Installation Guide

Out : Circle 1 is designed for liquid outlet

In : Circle 2 is designed for liquid inlet/fill

MB SYNC Installation Guide

NCAUTION

To control the LCD display by

TT RGB PLUS Software,

Please connect the water block

and motherboard with cable G.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received, including interference that may cause undesired operation.

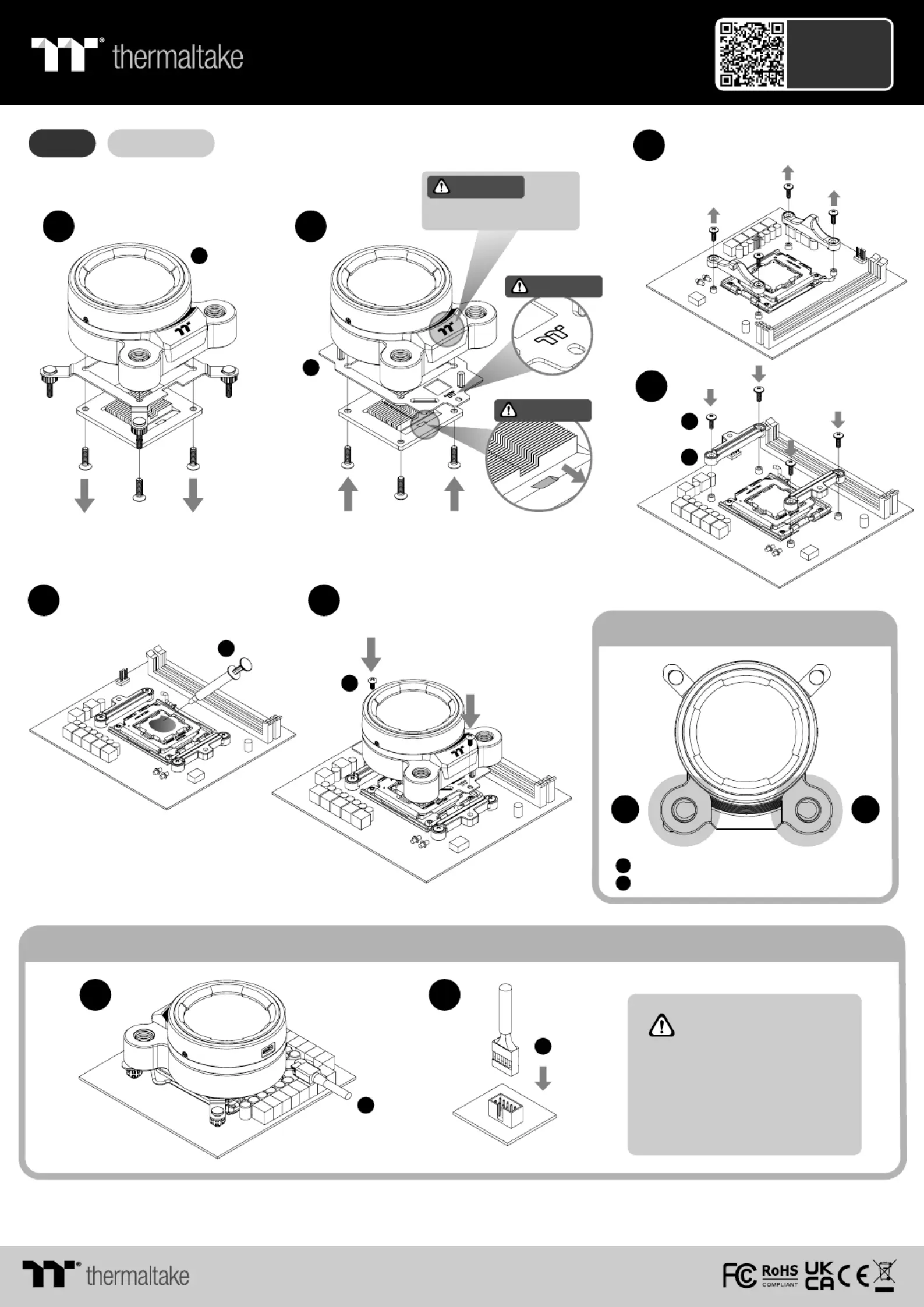

Installation Guide

1 2

Pacific MX2 Ultra

AM4/AM5

AMD

Please remove the stock AMD

mounting bracket, use AMD backplate

Please make sure the grey

mark is toward to the TT Logo.

NCAUTIO N

5 6

Scan Here

Installation Guide

Produkt Specifikationer

Mærke:	Thermaltake
Kategori:	Ikke kategoriseret
Model:	Pacific MX2 Ultra
Type:	Vandblok
Bredde:	92.5 mm
Dybde:	92 mm
Højde:	64 mm
Antal pr. pakke:	1 stk
Velegnet til:	Processor
Produktfarve:	Black, Stainless steel
Strøm:	1.15 W
Understøttede procesorsokler:	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2
Tilslutningsgevind:	1/4 "
