Thermaltake Versa H17 Manual


Læs gratis den danske manual til Thermaltake Versa H17 (11 sider) i kategorien Computerbehuizing. Denne vejledning er vurderet som hjælpsom af 7 personer og har en gennemsnitlig bedømmelse på 4.4 stjerner ud af 4 anmeldelser. Har du et spørgsmål om Thermaltake Versa H17, eller vil du spørge andre brugere om produktet?

Side 1/11
© 2017 Thermaltake Technology Co., Ltd. All Rights Reserved. A-2017.08
All other registered trad emarks belo ng to their respective companies. w ww.thermaltake.com

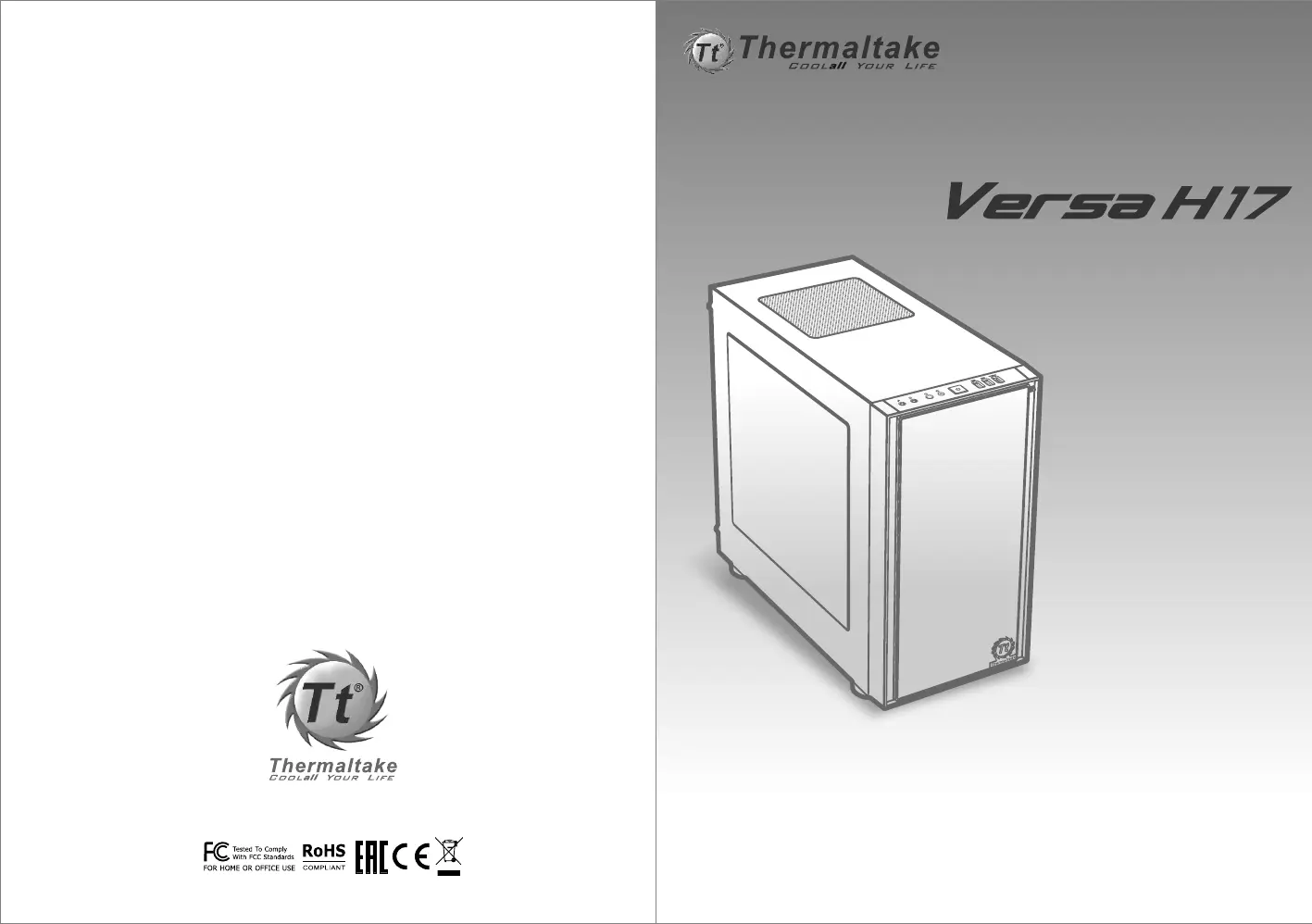

User's Manual
Benutzerhandbuch
Mode demploi
Manual del usuario
Manuale dellutente
Manual do Utilizador
安裝說明書
用戶手冊
ユーザーズマニュアル
Руководство пользователя
kullan c elkitabı ı ı
(EEE Yönetmeli ine Uygundur)ğ
Contents
1 2
Chapter 1. Product Introduction
Chapter 2. Installation Guide
2.1
2.2
2.3
2.4
2.5
2.6
2.7
1.1
1.2
1.3
02
02
03
05
06
07
08
10
11
11
Spe cif ica tion
Accessory
Warnin g and Notice
Sid e Panel D isasse mbly
PSU Install ati on
Motherboard Installa tion
3.5 " & 2.5" HDD In stallation
Chapter 3. Leads Installation
Cas e LED Conne cti on
USB 2.0 Con nection
USB 3.0 Con nection
Audi o Con nection
3.1
3.2
3.3
3.4
12
12
12
12
Chapter 4. Other
4.1 18
Thermaltake Power Supply Series (Optional)
*Picture for reference only
*Information in the user manual is subject to change without notice
PCI Slot U sage
Radia tor Inst all ati on
Air Cool ing Install ati on
Radiato r Support Front: 1 x 240mm , 1 x 280mm
Rear: 1 x 120mm
Micro Case
Cas e Type
SPCC
Material
Clearanc e
CPU cooler height limita tion: 155mm
VGA length limitation: 350mm(Without Front Fan)
PSU length limitation: 220mm
Drive Bays
-Acc essible
-Hidden
-
2 x 2.5" ; 2 x 3.5”
Fan Support
Front: 3 x 120mm , 2 x 140mm
Top: 1 x 120mm , 1 x 140mm
Rear: 1 x 120mm
Dimension (H*W*D) 390 x 205 x 380mm (15.4 x 8.1 x 15 inch)
Side Panel
Versa H17
Model Versa H17(Window)
No Window Transparent Window
Rear (exhaust) :
120 x 120 x 25 mm fan (1000rpm, 16dBA)
Cooling System
Stand off 6 32 x 6mm- # - 2 Motherboard
Screw M3 x 5mm 12 Motherboard
Screw 6 32 x 6mm # - 4Power
Screw M3 x 5mm 10 2 5 HDD. "
Screw 6 32 x 6mm # - 10 3 5 HDD. "
Screw T5 x 12mm 2Case Fan
HDD SSD Rubber/ 20 Motherboard
CableTie 5 Cable Management
Buzzer 1 Motherboard Alarm
Figure Parts Name Q ty'Used for


Produkt Specifikationer

Mærke: Thermaltake
Kategori: Computerbehuizing
Model: Versa H17

Har du brug for hjælp?

Hvis du har brug for hjælp til Thermaltake Versa H17 stil et spørgsmål nedenfor, og andre brugere vil svare dig
