Please follow the instructions in this manual to obtain the optimum results from this unit.

We also recommend that you keep this manual handy for future reference.

RS-150

RS-160

RS-170

RS-180

SECURITY SUBSTATION

INSTRUCTION MANUAL

1. GENERAL DESCRIPTION

TOA's RS-150, RS-160, RS-170, and RS-180 are Security Substations designed to be used with TOA's VS-900

Voice Security System.

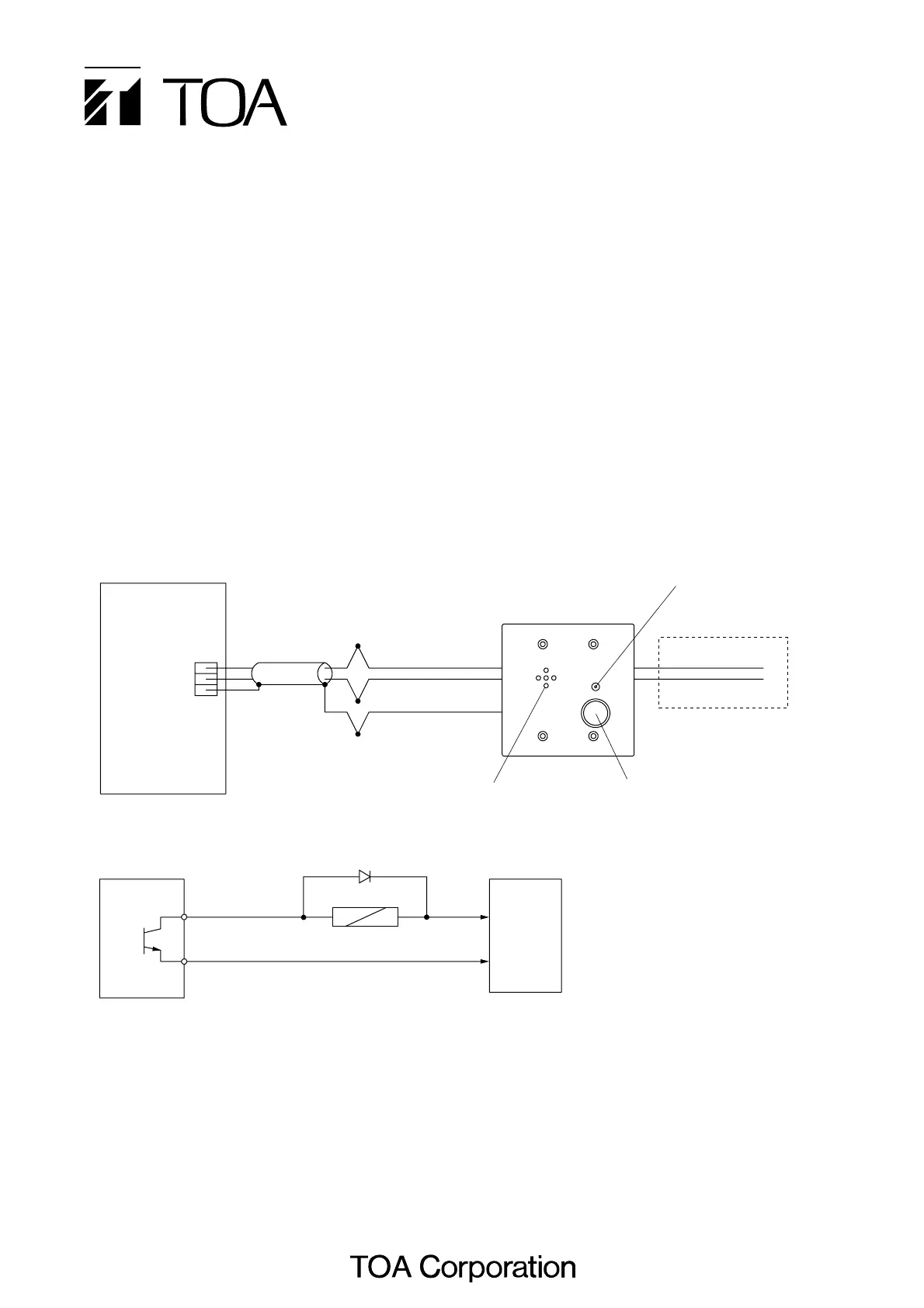

2. CONNECTION

Connection to the VS-900RS (for 25 V line)

(VS-900RS)

Orange

Brown

Black

Speaker

Call button

Call lamp (RS-180 only)

Blue (HOT)

White (COM)

Open collector output

(RS-180 only)

RS-150/-160/-170/-180

External

power supply

relay

diode

+24 VDC

GND

Blue (HOT)

White (COM)

RS-180

3. OPERATION

Pressing the call button calls the control station. The call lamp then flashes until the conversation begins, and

it remains lit during the conversation (RS-180 only). The open collector output is activated immediately after

pushing call buttons and remains active until call is cancelled (RS-180 only).

Note: RS-180 open collector output is 30 mA / 24 VDC (max.).

Connection to the external relay (RS-180 only)

133-06-228-9B

4. MOUNTING

Mount the substation to an electrical box mounted to the wall.

Model No. RS-150 RS-160 RS-170 RS-180

Rated Input 1 W

Rated Impedance 625 Ω (1 W, 25 V)

Output Sound Pressure Level

82 dB

Frequency Response 300 to 4,000 Hz (minimum 72 dB)

Internal Speaker 4 cm dynamic type

Sensitivity as Microphone –40 dB ± 3 dB (0 dB = 1 V / Pa)

Ambient Temperature –10°C to +50°C

(Temperature range not to freeze the speaker and switch)

Finish Stainless steel

Weight 410 g 540 g 540 g 570 g

Weather-Resistant Coating

None None

Printed circuit board Printed circuit board

Call Button Resin-made push Metal push button Metal push button Metal push button

button (red top ø20 mm)

Call Lamp None None None Provided

Open Collector Output None None None 24 VDC, 30 mA

Accessories Oval head screw (No. 6-32 UNC) x 18 ....... 4

RS-150/-160/-170/-180

Oval head screw (No.6-32UNC x 18)

2-gang electrical box (deep)

and adapter ring

120

52.5

43.5 (RS-150)

2 (RS-150)

18.2

83.5

120

Unit: mm

Note: The design and specifications are subject to change without notice for improvement.

5. SPECIFICATIONS

Dimensional diagram

Produkt Specifikationer

Mærke:	TOA
Kategori:	Samtaleanlæg
Model:	RS-160
Bredde:	120 mm
Dybde:	57.5 mm
Højde:	120 mm
Vægt:	540 g
Antal pr. pakke:	1 stk
Produktfarve:	Sølv, rustfrit stål
Produkttype:	Understation
Driftstemperatur (T-T):	-10 - 50 °C
Materiale:	Metal
Monteringstype:	Væg
Mærke kompatibilitet:	TOA
Række:	0.5 km (546 yd)/φ0.5 mm (AWG24), 0.8 km (874 yd)/φ0.65 mm (AWG22), 1.3 km (1421 yd)/φ0.9 mm (AWG19)
