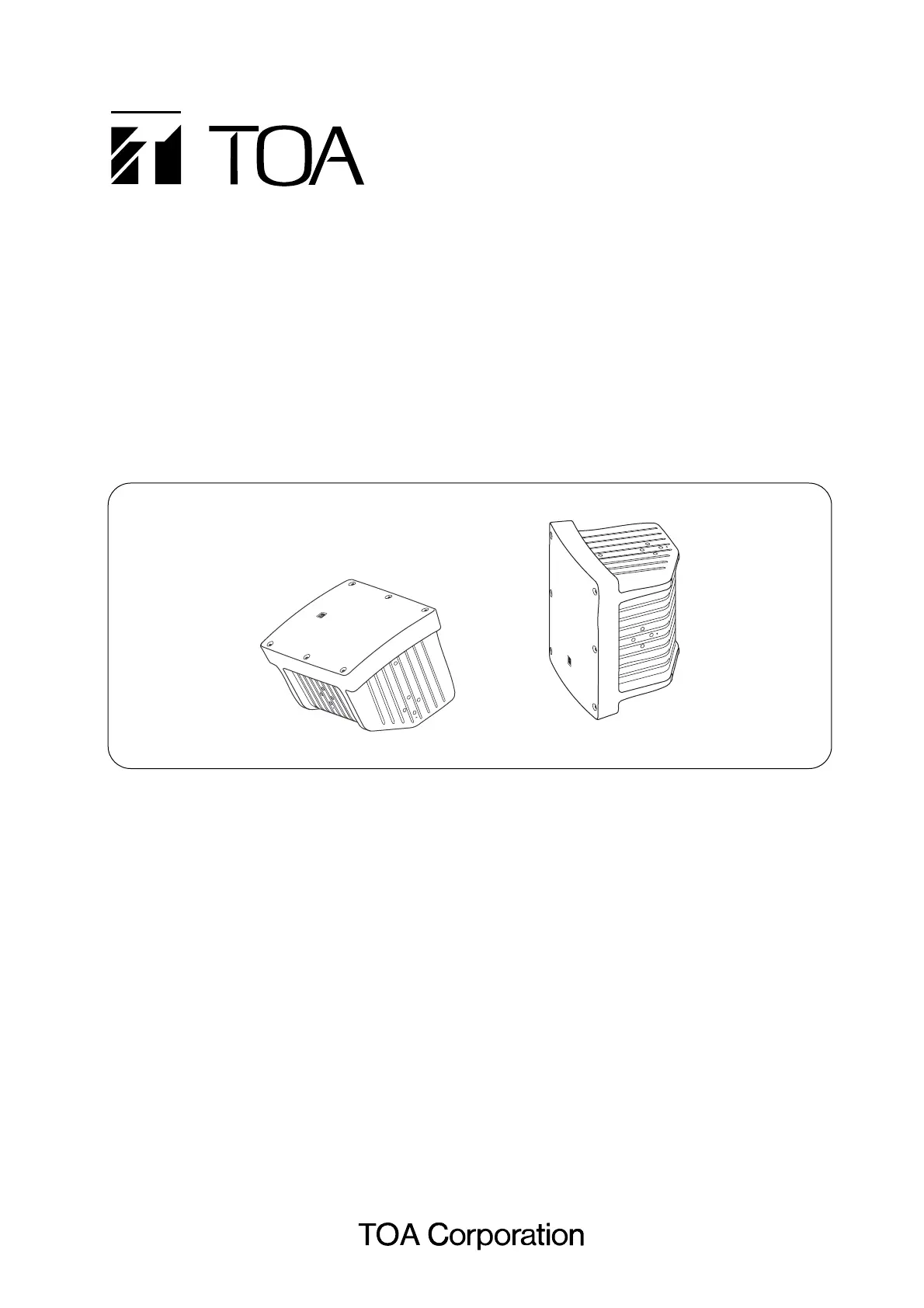

OPERATING INSTRUCTIONS

SPEAKER SYSTEMS

1. SAFETY PRECAUTIONS ........................... 2

2. GENERAL DESCRIPTION ......................... 3

3. FEATURES ................................................. 3

4. DIMENSIONAL DIAGRAM ......................... 3

5. INPUT TERMINAL SECTION ..................... 4

6. ABOUT THE INPUT OVERLOAD

PROTECTION CIRCUIT ............................. 4

7. INSTALLATION .......................................... 4

8. EQUALIZING BY THE

DIGITAL SIGNAL PROCESSOR ............... 7

9. SPECIFICATIONS ...................................... 8

Accessories ................................................. 8

Optional products ........................................ 8

Thank you for purchasing TOA's Speaker System.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

TABLE OF CONTENTS

HS-120B

HS-120W

HS-150B

HS-150W

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe

operation.

• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or

cautions regarding safety.

• After reading, keep this manual handy for future reference.

Safety Symbol and Message Conventions

Safety symbols and messages described below are used in this manual to prevent bodily injury and property

damage which could result from mishandling. Before operating your product, read this manual first and

understand the safety symbols and messages so you are thoroughly aware of the potential safety hazards.

Indicates a potentially hazardous situation which, if mishandled, could

result in death or serious personal injury.

WARNING

Indicates a potentially hazardous situation which, if mishandled, could

result in moderate or minor personal injury, and/or property damage.

CAUTION

When Installing the Unit

• Avoid installing or mounting the unit in unstable locations, such as on a rickety table or a slanted surface.

Doing so may result in the unit falling down and causing personal injury and/or property damage.

• Install the unit only in a location that can structurally support the weight of the unit and the mounting bracket.

Doing otherwise may result in the unit falling down and causing personal injury and/or property damage.

• Since the unit is designed for in-door use, do not install it outdoors. If installed outdoors, the aging of parts

causes the unit to fall off, resulting in personal injury. Also, when it gets wet with rain, there is a danger of

electric shock.

• Owing to the unit's size and weight, be sure that at least two persons are available to install the unit. Failure

to do so could result in personal injury.

• Do not use other methods than specified to mount the bracket. Extreme force is applied to the unit and the

unit could fall off, possibly resulting in personal injuries.

• Use screws that are appropriate for the ceiling's or wall's structure and composition. Failure to do so may

cause the unit to fall, resulting in personal injury.

• Ensure that all screws are securely tightened. If they are not tightened or firmly secured after installation, the

unit could fall down, possibly resulting in personal injury.

• Use the specified mounting bracket in combination. Doing otherwise may cause the unit or component to fall

off, resulting in personal injury.

• Do not mount the unit in locations exposed to constant vibration. The mounting bracket can be damaged by

excessive vibration, potentially causing the unit to fall, which could result in personal injury.

When Installing the Unit

• When unpacking or installing the unit, be sure to handle it with two or more persons. Falling or dropping the

unit may cause personal injury.

• Avoid touching the unit's sharp metal edge to prevent injury.

• To avoid electric shocks, be sure to switch off the amplifier's power when connecting speakers.

Produkt Specifikationer

Mærke:	TOA
Kategori:	Ikke kategoriseret
Model:	HS-120W
Bredde:	361 mm
Dybde:	320 mm
Højde:	448 mm
Vægt:	8500 g
Produktfarve:	Hvid
Bluetooth:	Ingen
Udgangseffekt (RMS):	300 W
Driftstemperatur (T-T):	-10 - 50 °C
Husmateriale:	Polypropylen (PP)
Anbefalet brug:	Universel
Frekvensområde:	80 - 20000 Hz
Impedens:	9 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Højttaler, type:	2-vejs
Lyd-output kanaler:	- kanaler
Højttaler, placering:	Ceiling-mountable, Wall-mountable
Diskanthøjttaler:	Ja
Antal drivere til diskant:	6
Sensitivitet:	97 dB
Delefrekvens:	3000 Hz
Woofer diameter:	300 mm
