INSTALLATION MANUAL

ANGLE ADJUSTMENT BRACKETS

HY-60DB, HY-60DW, HY-60DB-WP, HY-60DW-WP

Thank you for purchasing TOA’s Angle Adjustment Bracket.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. SAFETY PRECAUTIONS

• Beforeinstallationoruse,besuretocarefullyread

all the instructions in this section for correct and

safe operation.

• Besuretofollowalltheprecautionaryinstructions

in this section, which contain important warnings

and/or cautions regarding safety.

• After reading, keep this manual handy for future

reference.

• (HY-60DBandHY-60DWonly)

Since the bracket is designed for indoor use, do not

install it outdoors. If installed outdoors, the aging

of parts causes the speaker to fall off, resulting in

personal injury. Also, when it gets wet with rain,

there is a danger of electric shock.

• Donotuseothermethodsthanspeciedtomount

the bracket. Extreme force is applied to the speaker

and it could fall off, possibly resulting in personal

injuries.

• Tighten each nut and bolt securely. Ensure that

the bracket has no loose joints after installation

to prevent accidents that could result in personal

injury.

• UsethespeciedSpeakerSystemincombination.

Doing otherwise may cause the speaker or

component to fall off, resulting in personal injury.

• Avoidinstallingthespeakerinlocationsclosetothe

seashore or in indoor swimming facilities that are

not well ventilated. In such locations, the bracket

may be vulnerable to corrosion, eventually allowing

the speaker to fall resulting in personal injury.

• Avoid touching the bracket’s sharp metal edge to

prevent injury.

• Havethebracketcheckedperiodicallybytheshop

from where it was purchased. Failure to do so may

result in corrosion or damage to the bracket that

could cause the speaker to fall, possibly causing

personal injury.

Indicates a potentially hazardous situation which,

if mishandled, could result in death or serious

personal injury.

WARNING

Indicates a potentially hazardous situation which,

if mishandled, could result in moderate or minor

personal injury, and/or property damage.

CAUTION

2. GENERAL DESCRIPTION

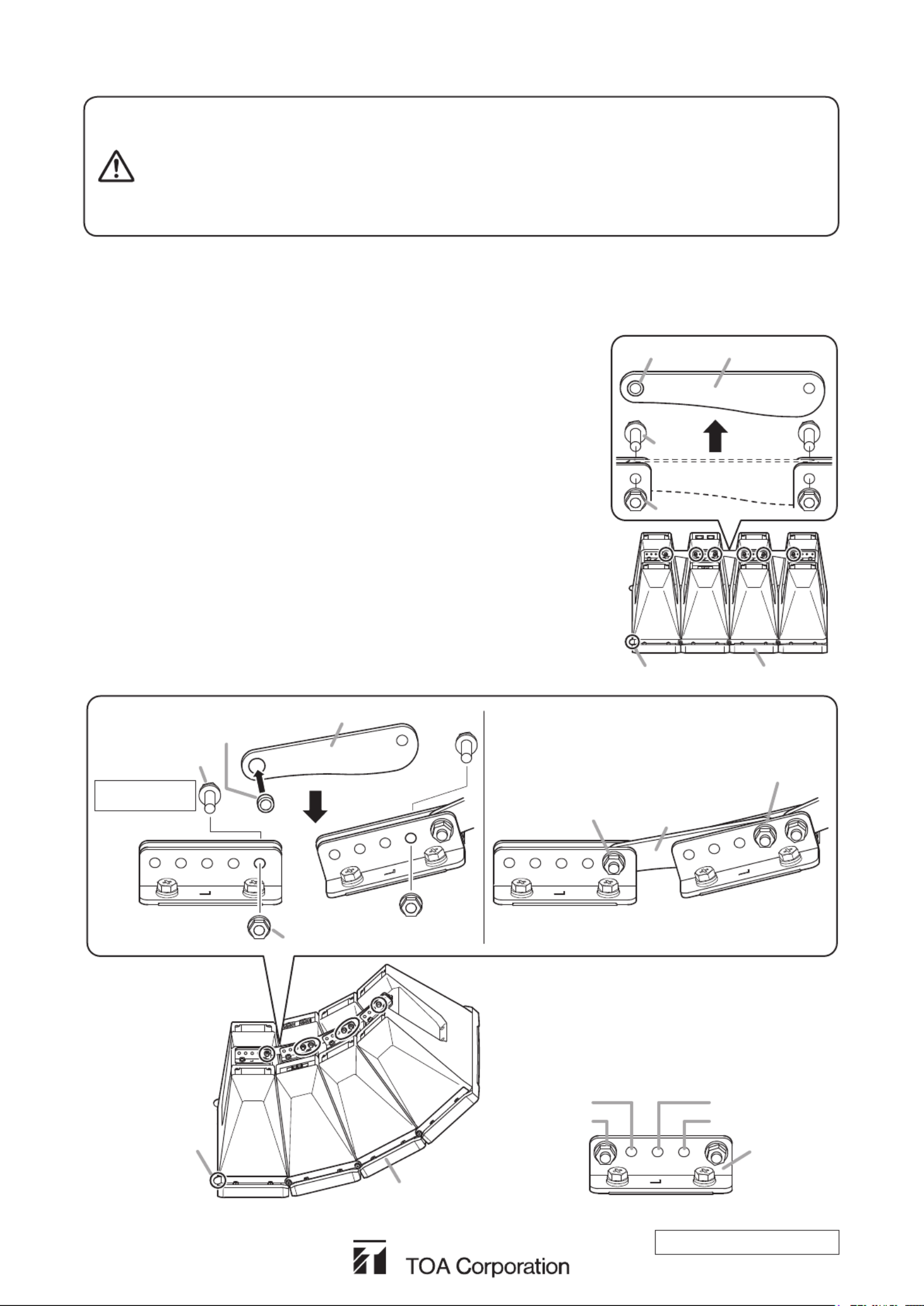

TOA’sHY-60DSeriesBracketsareusedtochangethedirectivityanglemode

ofHX-7SeriesSpeaker System to60°mode.Three piecesoftheHY-60D

Seriesarerequiredtoobtain60°modeofdirectivityangle.

Both HY-60DB and HY-60DW brackets are designed for indoor use only.

The HY-60DB-WPand HY-60DW-WPbrackets can be used outdoors, but

only under eaves or in other locations not directly exposed to rain and the

elements.

Usethesebracketsincombinationwiththespeakersystemsshownatright.

3. SPECIFICATIONS

Model No. HY-60DB HY-60DW HY-60D-WP HY-60W-WP

Finish Steel plate, black,

semi-gloss, paint

Steel plate, white,

semi-gloss, paint

Stainless plate, black,

semi-gloss, paint

Stainless plate, white,

semi-gloss, paint

Dimensions 102.2x26.2mm(4.02"x1.03"),t=4.5mm(0.18"),withø9.4mm(0.37")andø6.4mm(0.25")holes

Weight 70g(0.15lb)

Note: Thedesignandspecicationsaresubjecttochangewithoutnoticeforimprovement.

Speaker System Angle Adjustment Bracket

HX-7B HY-60DB

HX-7W HY-60DW

HX-7B-WP HY-60DB-WP

HX-7W-WP HY-60DW-WP
