HX-5 series

Front grill

Front bracket A

(component of HY-WM2 series)

Front bracket B

(component of HY-WM2 series)

Front bracket B

Front bracket B mounting position

Front end bar bracket

Bracket fixed into the speaker

Front bracket A

Front bracket A mounting position

Bracket fixed into the speaker

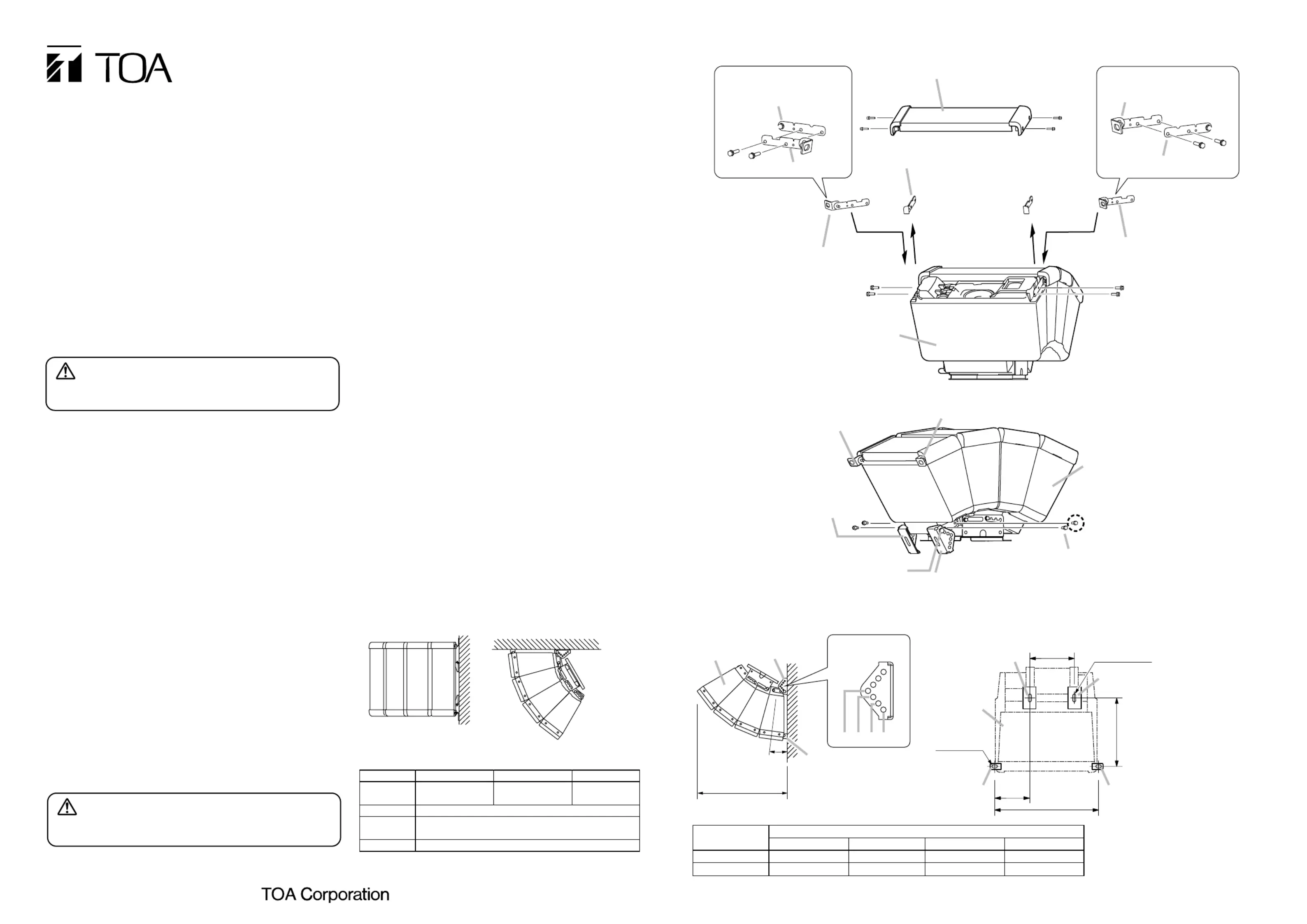

INSTALLATION MANUAL

SPEAKER MOUNTING BRACKETS

HY-WM2B, HY-WM2W, HY-WM2WP

TOA's HY-WM2 series are used exclusively to mount the HX-5

series speaker system closely to a wall or ceiling.

The brackets help to achieve clearer sound reproduction by

minimizing phase interference generated by sound waves

reflecting from walls or ceilings.

Both the HY-WM2B and HY-WM2W are designed for indoor use,

while the HY-WM2WP is designed for outdoor use.

1. SAFETY PRECAUTIONS

•Before installation or use, be sure to carefully read all the

instructions in this section for correct and safe operation.

•Be sure to follow all the precautionary instructions in this section,

which contain important warnings and/or cautions regarding

safety.

•After reading, keep this manual handy for future reference.

6. SPECIFICATIONS

Note: The design and specifications are subject to change without

notice for improvement.

• Install the unit only in a location that can structurally support the

weight of the unit and the speaker. Doing otherwise may result in

the speaker falling down and causing personal injury and/or

property damage.

• (HY-WM2B and HY-WM2W only)

Since the unit is designed for indoor use, do not install it

outdoors. If installed outdoors, the aging of parts causes the unit

to fall off, resulting in personal injury.

• Owing to the speaker's size and weight, be sure that at least two

persons are available to install the speaker. Failure to do so

could result in personal injury.

• Do not use other methods than specified to mount the unit.

Extreme force is applied to the unit and the speaker could fall off,

possibly resulting in personal injuries.

• Use nuts and bolts that are appropriate for the wall's or ceiling's

structure and composition. Failure to do so may cause the

speaker to fall, resulting in material damage and possible

personal injury.

• Tighten each nut and bolt securely. Ensure that the unit has no

loose joints after installation to prevent accidents that could

result in personal injury.

• Use the specified speaker in combination. Doing otherwise may

cause the speaker to fall off, resulting in personal injury.

• Do not mount the unit in locations exposed to constant vibration.

The unit can be damaged by excessive vibration, potentially

causing the speaker to fall, which could result in personal injury.

• Avoid installing the speaker in locations close to the seashore or

in indoor swimming facilities that are not well ventilated. In such

locations the unit may be vulnerable to corrosion, eventually

allowing the speaker to fall resulting in personal injury.

Indicates a potentially hazardous situation which, if mishandled,

could result in death or serious personal injury.

WARNING

Indicates a potentially hazardous situation which, if mishandled, could

result in moderate or minor personal injury, and/or property damage.

CAUTION

•Avoid touching the unit's sharp metal edge to prevent injury.

Only the HY-WM2WP can be installed outdoors.

•Only the HX-5B-WP and HX-5W-WP speakers can be

installed outdoors.

•Install the speaker so that all speaker modules face

downward from the horizontal axis.

Doing otherwise could adversely affect the speaker's weather

resistance and possibly lead to malfunction or failure.

2. PRECAUTIONS WHEN INSTALLING THE

HY-WM2WP

[Mounting the front brackets]

Step 1. Remove the front grill of the speaker module to be

mounted to a wall or ceiling.

Use the supplied hex head wrench to remove the

bolts.

Step 2. Remove the front end bar brackets, and attach the

front brackets instead.

Note: There are 2 different types of front brackets A

and B. Attach them correctly as illustrated.

Step 3. Reattach the removed front grill to the speaker

module, and retighten the bolts, making sure that the

edges of the grilles fit into their receptacle slots.

[Mounting the rear brackets]

Step 4. Fix the rear brackets A and B to the HX-5 series using

the bolts.

Before mounting the rear brackets, remove the

speaker's original bolt only at one place as indicated in

the diagram.

To fix the brackets, use all the 4 supplied mounting

bolts without using the removed bolt.

Step 5. Change the position of the angle adjustment bolts (at

the brackets A and B) to set the desired angle

between the wall or ceiling and the HX-5 series, then

fix the bolts in this position.

Step 6. Install the HX-5 series to a wall or ceiling

Note: Anchor bolts, nuts and washers required for

mounting are not supplied with the bracket.

3. INSTALLATION

6. MOUNTING DIMENSIONS

[Mounting the rear brackets (speaker rear side)]

Hexagon head bolts M8 x 20

with washer (accessory)

HX-5 series

Front bracket A

(component of HY-WM2 series)

Front bracket B (component of HY-WM2 series)

Rear bracket B (component of HY-WM2 series)

Rear bracket A

(component of HY-WM2 series)

Angle adjustment bolt

Note

Mount the supplied bolt after

removing the speaker's original bolt.

Printed in Indonesia

533-06-124-60

[Mounting the front brackets (speaker front side)]

4. FINISHED ASSEMBLING DIAGRAM

Wall

Ceiling

[Horizontal mounting] [Vertical mounting]

HX-5 series

Wall

Max. 498 (19

/ ) 64

Directivity angle X

(See the table below.)

Rear bracket

(See the table below.)

Front bracket

Angle adjustment

bolt position

Note: The angle X and the distance Y vary depending on the bolt position.

Angle adjustment bolt position

a b c d

245 mm (9

/ ) 255 mm (10 64"

/ ) 265 mm (10 32"

/ ) 275 mm (10 64"

/ )16"

1.875 3.75 5.625 7.5° ° ° °Directivity angle X

Distance Y

142

/ )32

418

(16

/ )64

178

/ )64

Rear bracket B

12 x 32

(

/ x 1 32

/ )64

12 x 22

(

/ x 32

/ )64

Rear bracket A

Front bracket A

Front bracket B

HX-5 series

a b c d

Unit: mm (inches)

Model No. HY-WM2WPHY-WM2B HY-WM2W

Finish Steel plate, brack, Stainless steel

(SUS304)semi-gloss, paint

Steel plate, white,

semi-gloss, paint

Weight

Product

Accessory

600 g

Front bracket A/B* ... 1 each, Rear bracket A/B* ... 1 each

Hexagon head bolt M6 x 20 with washer ...... 4

* Brackets A and B are symmetrical to each other. Composition
