Indicates a potentially hazardous

situation which, if mishandled, could result in death or

serious personal injury.

Indicates a potentially hazardous

situation which, if mishandled, could result in moderate or

minor personal injury, and/or property damage.

Please follow the instructions in this manual to obtain the optimum results from this unit.

We also recommend that you keep this manual handy for future reference.

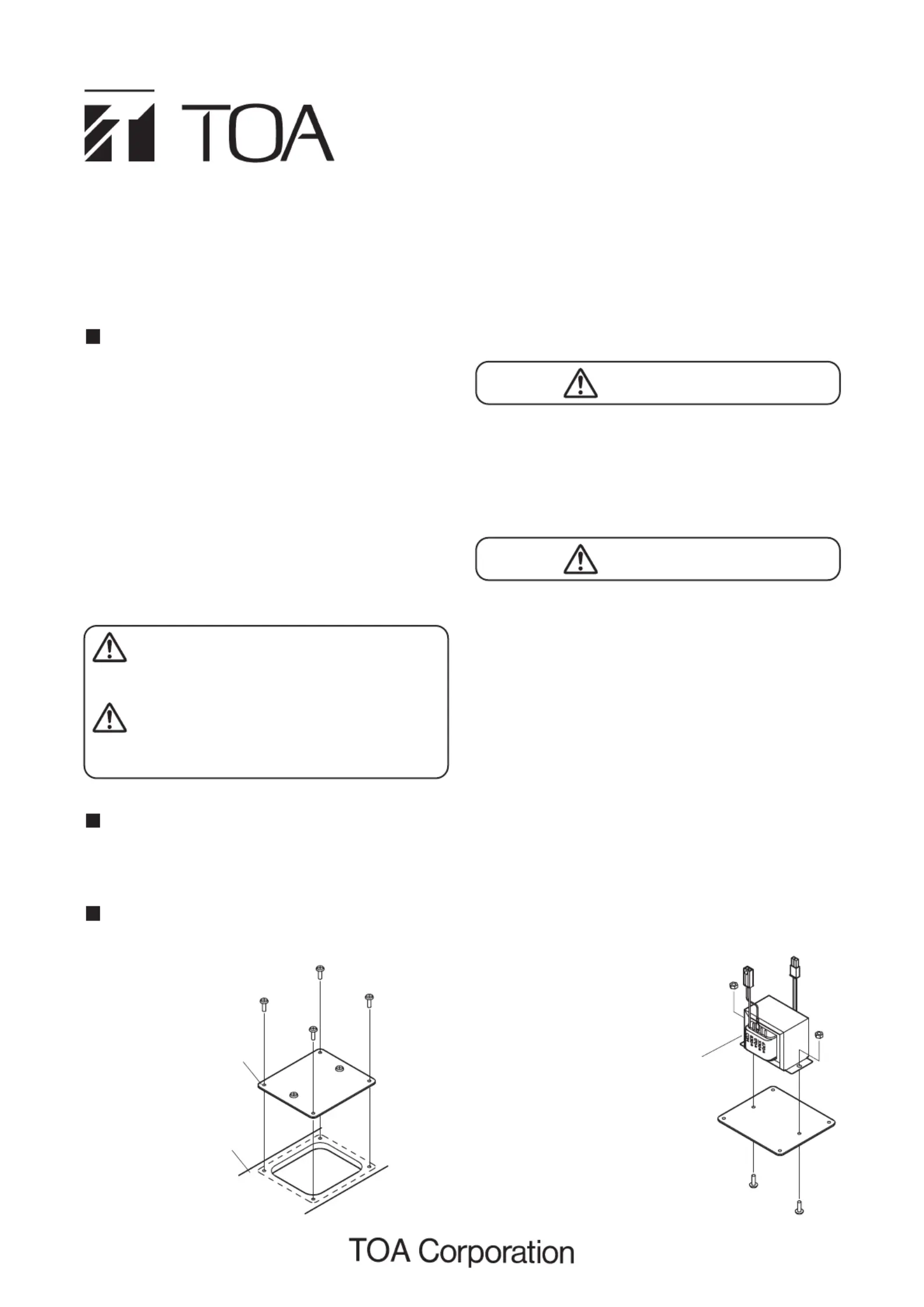

MT-S0601MATCHING TRANSFORMER

INSTRUCTION MANUAL

SAFETY PRECAUTIONS

GENERAL DESCRIPTION

INSTALLING THE MATCHING TRANSFORMER

•Be sure to read the instructions in this section carefully

before use.

•Make sure to observe the instructions in this manual as

the conventions of safety symbols and messages

regarded as very important precautions are included.

•We also recommend you keep this instruction manual

handy for future reference.

Safety Symbol and Message Conventions

Safety symbols and messages described below are used

in this manual to prevent bodily injury and property

damage which could result from mishandling. Before

operating your product, read this manual first so you are

thoroughly aware of the potential safety hazards as well as

understand the safety symbols and messages.

•Be sure to use this matching transformer only for the

specified speakers. If any other speaker is used, the

transformer could detach and fall, resulting in personal

injuries. Also, the transformer could generate heat,

causing a fire.

•When installing the matching transformer, consult the

shop from where it was purchased because installation

requires specialized skills and professional experience. If

the transformer should fall, it could result in personal

injuries.

•Avoid using an 83 tap when the speaker line of highΩ

impedance is a 100 V line. Otherwise, heat builds up in

the matching transformer, possibly causing a fire.

Blank Panel

Speaker

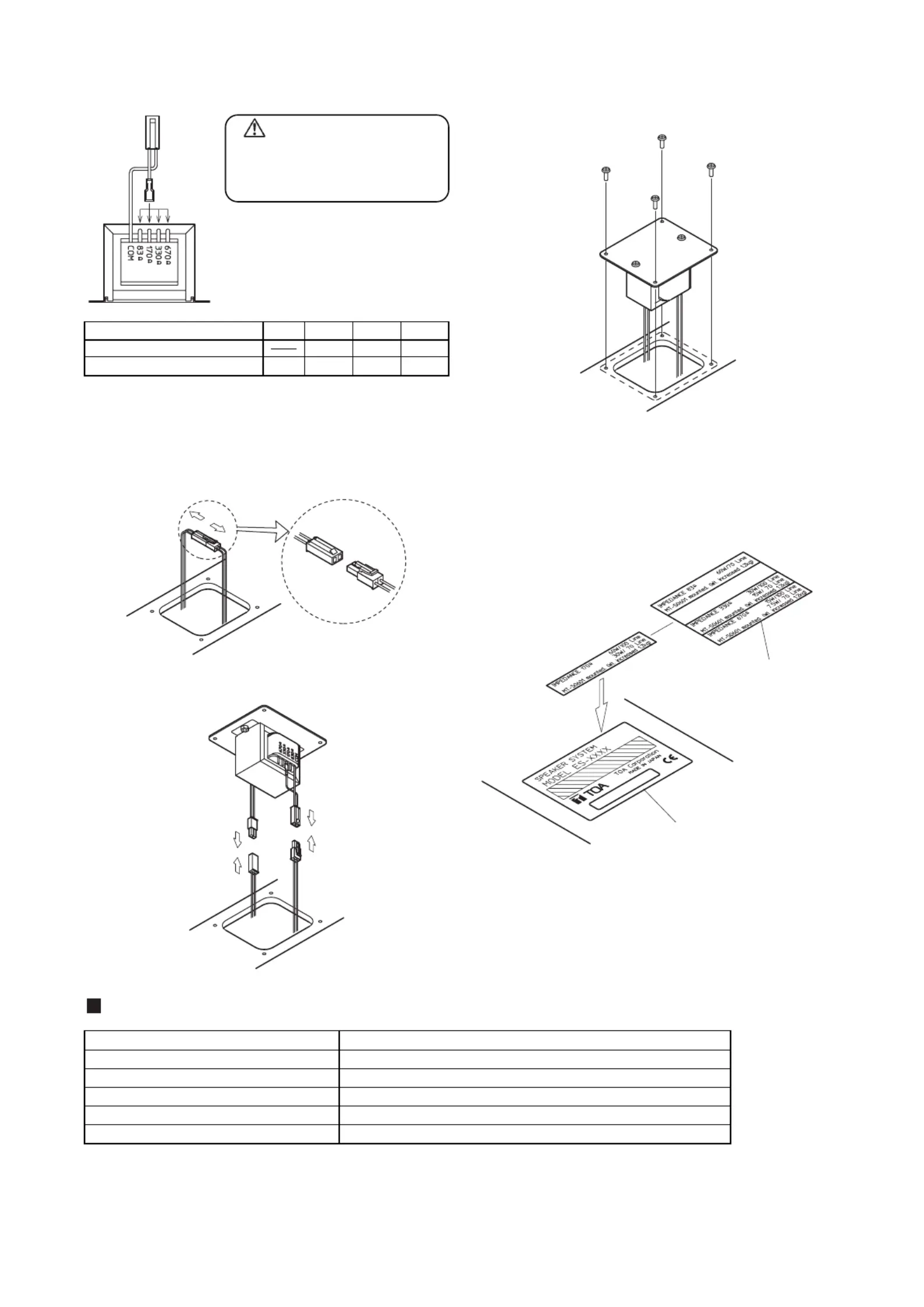

1. Remove four screws holding the blank panel to the

speaker and remove the panel.

2. Mount the matching transformer to

the back side of the blank panel.

(Use screws and nuts attached to

the blank panel.)

MT-S0601

WARNING

CAUTION

The MT-S0601 matching transformer is designed to be installed in the speaker and used to convert the low-impedance

speaker into the high-impedance version.

CAUTION

3. Connect a lead wire to the desired impedance tap.

Red White

4. Disconnect the lead wire connectors to change wiring so

as to permit the connection of the matching transformer.

• Take the lead wire out of the speaker to disconnect the

connection.

• Connect two lead wires to the transformer.

5. Replace the blank panel/transformer assembly in the

speaker.

6. Separate the corresponding impedance indication label

from the impedance seal supplied with the transformer

and attach it to the impedance indication area in the

speaker name plate.

Note: The design and specifications are subject to change without notice for improvement.

Rated Input 60 W

Primary Side Terminals (100 V Line) 170 Ω(60 W), 330 (15 W)Ω(30 W), 670 Ω

Primary Side Terminals (70 V Line) 83 Ω(60 W), 170 (30 W), 330 (15 W), 670 (7.5 W)Ω Ω Ω

Secondary Side Terminals 8 Ω

Dimensions 91 (W) x 59 (H) x 73 (D) mm (lead wire excluded)

Weight Approximately 1.2 kg

• Accessories

Impedance indication seal .............................. 1

Impedance Indication

Label (Accessory)

Speaker Name Plate

Avoid using an 83 Ωtap when

the speaker line of high

impedance is a 100 V line.

[Note]

Select the tap before installing the

transformer in the speaker. (Note

that the tap cannot be changed

from the outside once the

transformer has been installed.)

Tap 83 Ω170 330 670 Ω Ω Ω

High impedance 100 V line 60 W 30 W 15 W

High impedance 70 V line 60 W 30 W 15 W 7.5 W

SPECIFICATIONS

Produkt Specifikationer

Mærke:	TOA
Kategori:	Ikke kategoriseret
Model:	MT-S0601
Type:	PS-transformer
Vægt:	1200 g
Produktfarve:	Black, Blue, Brass, Grey, Red
Antal:	1
