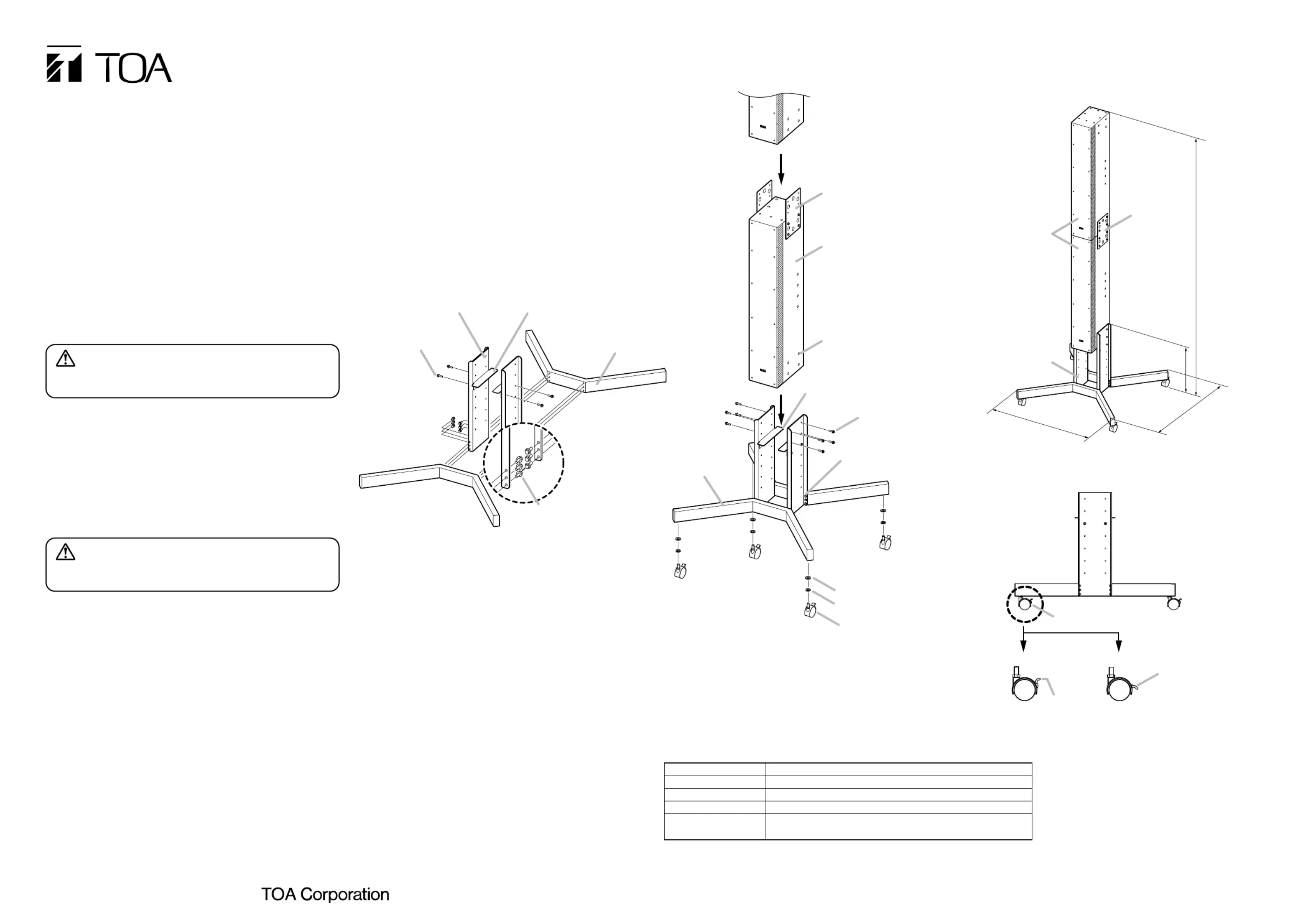

INSTALLATION MANUAL

FLOOR STAND SR-FS4

The SR-FS4 Floor Stand is designed exclusively for use with a

stack of 2 SR-S4L Line Array Speakers.

Mounted on casters with lock, it can be easily moved.

Note

To link 2 SR-S4L speakers, an optional SR-EP4 Extension Plate is

needed.

1. SAFETY PRECAUTIONS

•Before installation or use, be sure to carefully read all the

instructions in this section for correct and safe operation.

•Be sure to follow all the precautionary instructions in this section,

which contain important warnings and/or cautions regarding

safety.

•After reading, keep this manual handy for future reference.

4. SPECIFICATIONS

• Accessories

Caster ................................................................ 4

Plane washer for M10 ........................................ 4

Spring washer for M10 ....................................... 4

Hexagon head bolt M5 x 20 (with washer) ......... 12

Hexagon head bolt M6 x 16 (with washer) ......... 12

• Option

Extension plate: SR-EP4

Note: The design and specifications are subject to change without notice for improvement.

Step 1. Attach the side panels to the stand bases.

Tighten the fixing bolts loosely, not firmly.

Step 2. Mount the speaker support brackets to the side

panels.

Note

The stand height or speaker elevated height can be

adjusted in 5 steps (6 cm per step) by changing the

bracket mounting position. Change the bracket

position as required.

The bracket position in the assembly diagram below

allows the speakers to be elevated highest above the

floor. Normally, mount the brackets at this position.

2. ASSEMBLING THE STAND

•Avoid installing or mounting the unit in unstable locations, such

as on a rickety table or a slanted surface. Doing so may result in

the unit falling down and causing personal injury and/or property

damage.

•Tighten each bolt securely. Ensure that the unit has no loose

joints after installation to prevent accidents that could result in

personal injury.

•Move the unit slowly on a flat floor. Moving it on a slanted or

uneven floor may cause the unit falling down, resulting in

personal injury.

Indicates a potentially hazardous situation which, if mishandled,

could result in death or serious personal injury.

WARNING

Indicates a potentially hazardous situation which, if mishandled, could

result in moderate or minor personal injury, and/or property damage.

CAUTION

•Install the unit only in stable locations, and lock the casters. If it

falls down or moves, this may cause personal injury and/or

property damage.

•Avoid placing the unit and speaker cables in a doorway or other

high traffic area as people may trip on the unit or cables. Doing

otherwise may cause the unit falling down, resulting in personal

injury.

•Do not stand or sit on, nor hang down from the unit as this may

cause it to fall down or drop, resulting in personal injury and/or

property damage.

•Avoid touching the unit's sharp metal edge to prevent injury.

Step 3. Attach the casters to the stand bases.

Step 4. Remove the 8 screws on both sides of the lower

speaker.

Note

The removed screws are not used.

Step 5. Install the lower speaker first.

Put the speaker on the speaker support brackets, then

fix it with the supplied 8 hexagon head bolts.

Step 6. Tighten the bolts loosely screwed in Step 1.

Confirm in advance that the 4 casters do not rattle on

the flat floor.

Step 7. Install the upper speaker.

Join upper and lower speakers together using the

optional SR-EP4 Extension Plate.

Note

For the joint method, refer to the instruction manual

included with the SR-S4L speaker.

Applicable Speaker SR-S4L (to be mounted with 2 speakers linked together)

Finish Steel plate, white, paint

Dimensions 780 (w) x 567 (h) x 772 (d) mm (completely assembled)

Weight 1 kg (including accessories)2

Product Composition Stand base ...... 2, Side panel ...... 2,

Speaker support bracket ...... 2

780

772

1998 2238–

567

Unit: mm

SR-S4L

(optional)

SR-FS4

SR-EP4

(optional)

Side panel

(component of SR-FS4)

Hexagon head

bolt with washer

M5 x 20 (accessory)

Speaker support bracket

(component of SR-FS4)

Stand base

(component of SR-FS4)

Hexagon head bolt with washer

M6 x 16 (accessory)

Caster (accessory)

Plane washer for M10 (accessory)

Spring washer for M10 (accessory)

Hexagon head bolt with

washer M5 x 20 (accessory)

Remove the attached 8 screws.

Tighten all the loose bolts.

Stand base

(component of SR-FS4)

Speaker support bracket

(component of SR-FS4)

SR-S4L (optional)

SR-EP4 (optional)

[Finished assembly diagram]

3. HOW TO LOCK CASTERS

[Caster locked][Caster unlocked]

Lock the caster by

pressing down the

stopper.

Caster

Stopper
