SPEAKER SELECTOR

OPERATING INSTRUCTIONS

SS-9001

Thank you for purchasing TOA's Speaker Selector.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read all the instructions in this section for correct

and safe operation.

• Be sure to follow all the precautionary instructions in this section, which contain important

warnings and/or cautions regarding safety.

• After reading, keep this manual handy for future reference.

Indicates a potentially hazardous situation which, if mishandled,

could result in death or serious personal injury.

WARNING

• External wiring connected to the terminals marked with requires installation by an instructed

person.

2. GENERAL DESCRIPTION

The SS-9001 is a speaker selector used with 9000 series amplifier.

It selectively distributes each of 2 inputs to the same 4 output zones.

3. SPECIFICATIONS

Supplied from the optional AD-246 AC adapter or

an external 24 V DC/200 mA power supply.

120 mA

No-voltage make contact input (polarized), open voltage: 24 V DC,

short-circuit current: 3 mA

Under 240 W (70 V/100 V line)

Removable terminal block (2 pins)

Removable terminal block (10 pins)

–10 to +40°C

Case: Surface-treated steel plate

112 (w) x 197 (h) x 30 (d) mm

530 g

Removable terminal plug (2 pins) x 6, Removable terminal plug (10 pins) x 1,

Cord clamp x 1, Tapping screw (4 x 20) x 4

Power Source

Current Consumption

Control Signal

Control Power

Speaker Terminal

Control Terminal

Operating Temperature

Finish

Dimensions

Weight

Accessories

Note: The design and specifications are subject to change without notice for improvement.

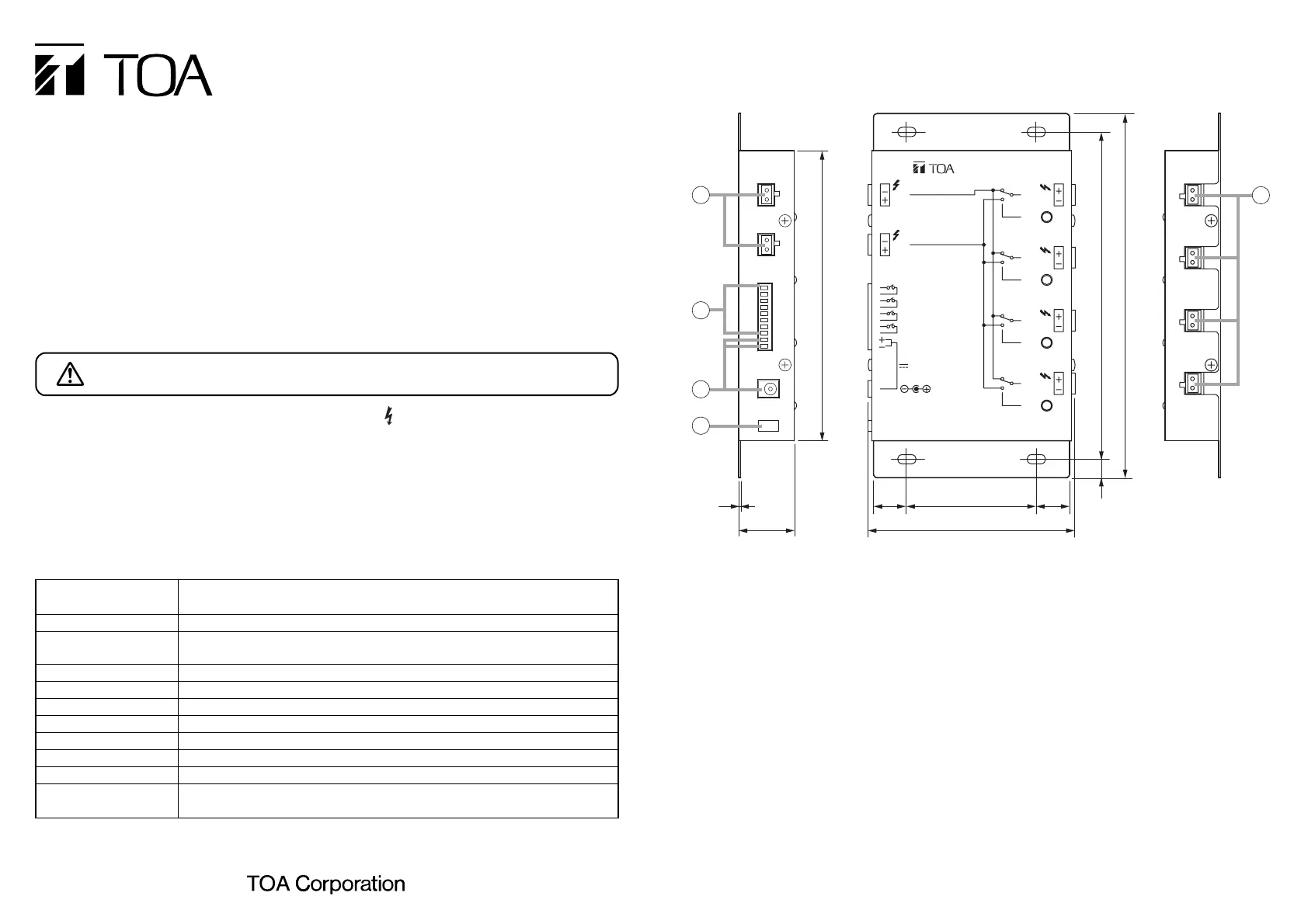

4. NOMENCLATURE AND FUNCTIONS

9000 SERIES

SPEAKER SELECTOR

ZONE 1IN 1

70V/100V MAX. 240W

ZONE 2

ZONE 1

ZONE 4

ZONE 3

CTRL IN

DC IN

24V

120mA

ZONE 4

18 1870

112

157

197

17710

[Left side] [Front] [Right side]

1. Speaker input terminals [IN 1, IN 2]

2-pin removable terminal blocks.

Connect the speaker output (high impedance

line, up to 240 W) from the power amplifier to

each terminal.

Short the IN 2 terminal's pins when only the

IN 1 terminal is used.

2. Control input terminal [CTRL IN]

8 pins in the 10-pin removable terminal block.

Receives the control signals (polarized non-

voltage contacts) from the ZP-001T when the

9000 series amplifier is in the Matrix "Sub-

Mode" (single output or BGM/PAGE), and

activates the inner relays.

This terminal can also receive control signals

from the control output terminals of the 9000

series amplifier or C-001T Control I/O

Expansion Module. (For details, refer to the

9000 series amplifier's instruction manual.)

3. DC power input terminals [DC IN]

Requires the power input of 24 V DC.

DC input terminal or 2 pins in the 10-pin

removable terminal block.

Connect the power source that can supply

200 mA or more to this terminal.

The optional AD-246 AC Adapter can be

used for the power supply.

4. Cord clamp

Fixes the AC adapter's power cord.

5. Speaker output terminals [ZONE 1/2/3/4]

2-pin removable terminal blocks.

Connect speakers to each terminal, which is

capable of delivering 240 W output on a line.

Unit: mm

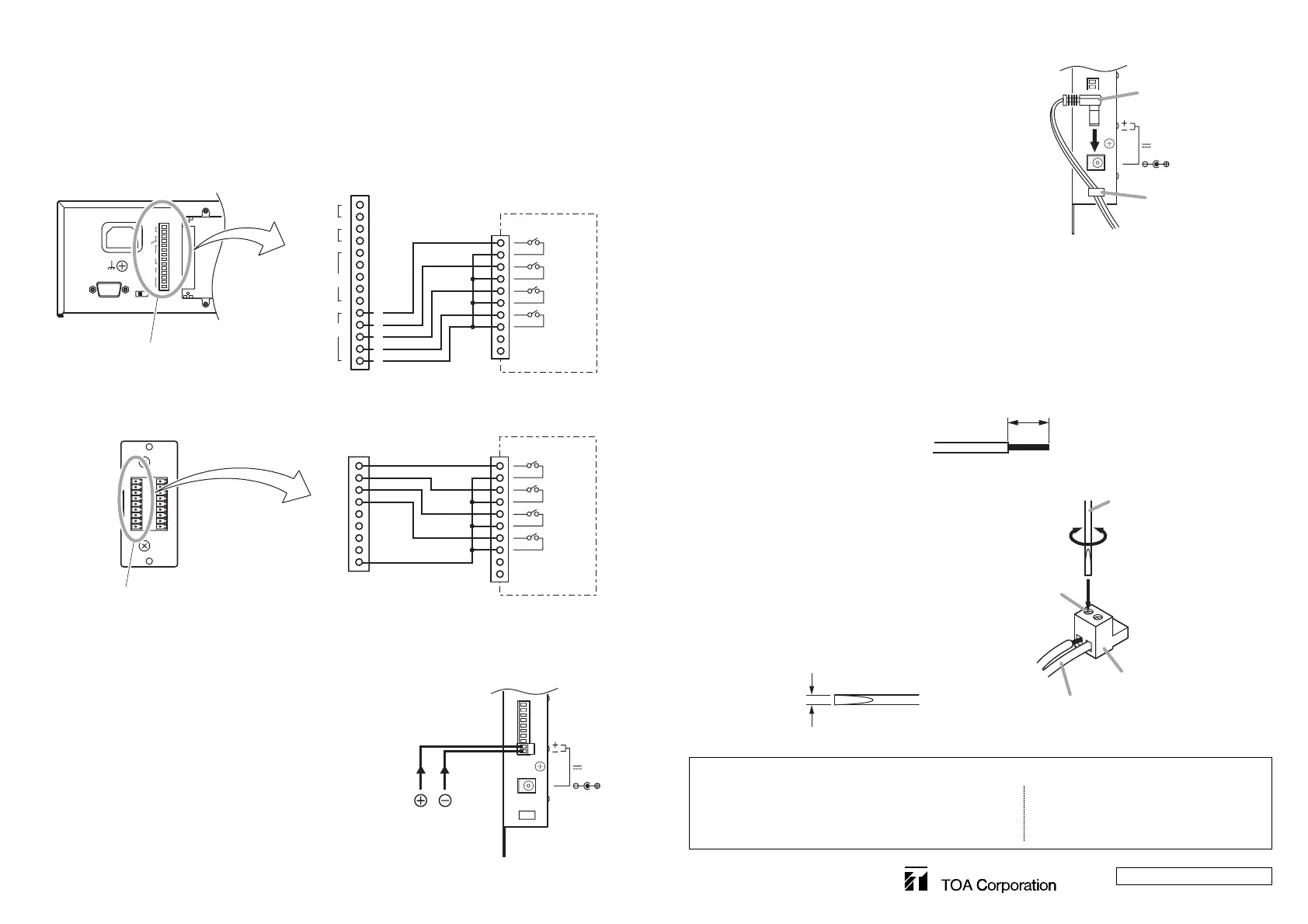

6. POWER SOURCE CONNECTIONS

6.1. When Using a 24 V DC Power Source

Connect a 24V DC power source to the SS-9001's DC

power input terminal shown at right.

Notes

• The DC power supply unit should be capable of

supplying 200 mA or more.

• The DC power fed to this terminal should be from

21.6 to 26.4 V.

If the input voltage exceeds this range, the SS-9001

may malfunction or fail.

5. CONNECTIONS

DC IN

24V

120mA

[Left side]

From 24 V DC

power source

6.2.When Using the Optional AC Adapter

Connect the optional AD-246 AC Adapter to

the SS-9001's DC power input terminal shown

at right.

Pinch the adapter cord with the cord clamp to

securely fix the cord.

DC IN

24V

120mA

AC adapter (optional)

Cord clamp

[Left side]

7. REMOVABLE TERMINAL PLUG CONNECTION

Be sure to use the supplied removable terminal plugs for connections to the removable terminal

blocks.

Caution

Avoid soldering stranded cable, as contact resistance may increase when the cable is tightened and

the solder is crushed, possibly resulting in an excessive rise in joint temperatures.

[Cable end treatment]

7 mm

Solid or stranded cable

[Connector connection]

Step 1. Loosen the terminal screw, then

insert the cable.

Step 2. Loosen the terminal screw, then

insert the cable.

(Pull on the cable to ensure it is

securely connected.)

Tip

Recommended slotted screwdriver type:

Screwdriver with 3 mm blade width

Tightens Loosens

Terminal screw

Slotted screwdriver

Cable

Removable terminal plug

(accessory)

Bit shape 3 mm

133-05-400-4A

URL: http://www.toa.jp/

VOL2

REMT

VOL1

REMT

OUT

I/O

CTRL

VOL2

REMT

VOL1

REMT

OUT

I/O

CTRL

SS-9001

9000 Series amplifier

ZONE 1

CTRL IN

ZONE 2

ZONE 3

ZONE 4

Control-I/O connection terminal

5.1. Connecting the 9000 Series Amplifier

5.2. Connecting the C-001T Module

The control input terminals of SS-9001 are polarized non-voltage contact inputs.

With the output terminal setting in the 9000 series amplifier, the SS-9001's internal relays can be

activated. Make necessary connections depending on applications.

OUT IN

C-001T

Control output terminal

SS-9001

C-001T module

ZONE 1

CTRL IN

OUT

ZONE 2

ZONE 3

ZONE 4

Traceability Information for Europe (EMC directive 2004/108/EC)

Manufacturer:

TOA Corporation

7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo,

Japan

Authorized representative:

TOA Electronics Europe GmbH

Suederstrasse 282, 20537 Hamburg,

Germany
