INSTRUCTION MANUAL

STANDARD MICROPHONE UNIT

LONG MICROPHONE UNIT

TS-923

TS-924

Thank you for purchasing TOA’s Standard microphone unit or Long microphone unit.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. GENERAL DESCRIPTION

TOA’s TS-923 and TS-924 Microphones are dedicated

components of the Infrared Conference System’s Chairman

Unit and Delegate Unit. Their mic heads are equipped with

illuminated display rings that allow the status of the units

in use to be monitored at a glance. Their goosenecks

have two exible parts, making it possible to adjust the

microphones to an optimal position for the user.

2. INSTALLATION

URL: https://www.toa.jp/

133-07-00135-01

Traceability Information for Europe

Manufacturer:

TOA Corporation

7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo, Japan

Authorized representative:

TOA Electronics Europe GmbH

Suederstrasse 282, 20537 Hamburg, Germany

3. SPECIFICATIONS

Model No. TS-923 TS-924

Type Electret condenser microphone

Directivity Unidirectional

Rated Impedance 1.4 kΩ

Rated Sensitivity –37 dB (1 kHz, 0 dB = 1 V/Pa)

LED Indicator Speech indicator (ring type) Red

Frequency Response 100 Hz – 13 kHz

Output Connector Combined type of XLR-4-32

Flexible Part 2 parts

Operating Temperature 0 ºC to 40 ºC (32 ºF to 104 ºF)

Operating Humidity 90 %RH or less (no condensation)

Finish Body: Aluminum, black, semi-gloss, paint

Shaft: Copper alloy, black, semi-gloss, paint

Length 470 mm (1.54 ft) 620 mm (2.03 ft)

Weight 130 g (0.29 lb) 150 g (0.33 lb)

Applicable Unit (option) Chairman unit: TS-821, TS-921, TS-811, TS-911

Delegate unit: TS-822, TS-922, TS-812, TS-912

Note: The design and specications are subject to change without notice for improvement.

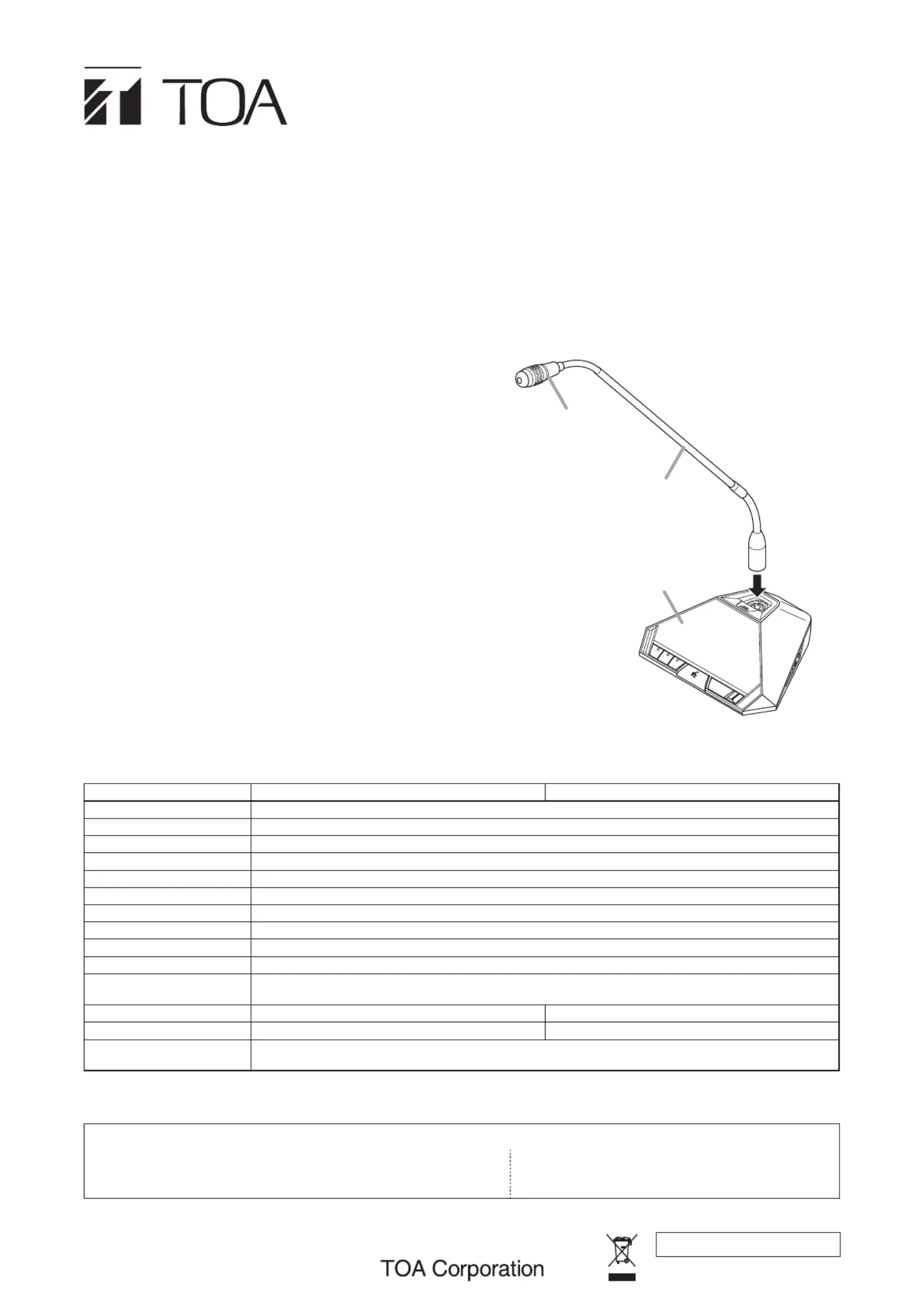

Chairman unit

(TS-821/921/811/911) or

Delegate unit

(TS-822/922/812/912)

Microphone

(TS-923/924)

Microphone

in-use indicator

Produkt Specifikationer

Mærke:	TOA
Kategori:	Ikke kategoriseret
Model:	TS-924
Type:	Konferencemikrofon
Højde:	620 mm
Produktfarve:	Sort
Relativ luftfugtighed ved drift (H-H):	0 - 90 %
Driftstemperatur (T-T):	0 - 40 °C
Husmateriale:	Aluminium
Forbindelsesteknologi:	Ledningsført
Diameter:	19 mm
Mikrofonindgangsimpedans:	1400 ohm (Ω)
Mikrofon frekvens:	100 - 13000 Hz
Mikrofonretningstype:	Envejs
Mikrofon sensitivitet:	-37 dB
Mikrofon vægt:	150 g
Kompatible produkter:	Chairman unit: TS-821, TS-921, TS-811, TS-911\nDelegate unit: TS-822, TS-922, TS-812, TS-912
