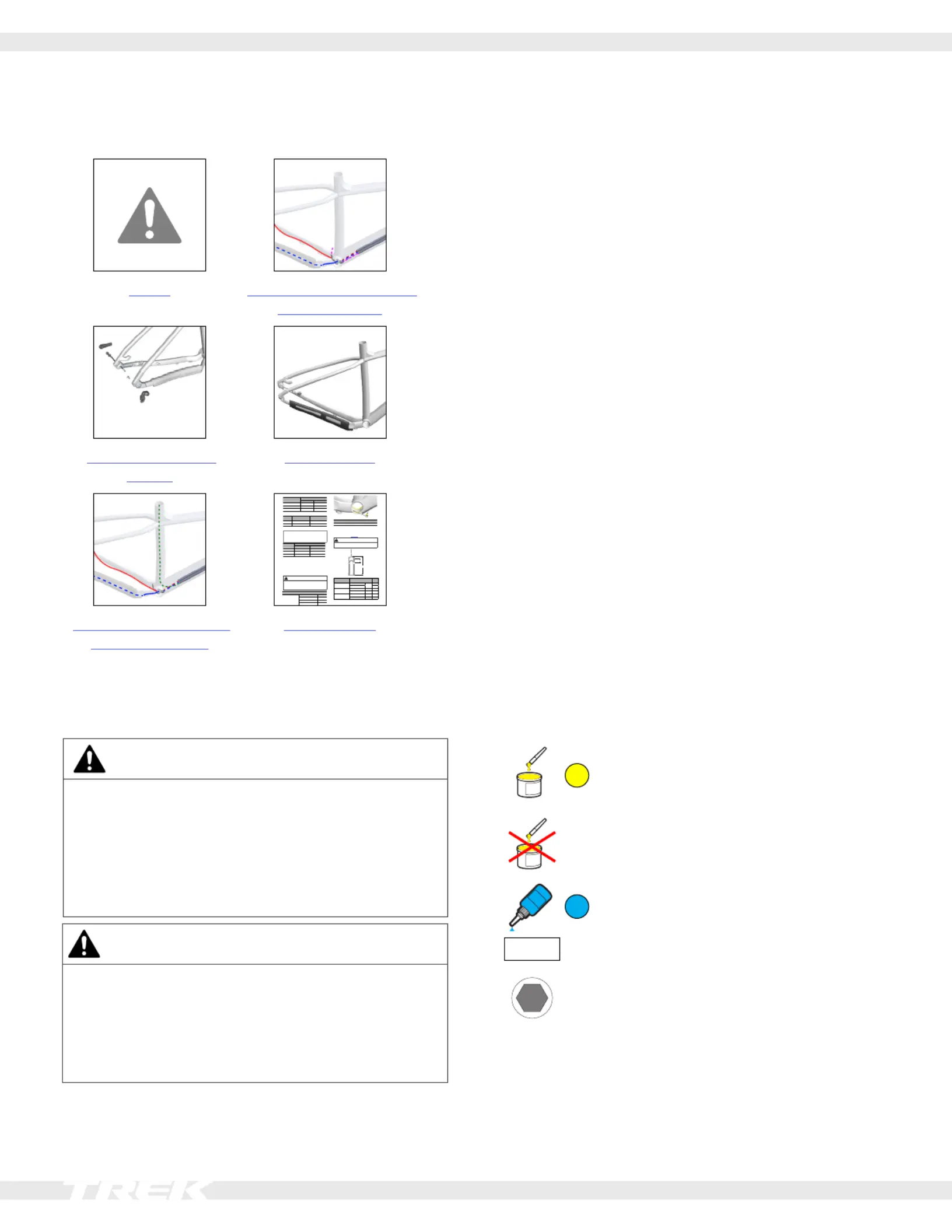

2023 MARLIN 6, 7, 8

SERVICE MANUAL

Rev 3 October 2023

2023 Marlin 6, 7, 8

Safety

WARNING

Tighten hardware properly

Always tighten hardware to the specied torque.

Over-tightening hardware could deform or break the

hardware or components. Under-tightening hardware

could cause hardware or components to become loose.

Either situation could damage the bicycle and result in

injury to the rider.

WARNING

Re-apply threadlocker

All reused-fasteners with a pre-applied threadlocker

must be cleaned with isopropyl alcohol and have new

threadlocker applied before re-assembly. If a threadlock-

er is not applied, the fasteners may loosen, which could

damage the bicycle and result in injury to the rider.

Legend

Apply grease

Do not apply grease

Apply threadlocker

Torque

Hex tool





Zip tie

Contents

Safety Cabling – front derailleur,

no dropper post

Rear derailleur and

skewer

Frame guards

Chainline and chainring

Chainline Chainring

Min Max

1X, 49mm 32T22T

1X, 52mm 34T22T

2X, 49mm 36T22T

Rear brake mount

Frame

size

Minimum

(direct mount)

Maximum

(with adapter)

XXS 160mm 160mm

XS – XXL 160mm 180mm

Maximum tire size

Notice: Measurements of actual tires may vary. Always

verify there is sufcient clearance between the tire and

the frame. Improper tire size could damage the bicycle

frame. Trek recommends 6mm clearance above and on

the sides of the tire.

Frame size Maximum tire

1X 2X (rear tire)**

XXS* 27.5" x 2.4" 27.5" x 2.2"

XS – SM 27.5" x 2.4" 27.5" x 2.2"

M – XXL 29" x 2.4" 29" x 2.4"

* While the frame is compatible with 27.5” wheels, you’ll

also need a 27.5” compatible fork. The stock MY23 XXS

Marlin 7 and 8 forks are compatible with both 26” and

27.5” wheels. The stock fork on the MY23 XXS Marlin 6,

however, is only 26” compatible.

** Front derailleur reduces the maximum width of the

rear tire

Seat post

WARNING

Always follow the seatpost manufacturer’s minimum

insertion recommendation. Failure to follow the recom-

mendation could cause damage to the seatpost and

result in injury to the rider.

Measurement

Maximum insertion XXS – SM 200mm

MD 216mm

ML – XL 240mm

XXL 245mm

Seat t be inside diameter 31 6mm

Bottom Bracket

BSA 73 (threaded)

Fork

Note: The original equipment fork can be upgraded to a

fork with a tapered steerer, but this also requires a new

head set, part number .5304967

WARNING

Exceeding the recommended maximum fork length could

damage the bicycle and result in injury to the rider.

Travel

Axle to Crown

Frame size Axle to Race

(mm)

Travel

(mm)

XXS Recommended

478

Maximum 100

XS – SM Recommended 510 100

Maximum 523* 120

MD, ML, L, XL, XXL Recommended 512 100

Maximum* 540 120

*With 120 mm travel fork and external 13mm cap

Refer to the suspension setup card included with your bike

or the suspension calculator at

Cabling – dropper post,

no front derailleur

Specications

Produkt Specifikationer

Mærke:	Trek
Kategori:	Cykel
Model:	Marlin 8 Gen 3
